QSK12
QSK 12 Sensor Head for 12 Standard 14 mm quartzes - integrated stepper motor with reference position - internal mount unit - ISO16KF utility flange on the side for water, RF-signal, stepper motor, reference position - water:2x 6x4 mm PU hose; length 1,5m - RF-Signal: RG316 cable with microdot female 1,2m; internal SMA - reference position: 3 wire cable 1,5m - motor: 4 pin cable; 1,5 m - housing diameter: 102 mm - height: 72 mm - quartz retainer 92 mm incl. 12 AT cut gold quartzes
Single Sensor
Single Sensor 2x 1/8 in cooling water lines Vacuum: Microdot Atmosphere: BNC
Single Sensor
Single Sensor 2x 3/16" cooling lines Microdot connector
Crystal Holder including spring
Crystal Holder including spring

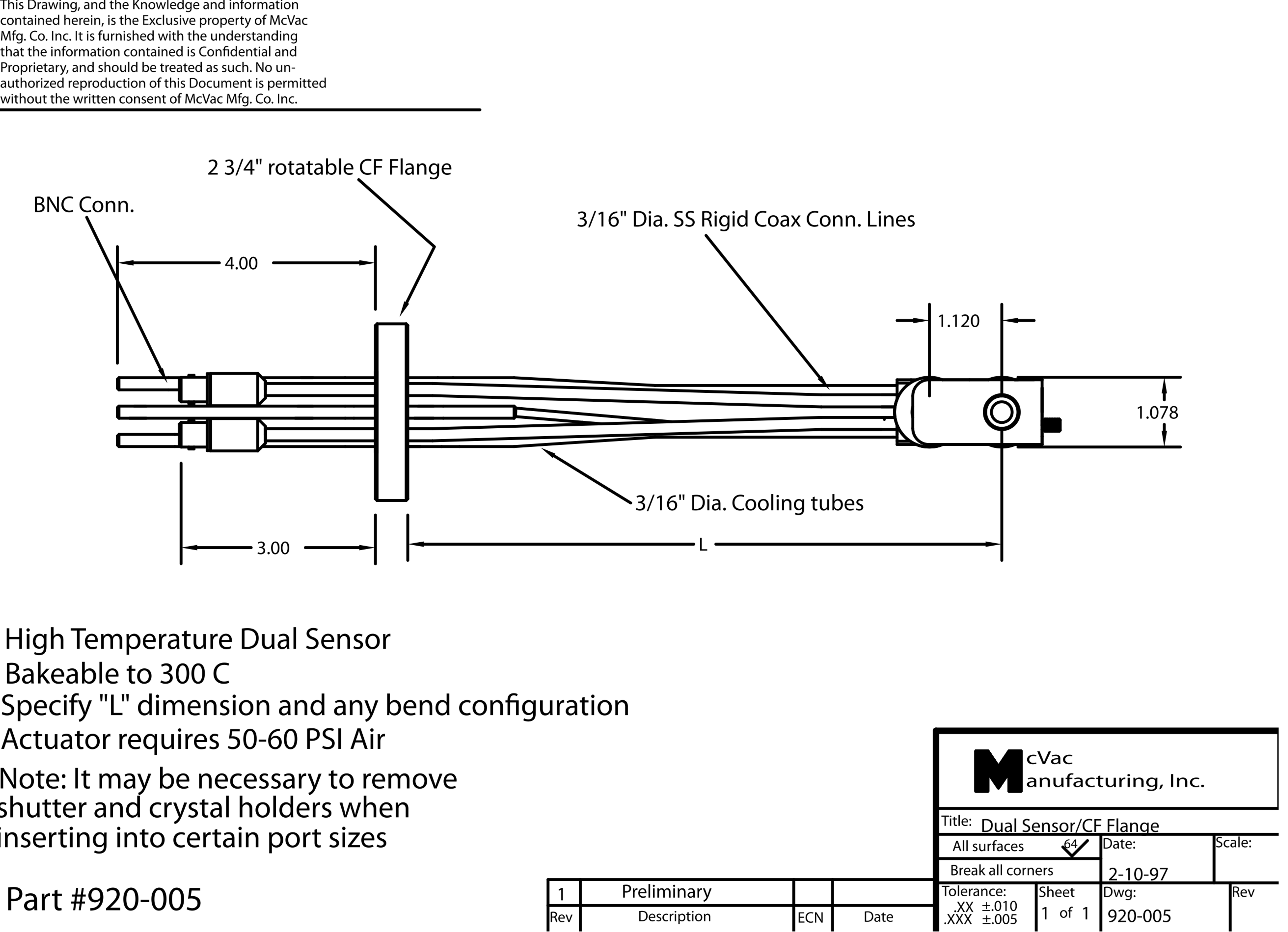

Dual sensor, shuttered
Dual sensor, shuttered 2x 3/16" cooling lines 1x 1/8" Air line 2x microdot connectors
Dual Sensor with Shutter
Dual Sensor with Shutter 2x 2x 1/8" cooling lines with 1/8" VCR fittings 1x 1/8" air line with 1/8" VCR Fitting
Single Sensor with Shutter
Single Sensor with Shutter 2x 1/8" cooling lines; 1/8" air line
Crystal Cover Spring (Gold Finger Spring)
Crystal Cover Spring (Gold Finger Spring)
Contact Spring, center, right angle
Contact Spring, center, right angle
Shutter package for Single Sensor
Shutter package for Single Sensor for single sensor including 1/8" tube
Right Angle Sensor with 1/8 in. O.D. Cooling Tube
Right Angle Sensor with 1/8" O.D. Cooling Tubes length 30"; crystal parallel to flange
Right Angle Sensor
Right Angle Sensor with 3/16" o.d. cooling tubes
Sensor Repair Kit
Sensor Repair Kit containing - nut, stainless steel - washer, stainless steel - insulator, thin - insulator, thick - contact spring - screw, stainless steel - crystal holder spring - lock washer, stainless steel
Single Sputter Sensor with Shutter
Single Sputter Sensor with Shutter Sputtering head 2x 1/4" cooling lines with mVCR 1x 1/8" air line Microdot
Single Sensor Head, flat, compact, non-cooled
Single Sensor Head, flat, compact, non-cooled
Sensor Head
Sensor Head 2 x Fluid 3/16 in diameter BNC-connector on atmosphere; microdot in vacuum including in-vacuum cable Length flange-sensor, welded: customer specified

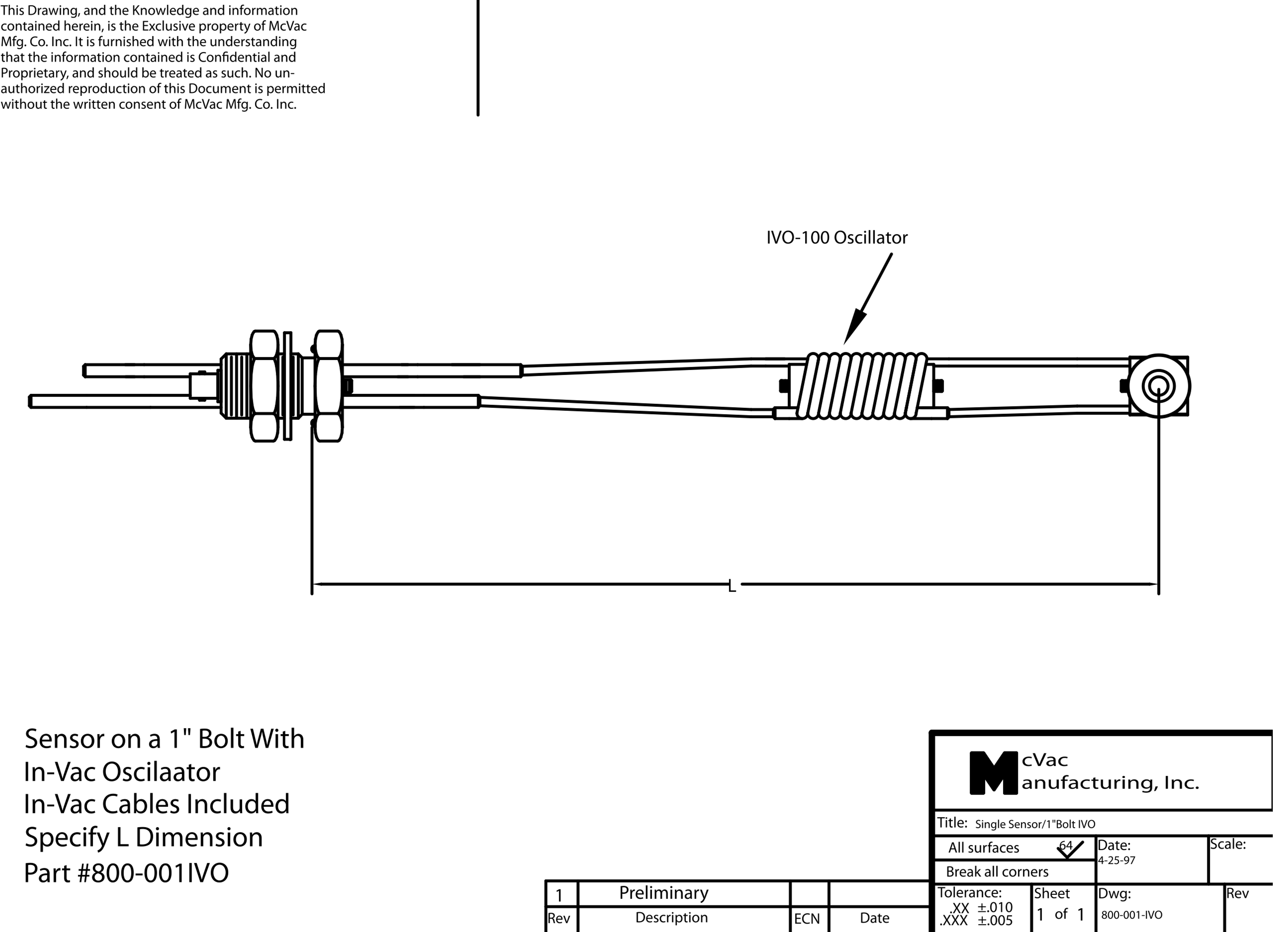

Oscillator Sensor on a 1 in.
Oscillator Sensor on a 1 " Bolt with integrated in-vacuum oscillator 2 x Fluid 3/16" dia.; BNC-connector on atm; microdot in vac Length flange-sensor: customer specified
Standard Single Sensor with Shutter
Standard Single Sensor with Shutter 2 x ø 3/16 in cooling lines BNC-connector on atmosphere; microdot in vacuum length flange-sensor: customer specified

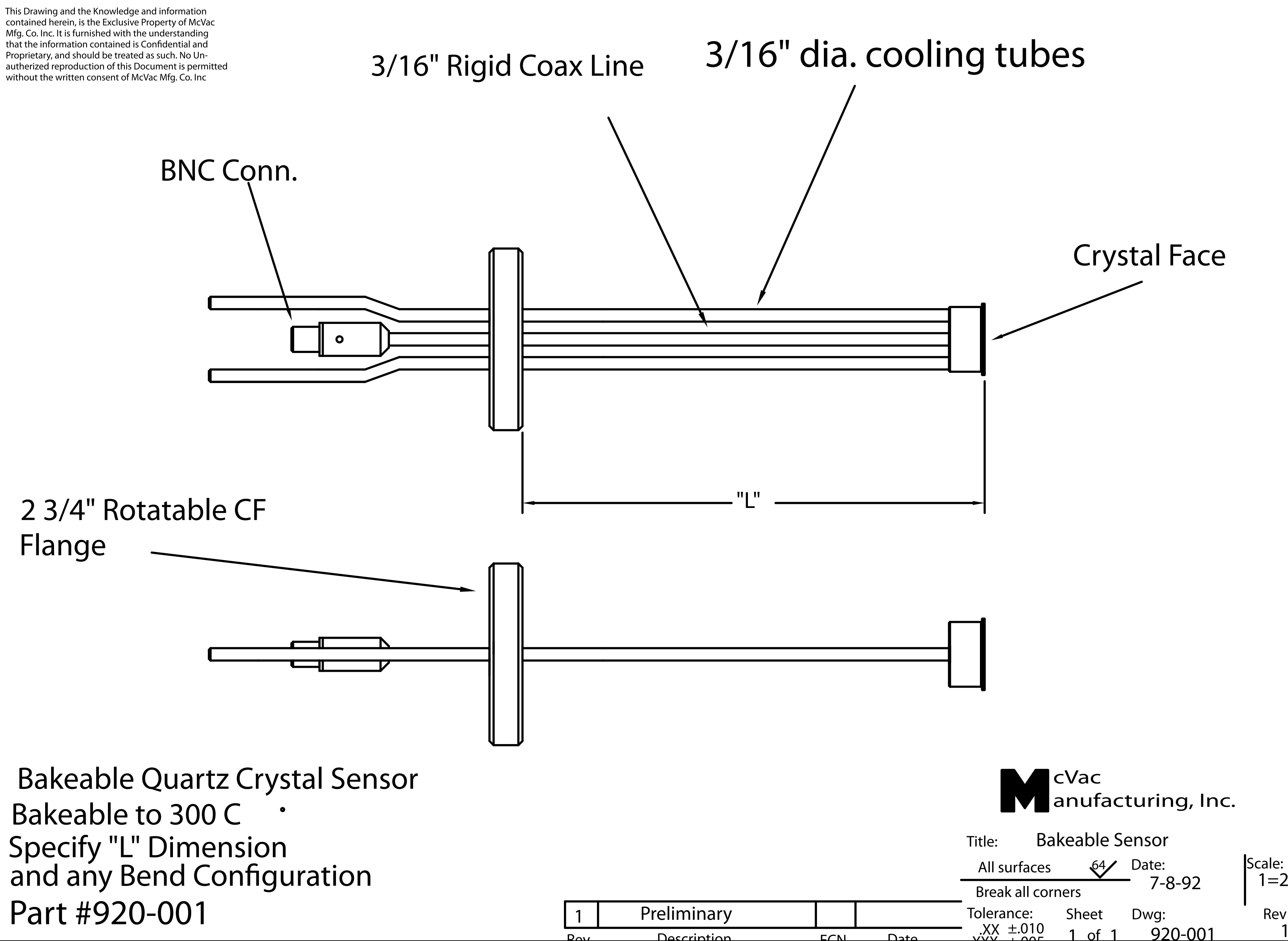

UHV Single Sensor Head on CF40 (2 3/4 in)
UHV Single Sensor Head on CF40 (2 3/4 in) 2x Fluid 3/16 in tube diameter BNC-connector on atmosphre and Microdot in vacuumincluding in-vacuum cable Microdot-Microdot Length flange-sensor: customer specified

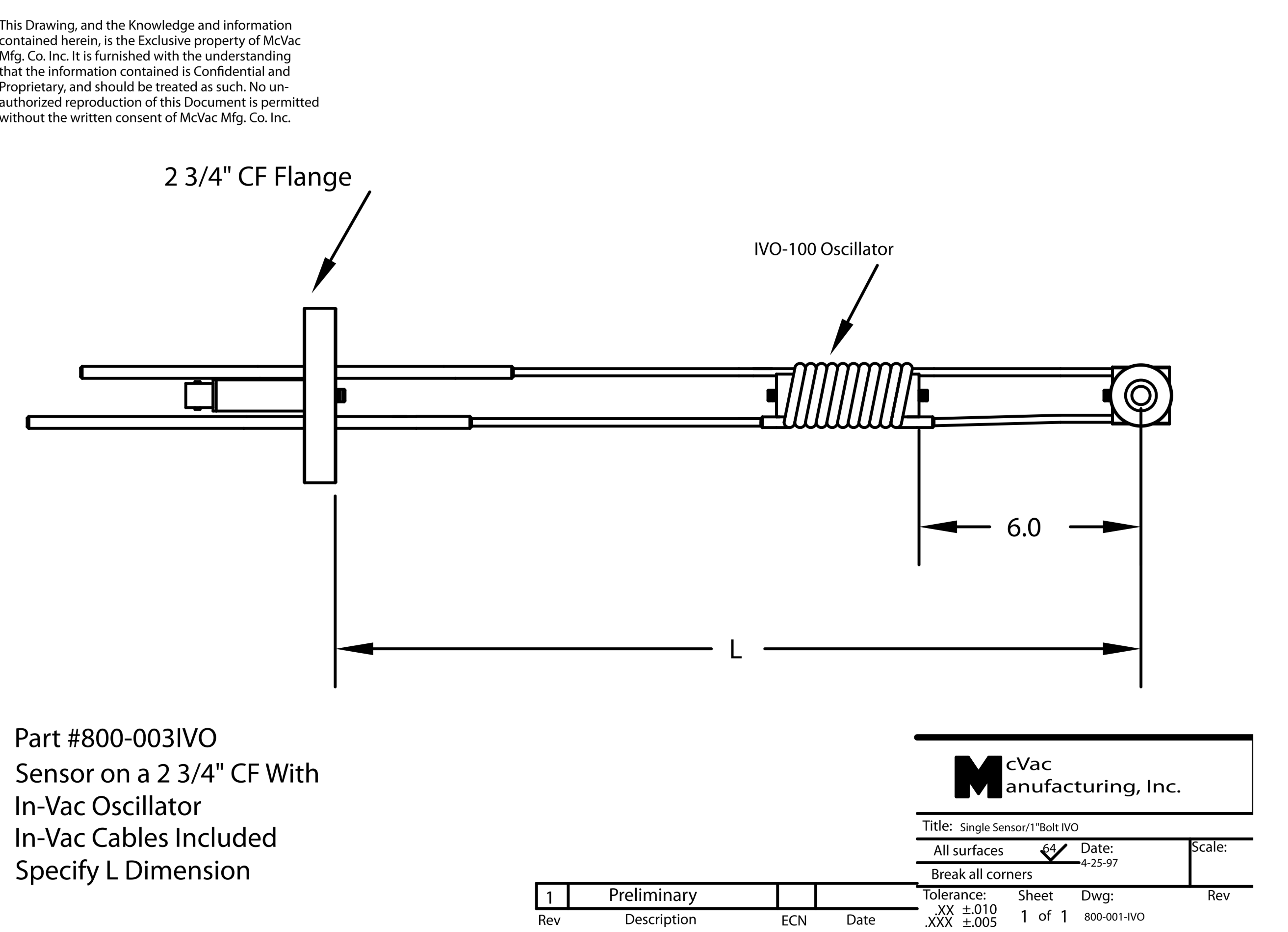

Oscillator Sensor on a 2 3/4 in. CF
Oscillator Sensor on a 2 3/4" CF 2 x Fluid 3/16" dia.; BNC-connector on atm; microdot in vac Length flange-sensor: customer specified

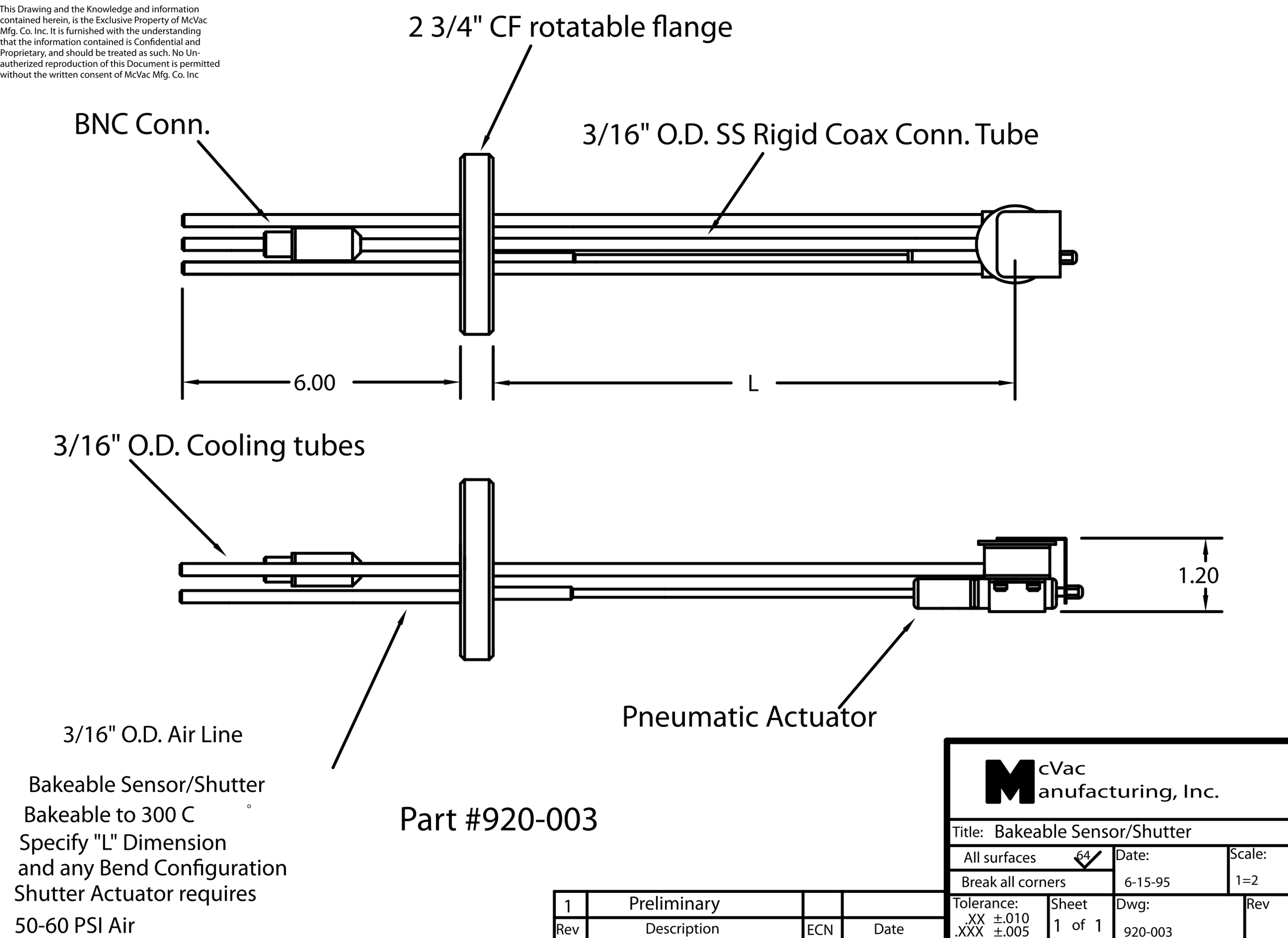

UHV Sensor Head on CF40 with Shutter
UHV Sensor Head on CF40 with Shutter 2 x Fluid 3/16" dia.; 1x 3/16" air BNC-connector on atm; microdot in vac Length flange-sensor: customer specified including in-vacuum cable
