Single Sensor
Single Sensornot cooled, Microdot connection on backside
Sensor Head
Sensor Head2 x Fluid 3/16 in diameterBNC-connector on atmosphere; microdot in vacuumincluding in-vacuum cableLength flange-sensor, welded: customer specified

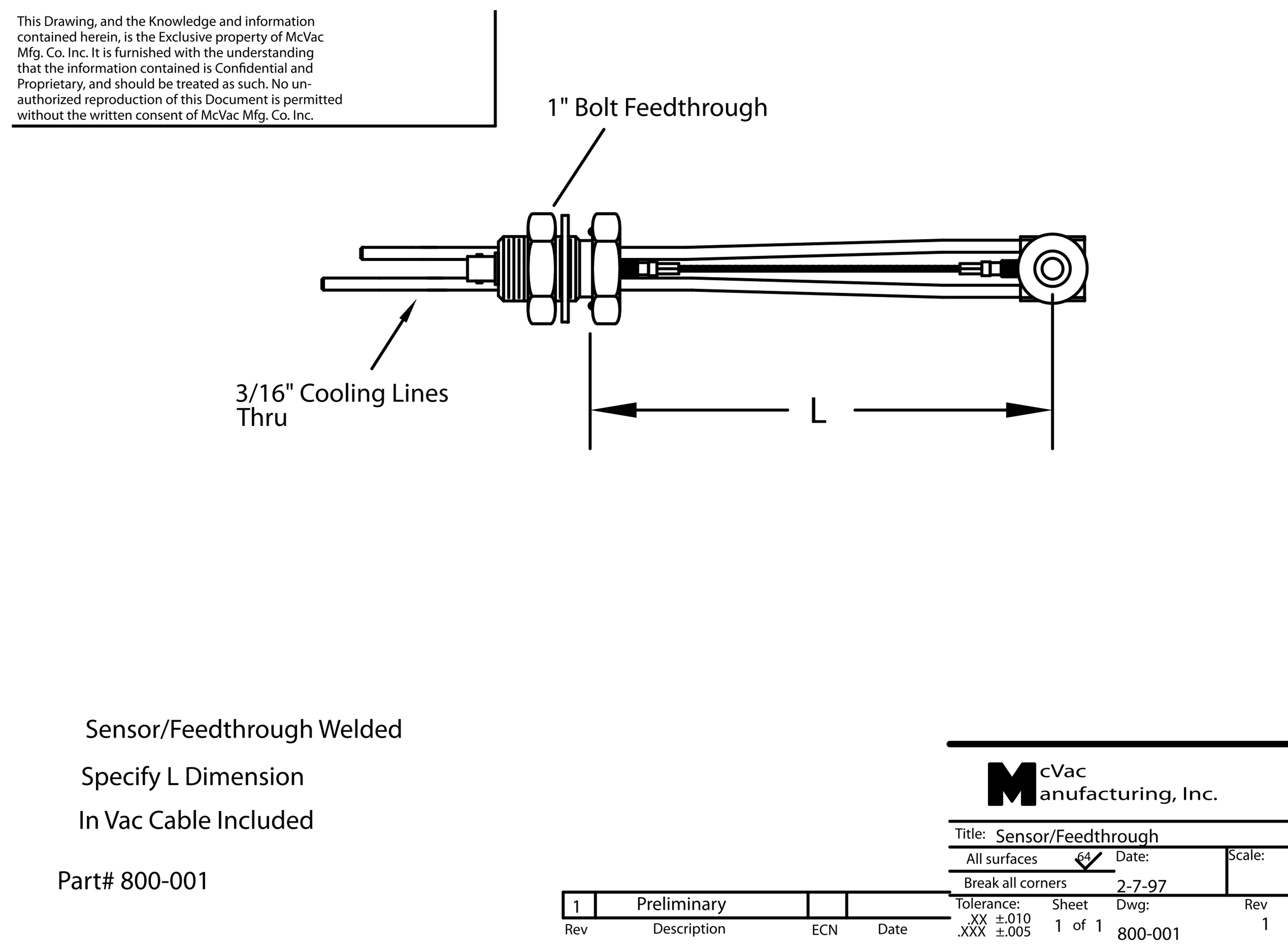

Oscillator Sensor on a 1 in.
Oscillator Sensor on a 1 " Bolt with integrated in-vacuum oscillator2 x Fluid 3/16" dia.;BNC-connector on atm; microdot in vacLength flange-sensor: customer specified
Standard Single Sensor with Shutter
Standard Single Sensor with Shutter2 x ø 3/16 in cooling linesBNC-connector on atmosphere; microdot in vacuumlength flange-sensor: customer specified
UHV Single Sensor Head on CF40 (2 3/4 in)
UHV Single Sensor Head on CF40 (2 3/4 in)2x Fluid 3/16 in tube diameterBNC-connector on atmosphre and Microdot in vacuumincluding in-vacuum cable Microdot-MicrodotLength flange-sensor: customer specified
Oscillator Sensor on a 2 3/4 in. CF
Oscillator Sensor on a 2 3/4" CF2 x Fluid 3/16" dia.;BNC-connector on atm; microdot in vacLength flange-sensor: customer specified
UHV Sensor Head on CF40 with Shutter
UHV Sensor Head on CF40 with Shutter2 x Fluid 3/16" dia.; 1x 3/16" airBNC-connector on atm; microdot in vacLength flange-sensor: customer specifiedincluding in-vacuum cable
Single Sensor Head on KF40 with Shutter
Single Sensor Head on KF40 with Shutter2 x Fluid 3/16" dia.;BNC-connector on atm; microdot in vacLength flange-sensor: customer specifiedSputtering sensor head
Dual Sensor/Shutter, 1 in Bolt Feedthrough
Dual Sensor/Shutter 1" Bolt Feedthrough
Dual Sensor with shutter
Dual Sensor with shutter
UHV Dual Sensor Head on CF40 with Shutter
UHV Dual Sensor Head on CF40 with Shutter2 x Fluid 3/16" dia.;1x air 3/16"2x BNC-connector on atm; 2x microdot in vacLength flange-sensor: customer specifiedin-vacuum cable included
Right Angle Single Sensor on 1 in. feedthrough
Right Angle Single Sensor on 1" feedthrough2 x Fluid 3/16" dia.;BNC on atm; microdot in vacLength flange-sensor: customer specified
Right Angle Single Sensor on 2 3/4 in. CF
Right Angle Single Sensor on 2 3/4" CF2 x Fluid 3/16" dia.;BNC connector on atm; microdot in vacLength flange-sensor: customer specified
Single sensor with 1/8 in coiled tubes
Single sensor with 1/8 in coiled tubes2 x fluid 1/8 in diameter - coiledBNC-connector on atmosphere; microdot in vacuumLength flange-sensor: customer specified

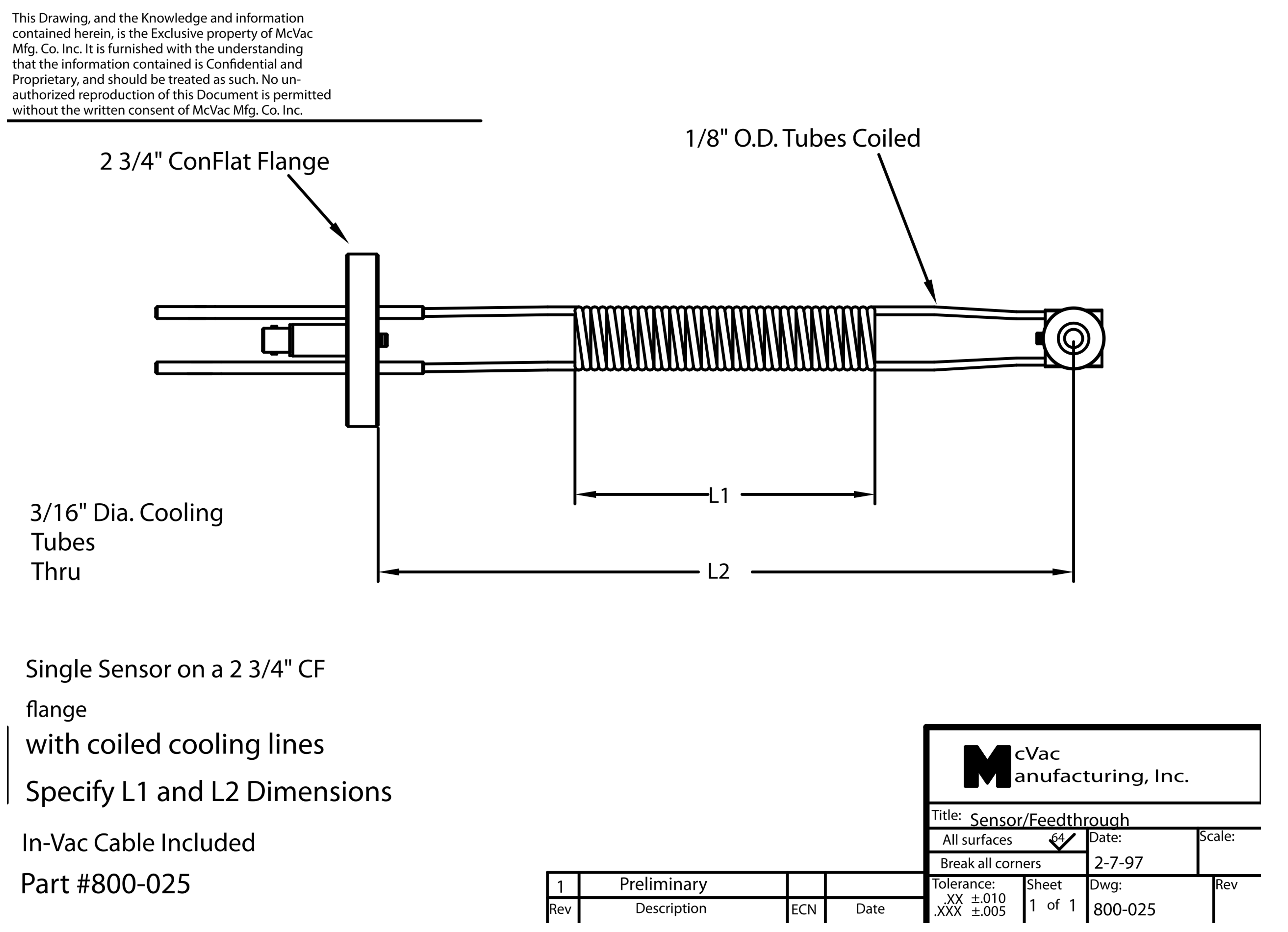

Single sensor with 1/8 in. coiled tubes
Single Sensor on a 2x 3/4" CF flangewith coiled cooling lines, microdot in vacLength flange-sensor: customer specified
Standard Single Sensor - KF40 Flange
Standard Single Sensor - KF40 Flange2 x Fluid 3/16 in.diameterlength (flange-sensor): customizedincluding in-vacuum cableconnection: BNC on atmosphere; Microdot in vacuum
Single Sensor Head on KF40 with Shutter
Single Sensor Head on KF40 with invers Shutter2 x Fluid 6mm; Air 6 mm;BNC-connector on atm; microdot in vacLength flange-sensor: customer specifiedSputtering sensor head
Right Angle Single Sensor/NW-40 Flange
Right Angle Single Sensor/NW-40 Flange2x 3/16" fluid tubeBNC-connector on atmosphere; microdot in vacuumLength flange-sensor: customer specified
Right Angle Single Sensor/NW-50 Flange
Right Angle Single Sensor/NW-50 Flange2 x Fluid 3/16" dia.;BNC-connector on atm; microdot in vacLength flange-sensor: customer specified
Right Angle Single Sensor/NW-50 Flange
Right Angle Single Sensor/NW-50 Flange2 x Fluid 3/16" dia.;BNC-connector on atm; microdot in vacLength flange-sensor: customer specified
Bakeable Sensor Head on CF40
Bakeable Sensor Head on CF402x Fluid 3/16 in diameter; 1x electrical 3/16 inright angle sensorwelded to customized length (please indicate length)
Bakeable Sensor Head on KF40
Bakeable Sensor Head on KF40, ALDright angle sensor2 x Fluid 3/16" dia.; 1x electrical 3/16" with embedded RF cableBNC connector on atmosphereadditional 1/8" purge gas line for sensor body; 3/8" tube OD on ATMwelded to customized length (please indicate length)
Bakeable Sensor Head on CF40
Bakeable Sensor Head on CF402 x Fluid 3/16 in dia.; 1x electrical 3/16 incustomized length and bending possible
CF40 Sensor Head feedthrough with embedded in vac cable
CF40 Sensor Head feedthrough with embedded in vac cable2 x Fluid 3/16 in dia.; 1x electrical 3/16 inin vacuum length 153 mm
