Liner Graphite, 20 cm³

Liner Graphite, 20 cm³
Quantity Unit price
To 4 €130.00 *
From 5 €80.00 *
From 10 €60.00 *

Prices plus VAT plus shipping costs

Delivery time 21 Workdays

  • Order number: 21020-GR
Description
Description
Liner Graphite, 20 cm³ Top Diameter: 42,5 mm... more
Close menu
Product information "Liner Graphite, 20 cm³"

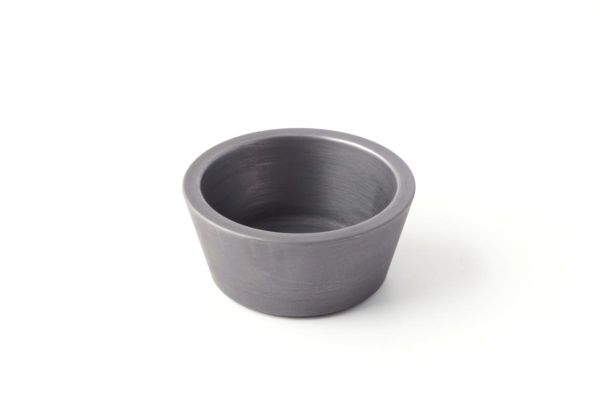

Liner Graphite, 20 cm³

Top Diameter: 42,5 mm

Height: 19,5 mm

Wall Thickness: 2,36 mm


Outer Volume: 16-25 cc
Material: Graphite
