Vacuum Measurement

In this category you will find a selection of vacuum gauges and controllers from our partner Instrutech Inc. InstruTech offers a complete range of vacuum sensors and gauges. These include Pirani gauges with convection compensation, hot cathode ionization gauges based on the Bayard-Alpert principle and double-inverted cold cathode ionization vacuum gauges in both passive and active designs with integrated controllers, as well as full-range gauges from atmospheric to high vacuum ranges.

B-RAX™ 3200 Multi-Gauge Controller

Product number: IT-B-RAX-3200

B-RAX™ 3200 Multi-Gauge ControllerB-RAX3200 operates one IGM400 hot cathodeor one CCM500 cold cathode ionization gaugeand two CVG101 Worker Bee convection gauges.3 pressure display channels, 6 set-point relays,3 analog outputs, Digital I/O, RS232/RS485powered by 24 Vdc.User programmable in Torr, mbar or Pa.

€1,460.00

B-RAX™ 3300 Multi-Gauge Controller

Product number: IT-B-RAX-3300

B-RAX™ 3300 Multi-Gauge ControllerB-RAX3300 operates one BA602/603 hot cathode ionization gaugeand two CVG101 Worker Bee convection gauges.3 pressure display channels, 6 set-point relays,3 analog outputs, Digital I/O, RS232/RS485powered by 24 Vdc.User programmable in Torr, mbar or Pa.

€2,355.00

B-RAX™ 3400 Multi-Gauge Controller

Product number: IT-B-RAX-3400

B-RAX™ 3400 Multi-Gauge ControllerB-RAX 3400 operates one BA601 nude UHV EB=-degas Bayard-Alpert hot cathode ionization gauge and two CVG101 Worker Bee convectiongauges.3 pressure display channels, 6 set-point relays,3 analog outputs, Digital I/O, RS232/RS485powered by 24 Vdc.User programmable in Torr, mbar or Pa.

€2,385.00

BA601 UHV Nude Hot Cathode Bayard-Alpert IG

Product number: IT-BA601DT

BA601 UHV Nude Hot Cathode Bayard-Alpert Ionization Vacuum GaugeElectron Bombardment (EB) degas designDual tungsten filament2 3/4 in. Conflat• 2.00E-11 to 1.00E-03 Torr measurement range

€700.00

BA601 UHV Nude Hot Cathode Bayard-Alpert IG

Product number: IT-BA601DY

BA601 UHV Nude Hot Cathode Bayard-Alpert Ionization Vacuum GaugeElectron Bombardment (EB) degas designDual yttria coated iridium filament2 3/4 in. Conflat• 2.00E-11 to 1.00E-03 Torr measurement range

€760.00

BA602 nude I2R Hot Cathode Bayard-Alpert IG

Product number: IT-BA602DY

BA602 Nude Hot Cathode Bayard-Alpert Ionization Vacuum GaugeResistive degas (I2R) design• 4.00E-10 to 1.00E-03 Torr measurement range

€830.00

CVG101GA Worker Bee™

Product number: IT-CVG101GA

CVG101GB Worker Bee™ Convection-Enhanced Pirani GaugePassive gauge with convection enhancementFitting: _x0009__x0009__x0009_Combination 1/8 in. NPT male - 1/2 in. tubeMeasurement range:_x0009_0.01...1.33E+5 Pa | 1E-4...1333 mbar | 1E-4...1000 TorrElectrical connectors: _x0009_special plug connectorDisplay and control units:_x0009_B-RAX™ 3200, B-RAX™ 3300, FlexRax™ 4000, VGC301, GP 275, GP 307, GP 350, GP 370Compatible with Granville-Phillips® Series 275 Controllers and SensorsEquivalent Convectron® P/N:_x0009_275071

€214.00

CVG101GB Worker Bee™

Product number: IT-CVG101GB

CVG101GB Worker Bee™ (KF16) Convection-Enhanced Pirani GaugePassive gauge with convection enhancementFitting: _x0009__x0009__x0009_DN16KFMeasurement range:_x0009_0.01...1.33E+5 Pa | 1E-4...1333 mbar | 1E-4...1000 TorrElectrical connectors: _x0009_special plug connectorDisplay and control units:_x0009_B-RAX™ 3200, B-RAX™ 3300, FlexRax™ 4000, VGC301, GP 275, GP 307, GP 350, GP 370Compatible with Granville-Phillips® Series 275 Controllers and SensorsEquivalent Convectron® P/N:_x0009_275203

€240.00

CVG101GC Worker Bee™

Product number: IT-CVG101GC

CVG101GC Worker Bee™ (KF25) Convection-Enhanced Pirani GaugePassive gauge with convection enhancementFitting: _x0009__x0009__x0009_DN25KFMeasurement range:_x0009_0.01...1.33E+5 Pa | 1E-4...1333 mbar | 1E-4...1000 TorrElectrical connectors: _x0009_special plug connectorDisplay and control units:_x0009_B-RAX™ 3200, B-RAX™ 3300, FlexRax™ 4000, VGC301, GP 275, GP 307, GP 350, GP 370Compatible with Granville-Phillips® Series 275 Controllers and SensorsEquivalent Convectron® P/N:_x0009_275196

€261.00

CVG101GF Worker Bee™

Product number: IT-CVG101GF

CVG101GB Worker Bee™(CF40) Convection-Enhanced Pirani GaugePassive gauge with convection enhancementFitting: _x0009__x0009__x0009_DN40CFMeasurement range:_x0009_0.01...1.33E+5 Pa | 1E-4...1333 mbar | 1E-4...1000 TorrElectrical connectors: _x0009_special plug connectorDisplay and control units:_x0009_B-RAX™ 3200, B-RAX™ 3300, FlexRax™ 4000, VGC301, GP 275, GP 307, GP 350, GP 370Compatible with Granville-Phillips® Series 275 Controllers and SensorsEquivalent Convectron® P/N:_x0009_275238

€281.00

CVM201 Super Bee™ (KF 16)

Product number: IT-CVM201GBA

CVM201 Super Bee™ (KF 16) Convection-Enhanced Pirani GaugeActive gauge with convection enhancementFitting: DN16KFMeasurement range 0.01...1.33E+5 Pa | 1E-4...1333 mbar | 1E-4...1000 TorrDisplay graphic LCD (i), 2 to 4 digitsAnalog outputs (adjustable):_x0009_log-linear 1 ... 8 V (1 V / pressure decade)_x0009_non-linear 0,375 ... 5,659 V_x0009_linear 0 ... 10 V (scaleable)Process control relays: 2 relays (SPDT), 30 VDC / 1 AInterfaces: RS232 and RS485Compatible with GP Mini-Convectron® modules

€690.00

CVM201 Super Bee™ (KF 25)

Product number: IT-CVM201GCA

CVM201 Super Bee™ (KF 25) Convection-Enhanced Pirani GaugeActive gauge with convection enhancementFitting: DN25KFMeasurement range 0.01...1.33E+5 Pa | 1E-4...1333 mbar | 1E-4...1000 TorrDisplay graphic LCD (i), 2 to 4 digitsAnalog outputs (adjustable):_x0009_log-linear 1 ... 8 V (1 V / pressure decade)_x0009_non-linear 0,375 ... 5,659 V_x0009_linear 0 ... 10 V (scaleable)Process control relays: 2 relays (SPDT), 30 VDC / 1 AInterfaces: RS232 and RS485Compatible with GP Mini-Convectron® modules

€715.00

CVM211 Stinger™ Convection-Enhanced Pirani Gauge

Product number: IT-CVM211GBA

CVM211 Stinger™ Convection-Enhanced Pirani GaugeActive gauge with convection enhancementFitting NW16KFMeasurement range 1E-4...1000 TorrDisplay LED (red), 3-digit Torr/mTorrAnalog output: non-linear 0.375...5.659 VProcess control relay: 1 relay (SPDT), 30 VDC / 1 ACompatible with GP Mini-Convectron® basic modules

€499.00

CVM211 Stinger™ Convection-Enhanced Pirani Gauge

Product number: IT-CVM211GBA-B-L

CVM211 Stinger™ Convection-Enhanced Pirani GaugeActive gauge with convection enhancementFitting DN16KFMeasurement range 1.3E-4...1333 mBarDisplay LED (red), 3-digit mBar/BarAnalog output: log-linear 1...8 V (1 V / pressure decade)Process control relay: 1 relay (SPDT), 30 VDC / 1 ACompatible with GP Mini-Convectron® basic modules

€499.00

CVM211 "Stinger" Convection-Enhanced Pirani Gauge

Product number: IT-CVM211GBA-B-NL

CVM211 "Stinger" Convection-Enhanced Pirani GaugeActive gauge with convection enhancementFitting NW16KFMeasurement range 1.3E-4...1333 mBarDisplay LED (red), 3-digit mBar/BarAnalog output: non-linear 0.375...5.659 VProcess control relay: 1 relay (SPDT), 30 VDC / 1 ACompatible with GP Mini-Convectron® basic modules

€499.00

CVM211 Stinger™ Convection-Enhanced Pirani Gauge

Product number: IT-CVM211GCA-B-L

CVM211 Stinger™ Convection-Enhanced Pirani GaugeActive gauge with convection enhancementFitting DN25KFMeasurement range 1.3E-4...1333 mBarDisplay LED (red), 3-digit mBar/BarAnalog output: log-linear 1...8 V (1 V / pressure decade)Process control relay: 1 relay (SPDT), 30 VDC / 1 ACompatible with GP Mini-Convectron® basic modules

€510.00

CVM211 Stinger™ Convection-Enhanced Pirani Gauge

Product number: IT-CVM211GCL

CVM211 Stinger™ Convection-Enhanced Pirani GaugeActive gauge with convection enhancementFitting DN25KFMeasurement range ,0x10 E-4 ... 1,000TorrDisplay LED (red), 3-digit mBar/BarAnalog output: log-linear 1...8 V (1 V / pressure decade)Process control relay: 1 relay (SPDT), 30 VDC / 1 ACompatible with GP Mini-Convectron® basic modules

€510.00

CVM211 "Stinger" Convection-Enhanced Pirani Gauge

Product number: IT-CVM211GEA-B-L

CVM211 "Stinger" Convection-Enhanced Pirani GaugeActive gauge with convection enhancementFitting DN16CFMeasurement range 1.3E-4...1333 mBarDisplay LED (red), 3-digit mBar/BarAnalog output: log-linear 1 ... 8 V (1 V / pressure decade)Process control relay: 1 relay (SPDT), 30 VDC / 1 ACompatible with GP Mini-Convectron® basic modules

€510.00

CVM211 "Stinger" Convection-Enhanced Pirani Gauge

Product number: IT-CVM211GEA-B-NL

CVM211 "Stinger" Convection-Enhanced Pirani GaugeActive gauge with convection enhancementFitting DN16CFMeasurement range 1.3E-4...1333 mBarDisplay LED (red), 3-digit mBar/BarAnalog output: non-linear 0.375...5.659 VProcess control relay: 1 relay (SPDT), 30 VDC / 1 ACompatible with GP Mini-Convectron® basic modules

€510.00

IGM400 Hornet™ Hot Cathode (KF25)

Product number: IT-IGM400YCX

IGM400 Hornet™ Hot Cathode (KF25)with Yttria coated filaments. Fitting NW25• Miniature Bayard-Alpert Technology• 1.00E-09 to 5.00E-02 Torr measurement range

€1,060.00

IGM400 Hornet™ Hot Cathode (KF40)

Product number: IT-IGM400YDX

IGM400 Hornet™ Hot Cathode (KF40)with Yttria coated filaments. Fitting NW40• Miniature Bayard-Alpert Technology• 1.00E-09 to 5.00E-02 Torr measurement range

€1,070.00

IGM401 Hornet™ Hot Cathode (KF40)

Product number: IT-IGM401YBD

IGM401 Hornet™ Hot Cathode (KF16)with Yttria coated filaments. Fitting NW40CF• Miniature Bayard-Alpert Technology• 1.00E-09 to 5.00E-02 Torr measurement range• Built-in controller with OLED digital display

€1,260.00

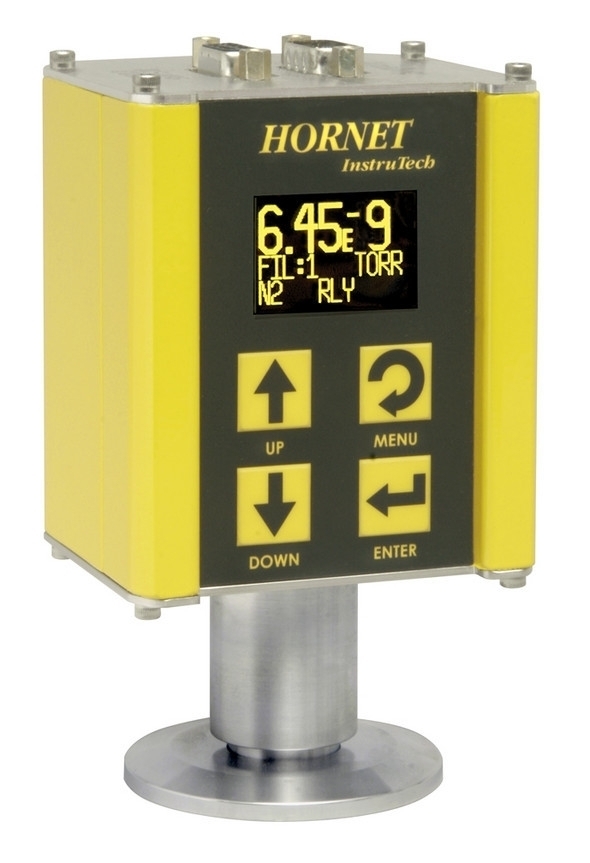

IGM401 Hornet™ Hot Cathode (KF25)

Product number: IT-IGM401YCD

IGM401 Hornet™ Hot Cathode (NW25KF)with Yttria coated filaments. Fitting NW25KF• Miniature Bayard-Alpert Technology• 1.00E-09 to 5.00E-02 Torr measurement range• Built-in controller with OLED digital display

€1,285.00

IGM401 Hornet™ Hot Cathode (CF16 / 1.33 in. )

Product number: IT-IGM401YED

IGM401 Hornet™ Hot Cathode (CF16 / 1.33")Includes ion gauge sensor, built-in controller with OLED display, one set-point relay, one log-linear analog output and RS485 serial communications.with Yttria coated filaments. Fitting NW16CF• Miniature Bayard-Alpert Technology• 1.00E-09 to 5.00E-02 Torr measurement range• Built-in controller with OLED digital display

€1,300.00
