Spare Parts and consumables for Ion Beam Sources.
Here you can find screw sets, connectors, cables, filaments and more. If your required spare part is not listed here or if you required an ion source unit and power supply please feel free to contact us directly.

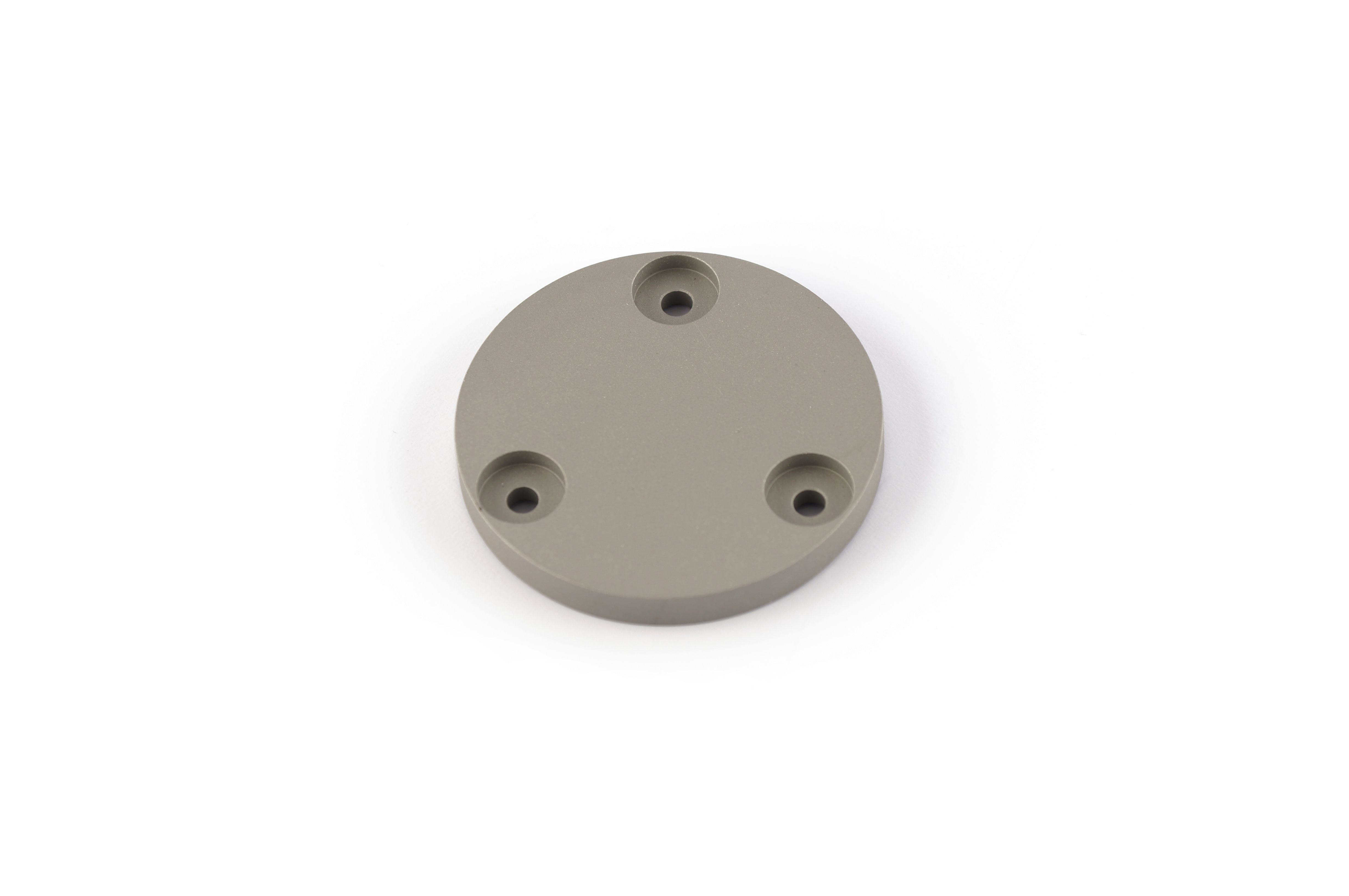

MARK II+ Gas Distributor, Graphite
MARK II+ Gas Distributor, Graphite
Flexible Water Line
Flexible Water Line 24 in VCO
Insulator, 10-32, m, white
Content: 4 Pc. (€4.00 / 1 Pc.)
4-pin electrical vacuum feedthrough
4-pin electrical vacuum feedthrough; plug-in type for 25mm / 1" base plate mount utilizing LEMO SGJ.4B.304 feedthrough type with M25x1 fixation nut optional adapter for 32mm/1 1/4" base plate mount available

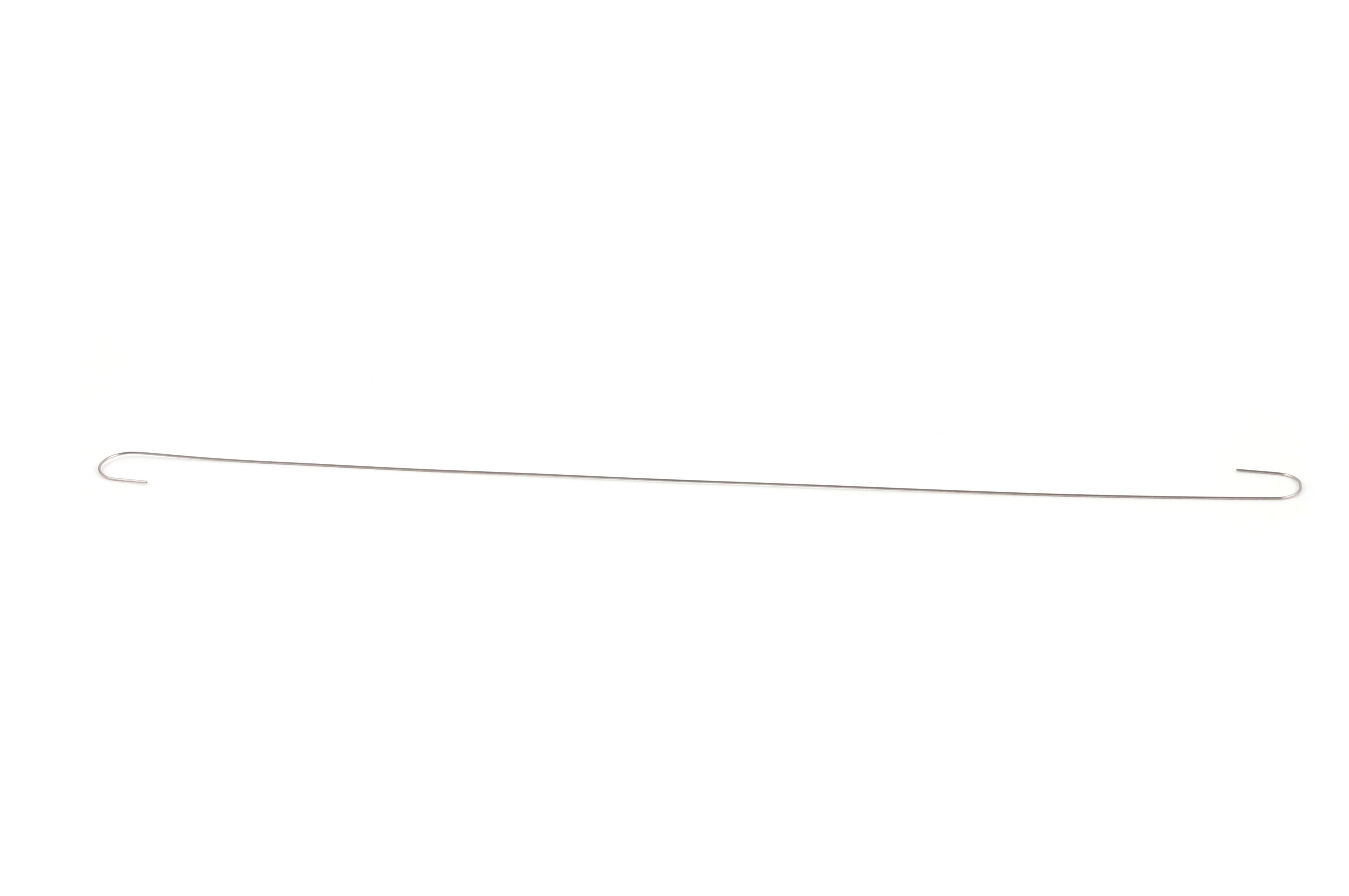

KDC100 / CSC120 Filament Neutralizer
KDC100 / CSC120 Filament Neutralizer
KDC100 Extended Parts Kit, Source, 12 cm DC Source
KDC100 Extended Parts Kit, Source, 12 cm DC Source 20 - pcs - PN:12/16DC-C; Cathode Filament 20 - pcs - PN:12DC-07; Filament 9 - pcs - PN:5002-0006; Nut, Hex, 10-32, SS 8 - pcs - PN:5002-0015; Nut, Hex, 10-32, Au Plated 3 - pcs - PN:5008-0064; Screw, Machine, Cap, Socket, 10-32 X 1.0", SS 4 - pcs - PN:5011-0022; Screw, Machine, Set, Socket, 10-32 X .50, SS 6 - pcs - PN:5011-0040; Screw, Machine, Set, Socket, 4-40 X .093", SS 9 - pcs - PN:5012-0005; Washer, Flat, #10, SS 6 - pcs - PN:CON-01-ALT; Connector, Alternate for CON-01 7 - pcs - PN:INS-1/4-20F-2; Insulator, 1/4-20, Female, Alumina, White 7 - pcs - PN:INS-1/4-20M-1; Insulator, 1/4-20, Male, Alumina, Pink 25 - pcs - PN:INS-10-32M-2; Insulator, 10-32, Male, Alumina, White
KDC100 Standard Parts Kit, Source, 12 cm DC HF
KDC100 Standard Parts Kit, Source, 12 cm DC HF
KDC10 Cathode Filament
KDC10 Cathode Filament weight for 10 pieces = 0,001 kg

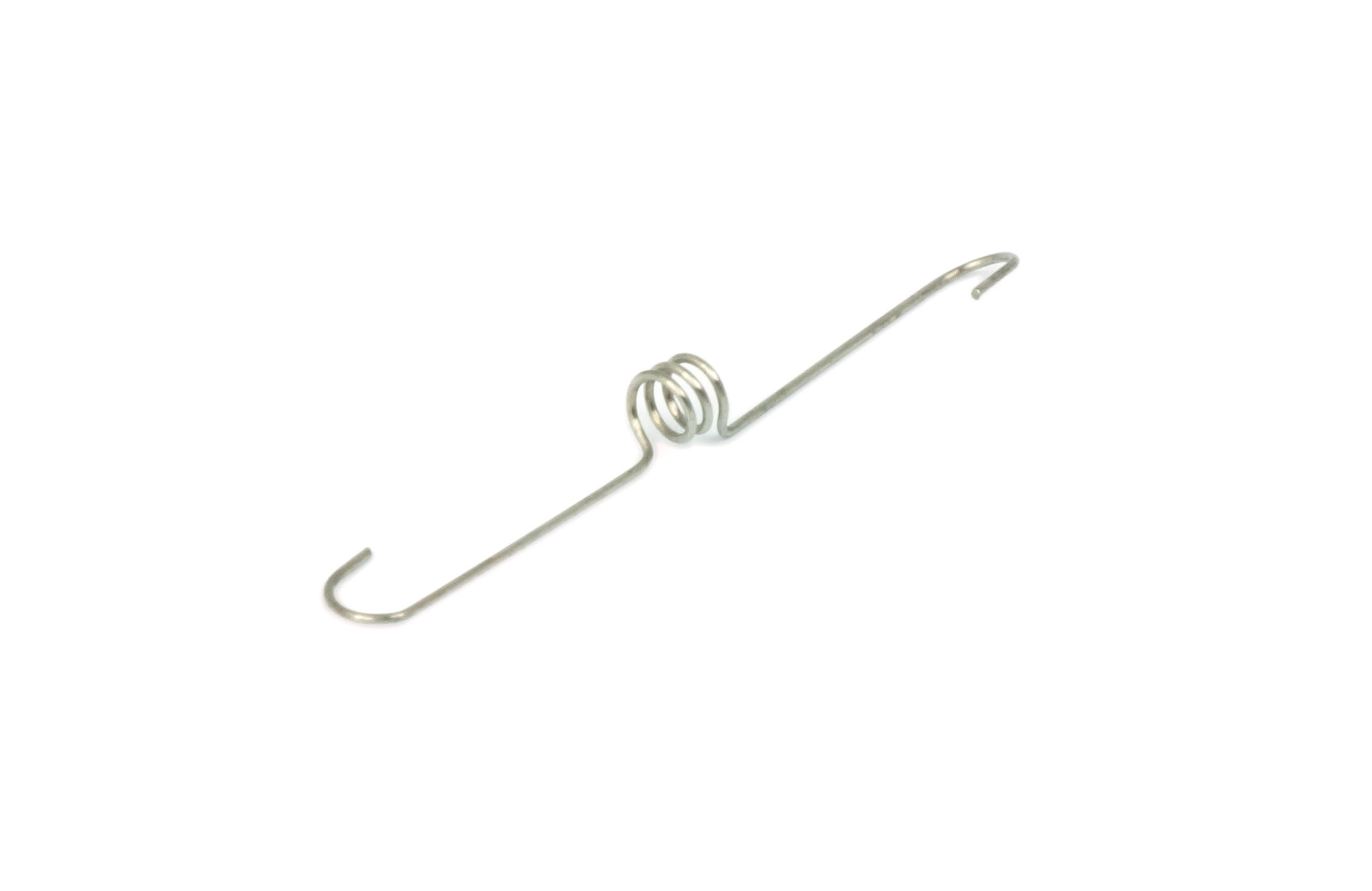

KDC10 Neutralizer Filament
KDC10 Neutralizer Filament weight for 10 pieces = 0,002 kg
KDC10 Sidewinder Neutralizer Extension
KDC10 Sidewinder Neutralizer Extension 2 pcs. required

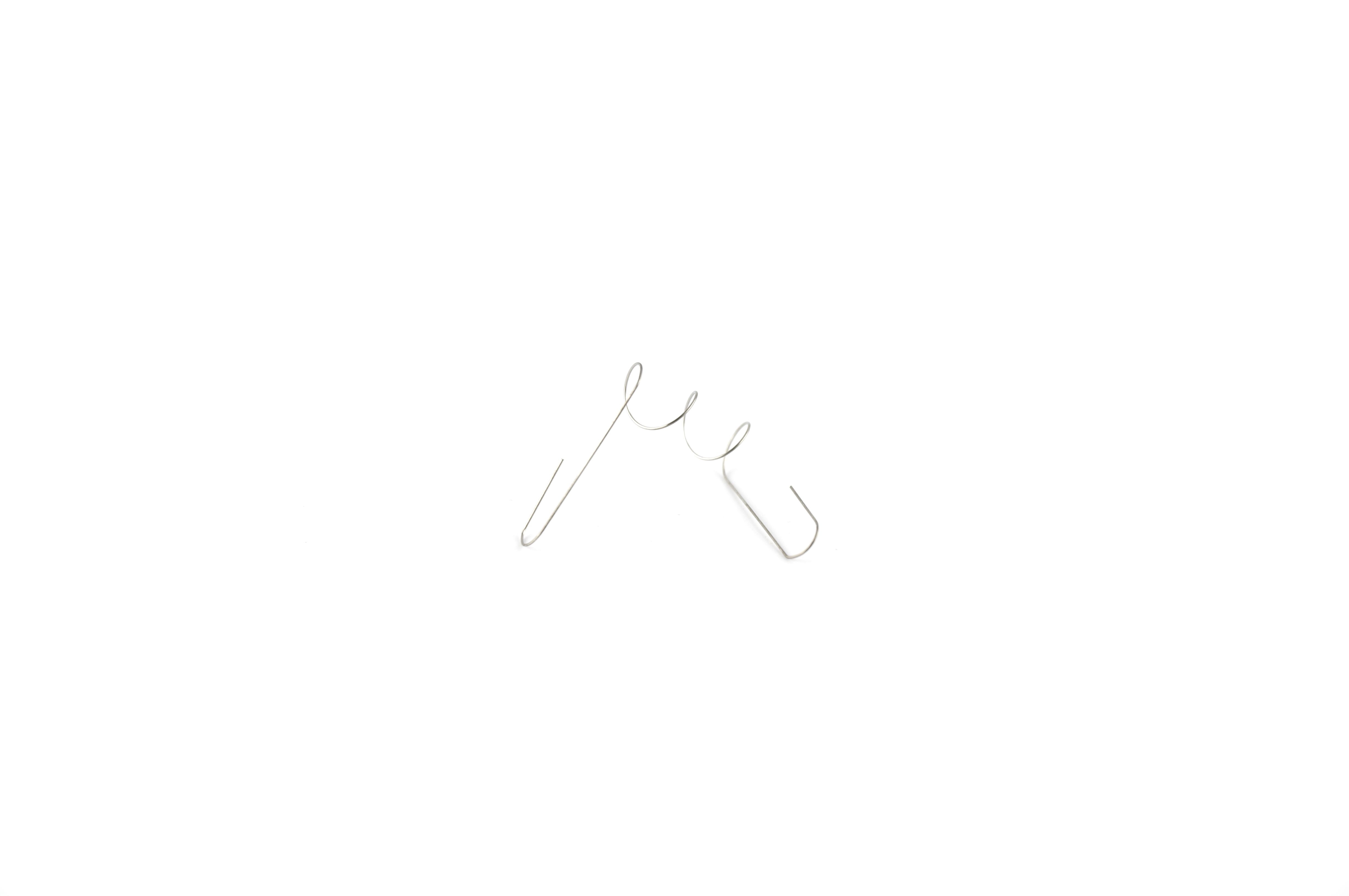

KDC40 Filament Cathode
KDC40 Filament Cathode (1 VE = 10 pieces)
Content: 10 St. (€6.60 / 1 St.)
KDC40 Extended Parts Kit, Source, 4 cm DC Source
KDC40 Extended Parts Kit, Source, 4 cm DC Source Flange/Remote, Filament Neutralizer

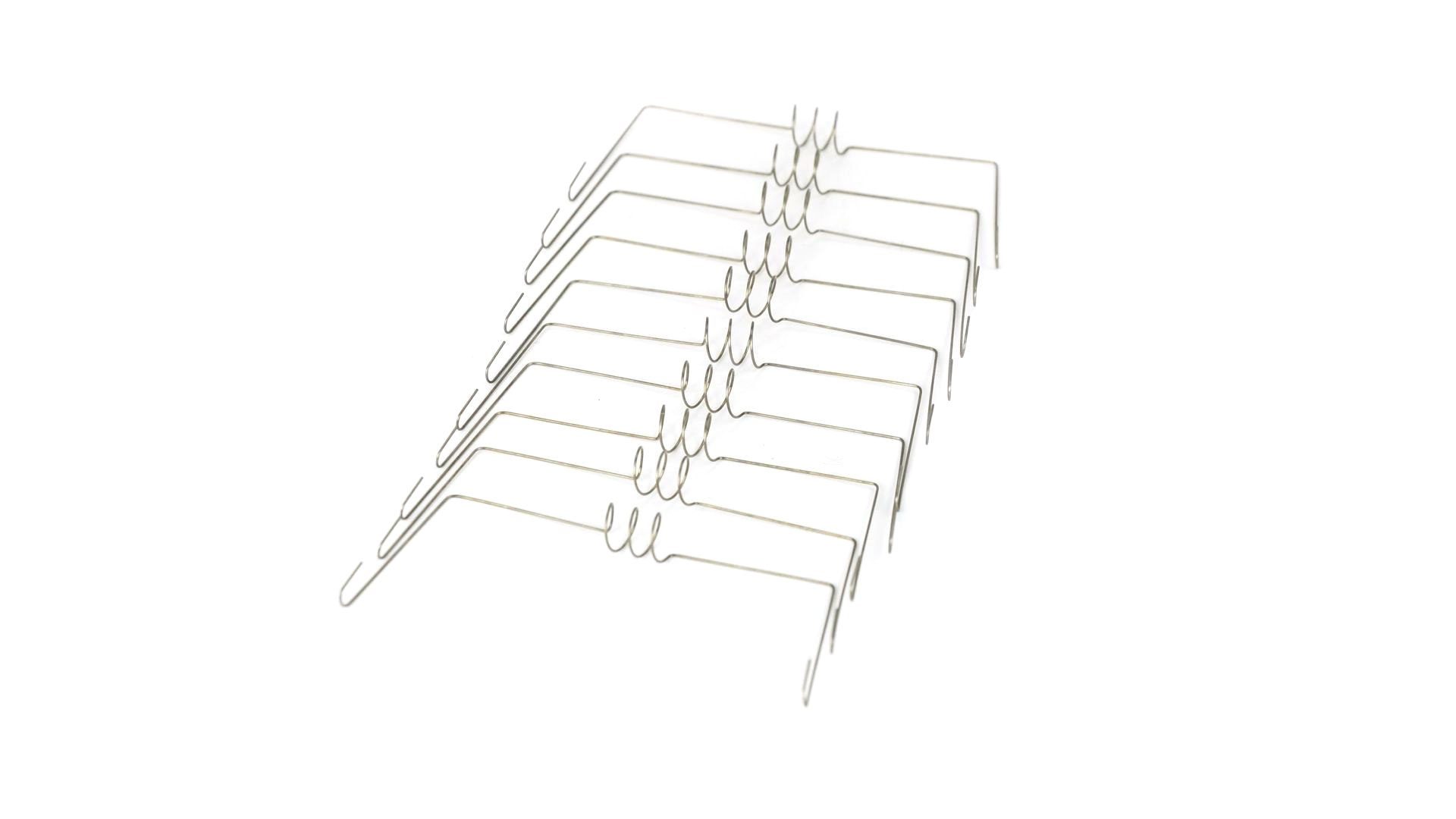

KDC40 Filament Neutralizer
KDC40 Filament Neutralizer (1 VE = 10 pieces)
Content: 10 St. (€6.60 / 1 St.)
Washer, flat, # 10, SS, 10-32
Washer, flat, # 10, SS, 10-32
Washer, flat, 0.25 ID, SS 1/4-20
Washer, flat, 0.25 ID, SS 1/4-20
Washer, flat, small, # 6 (0.312 in. OD), SS
Washer, flat, small, # 6 (0.312" OD), SS

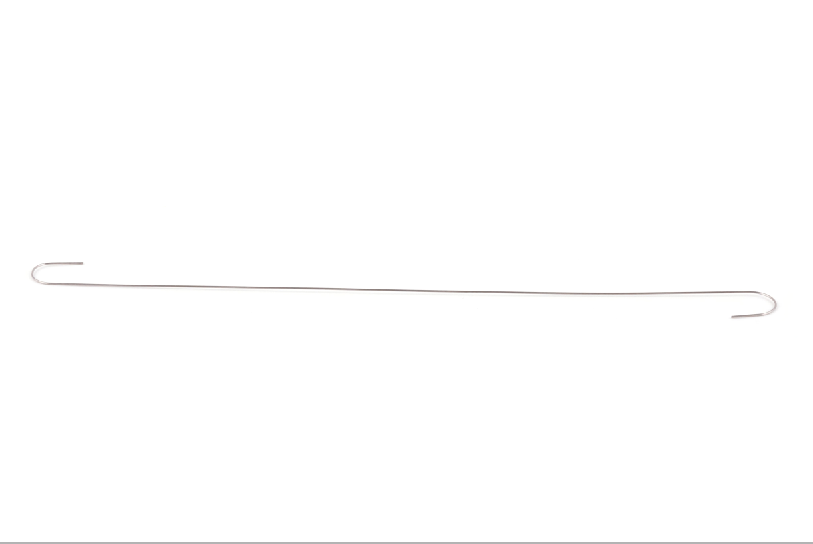

KDC75 Filament, Neutralizer
KDC75 Filament, Neutralizer (1 VE = 20 pieces)
Content: 20 St. (€6.25 / 1 St.)

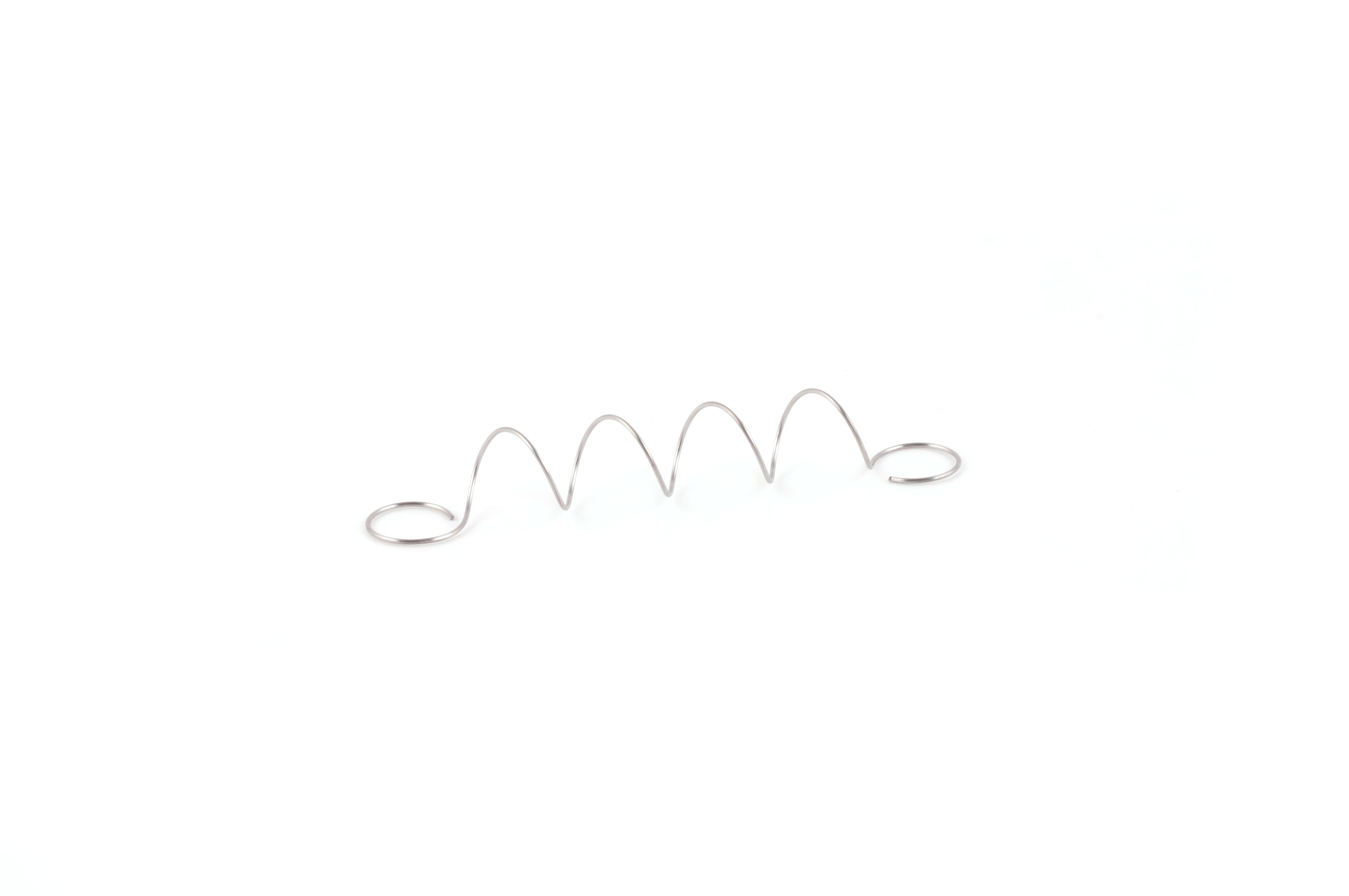

KDC75 Filament Cathode
KDC75 Filament Cathode (1 VE = 20 pieces)
Content: 20 St. (€7.75 / 1 St.)
KDC75 Standard Parts Kit, Optics, 8 cm DC
KDC75 Standard Parts Kit, Optics, 8 cm DC 2 Grid dished, Molybdenum
EH1000/2000 Inner Discharge Cable Assy
EH1000/2000 Inner Discharge Cable Assy 9 in (23 cm)
EH1000/2000 Inner Cathode Cable, right bend
EH1000/2000 Inner Cathode Cable, right bend
EH1000/2000 Inner Cathode Cable, left bend
EH1000/2000 Inner Cathode Cable, left bend
