Aluminum foil
Aluminum foil 1000 mm x 50 m, 0,1 mm Aluminum foil for chamber wall and equipment protection; purity: 99.5 % packing data: 103 cm x 11 cm x 12 cm gross weight: 14 kg
Blank Plug 32 mm
Blank Plug 32 mm O-ring sealed for 32 mm bores incl. O-Ring, washer and M8 screw
Blank Plug 52 mm
Blank Plug 52 mm O-ring sealed for 52 mm bores height in vacuum 5 mm; ID 52,5 mm; OD 75 mm incl. O-Ring ID60x4, washer and M8 screw

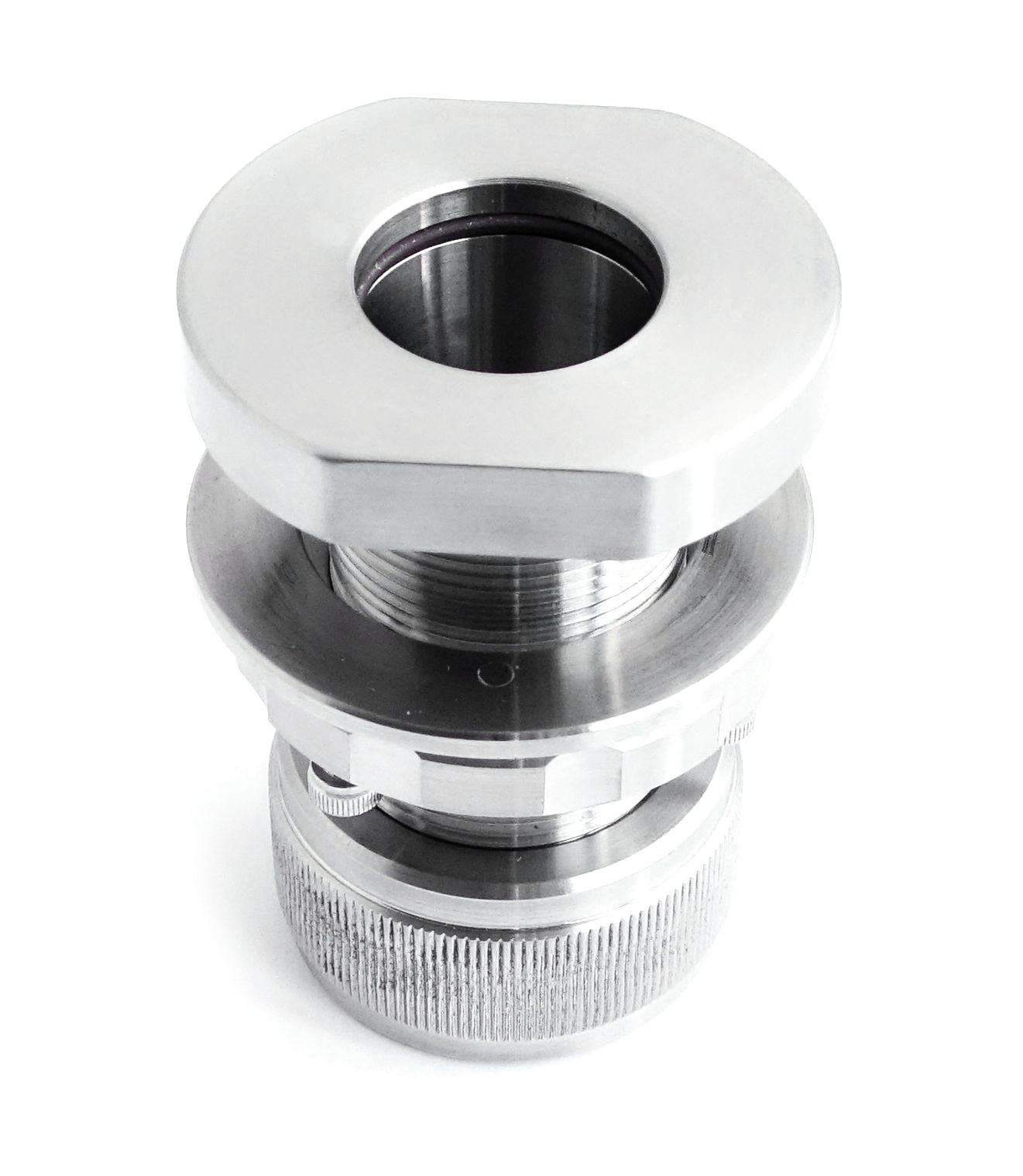

Quick-Coupler Feedthrough 32-25
Quick-Coupler Feedthrough 32-25 for variable (movable) adaption of the depth of immersion of 1 inch rods for 32 mm bore holes
EH1000 Rod Mounting Kit
Ion Source Rod Mounting Kit
HV Gounding Hook
HV Gounding Hook - Pole length: 550 mm - Grounding cable length: 3,5 m; 8,4 mm cable lug

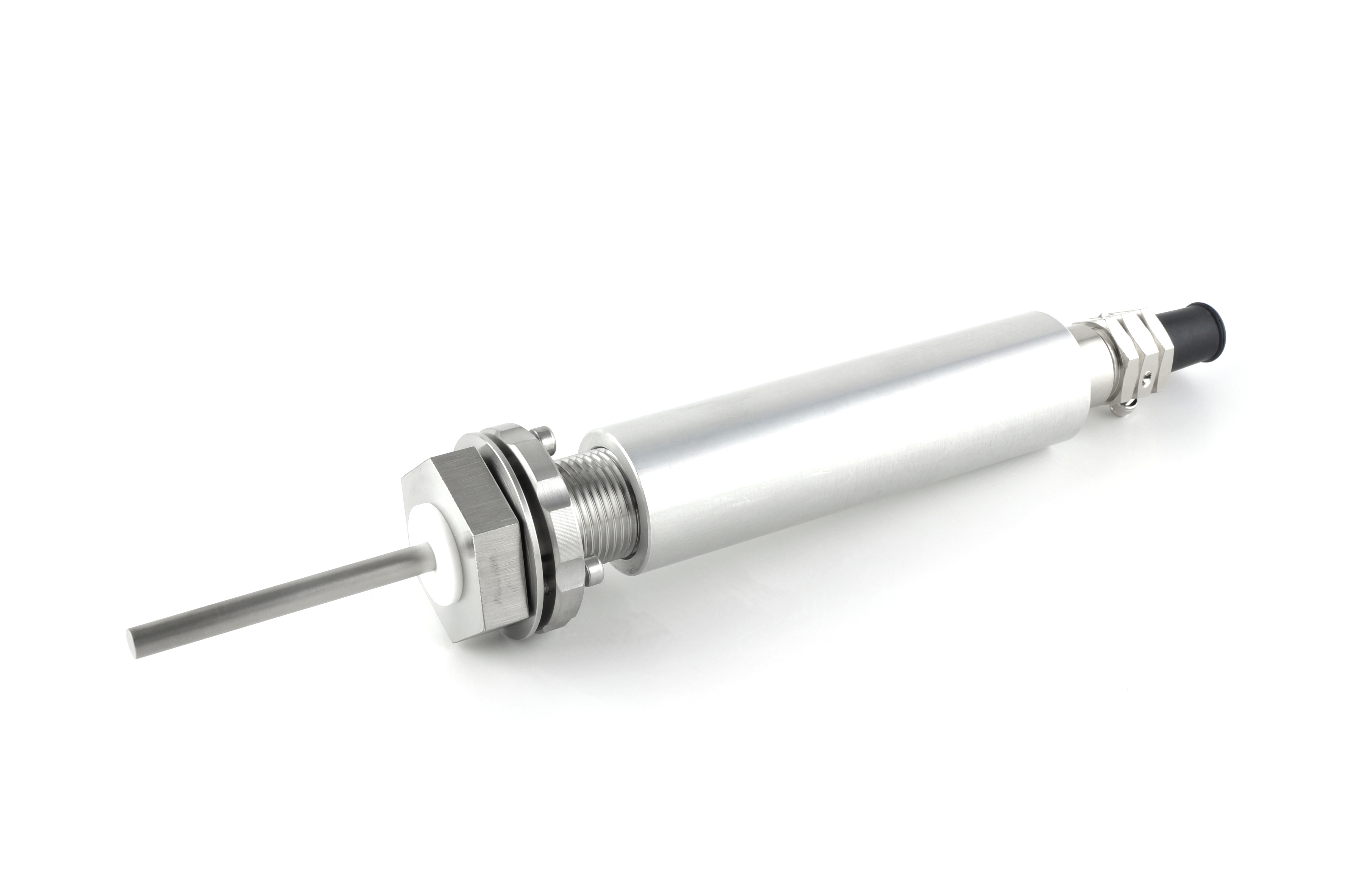

HV-Feedthrough 5KV/7A 1 in
High Voltage Vacuum-Feedthrough 1 in - 1 pin - Max. voltage: 5 kV - Max. current: 7 A - Including insulated stainless steel cover with strain relief
Nut M25 x 1
Nut M25 x 1, stainless steel with 3x M4x16 allen head screws and washer - e.g. used for LEMO 4B- or 4S- series connectors
Nut M32 x 1,5
Nut M32 x 1,5 with washer and 3x M4*16 Allen head screws
Shut off valve
Shut off valve - electro-magnetic normally closed direct acting 2 port solenoid valve Operating voltage 24 V DC 5 - 11 W; surge voltage protection Electrical Connection: DIN terminal Internal leakage: < 1.0E-8 mbar l/sFittings: 1/4 in Swagelok Display: LED
Nut 1 1/4 in.
Nut 1 1/4 in with 3x M4*16 Allen head screws and washer
Nut 1 in.
Nut 1" with 3x M4*16 Allen head screws and washer
Eliminator RF Blocking Filters
Eliminator RF Blocking Filters for use with DC Power Generators 3 Amp max current, 13.56MHz blocking, Type N-female I/O connectors
RF Switch
RF/DC Switch Matrixx Mini VR3 directly attachd to magnetron output (2:1) or supply (1:2) DIN 7/16 RF connectprs 24V vacuum relays (1x); DB9 control interface Current Rating (relay): 50A AC/DC & 17A @13 MHz Voltage Rating (relay): 9kV AC/DC & 15kV @13 MHz

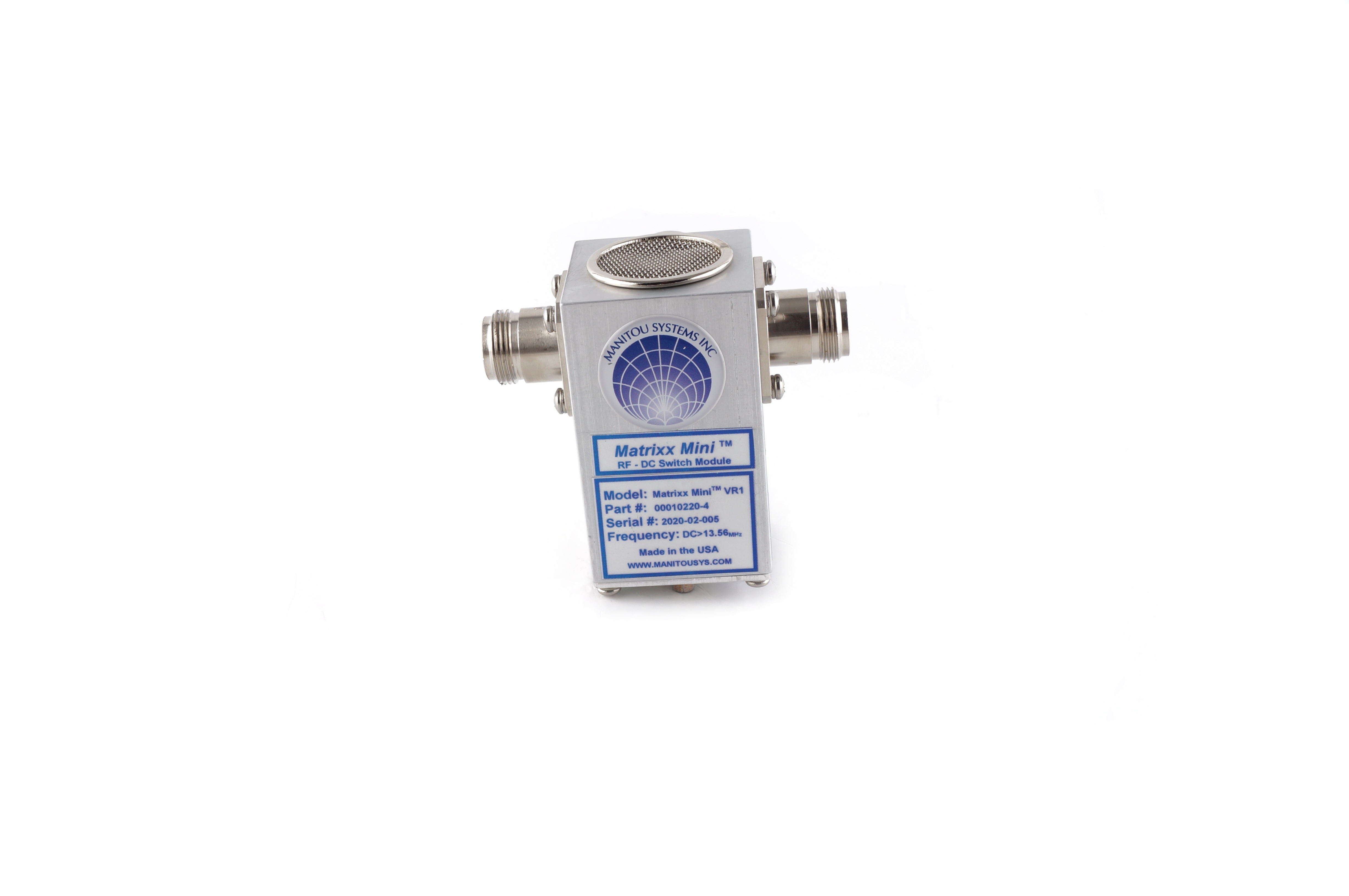

RF Switch Matrixx Mini VR3
RF Switch Matrixx Mini VR3 2x Input RF/DC (7/16 male), 1x output (COMM) 7/16 female 24V vacuum relays (1x); DB9 control interface Current Rating (relay): 50A AC/DC & 17A @13 MHz Voltage Rating (relay): 9kV AC/DC & 15kV @13 MHz
RF Switch
RF/DC Switch Matrixx MMT VR4 DIN 7/16 RF connectors 24V vacuum relays (1x); DB9 control interface Current Rating (relay): 50A AC/DC & 17A @13 MHz Voltage Rating (relay): 9kV AC/DC & 15kV @13 MHz Do not hot switch! Without RF-blocking filter
RF/DC Switch
RF/DC Switch 1x Input ("7/16"), 2x Output ("7/16") 24V vacuum relays; 15A/13MHz & 30A/DC current ratings, DB15 control interface Max. RF Power rating (13.56 MHz) 15A/13MHz & 30A/DC current ratings, DB15M control, 1 vacuum relay, 24VDC coil The input connector to be mounted on the right side surface - position 9. The output connectors will be mounted across the top row on the front surface - positions 1 through 3 (see the attached document for more detail.)
RF Switch
RF/DC Switch 1x Input ("7/16"), 2x Output ("7/16") 24V vacuum relays; 15A/13MHz & 30A/DC current ratings, DB15 control interface Max. RF Power rating (13.56 MHz) 2 relais; inactive output grounded 15A/13MHz & 30A/DC current ratings, DB15M control, 1 vacuum relay, 24VDC coil The input connector to be mounted on the right side surface - position 9. The output connectors will be mounted across the top row on the front surface - positions 1 through 3 (see the attached document for more detail.)
RF Switch
RF/DC Switch w. RF blocking filter 1x Input ("7/16"), 2x Output ("7/16") 24V vacuum relays; 15A/13MHz & 30A/DC current ratings, DB15 control interface Max. RF Power rating (13.56 MHz) 15A/13MHz & 30A/DC current ratings, DB15M control, 1 vacuum relay, 24VDC coil The input connector to be mounted on the right side surface - position 9. The output connectors will be mounted across the top row on the front surface - positions 1 through 3 (see the attached document for more detail.)
RF Switch
RF/DC Switch w. RF blocking filter 1x Input ("7/16"), 2x Output ("7/16") 24V vacuum relays; 15A/13MHz & 30A/DC current ratings, DB15 control interface Max. RF Power rating (13.56 MHz) 2 relays per channel; inactive output grounded Positioning of inputs and outputs according to attachment - 1 x Input ("DIN 7/16") (labelled "Input 1") - 2 x Output ("DIN 7/16") (labelled "Output 1" & "Output 2") Including 4pcs. 10x32 UNF mounting screws for 1-5 mm mounting plate Incl. declaration of conformity ECCN: 3A001
RF/DC Switch - Matrixx 1:3 - DIN 7/16
RF/DC Switch - Matrixx 1:3 - DIN 7/16 for use with 1 RF power supply to connect with 3 magnetrons24V DC actuated vacuum relays RF compatible interface connectors 1x input ("DIN 7/16"), 3 x output ("DIN 7/16") switching must be unencumbered
RF/DC Switch - Matrixx 1:3 - N
RF/DC Switch - Matrixx 1:3 - N for use with 1 RF power supply to connect with 3 magnetrons24V DC actuated vacuum relays RF compatible interface connectors 1x input N, 3 x output N no hot switching
RF Switch
RF/DC Switch 2x Input ("7/16"), 2x Output ("7/16") 24V vacuum relays; 15A/13MHz & 30A/DC current ratings, DB15 control interface ECCN: 3A001
RF/DC Switch
RF/DC Switch with blocking filter for Input channel 1 (only) 2x Input ("7/16"), 2x Output ("7/16") 24V vacuum relays; 15 A / 13 MHz & 30 A/DC current ratings, DB15 control interface Max. RF Power rating (13.56 MHz) - 2 x Input ("DIN 7/16") (labelled "Input 1 DC" & "Input 2 RF") - 2 x Output ("DIN 7/16") (labelled "Output 1" & "Output 2")
