Quartz Sensor Heads

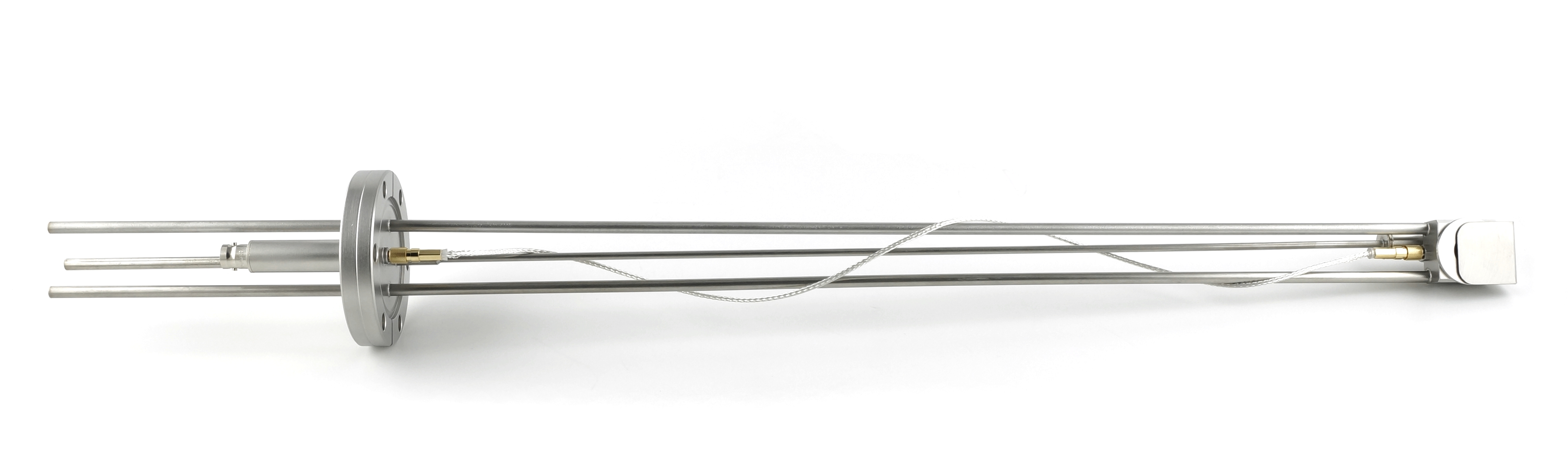

Right Angle Single Sensor/NW-50 Flange

Right Angle Single Sensor/NW-50 Flange 2 x Fluid 3/16" dia.; BNC-connector on atm; microdot in vac Length flange-sensor: customer specified

Part number: MV-800-088

€1,225.00

Sensor Head

Sensor Head 2 x Fluid 3/16 in diameter BNC-connector on atmosphere; microdot in vacuum including in-vacuum cable Length flange-sensor, welded: customer specified

Part number: MV-800-001

€1,245.00

Sensor Repair Kit

Sensor Repair Kit containing - nut, stainless steel - washer, stainless steel - insulator, thin - insulator, thick - contact spring - screw, stainless steel - crystal holder spring - lock washer, stainless steel

Part number: MV-700-067

€225.00

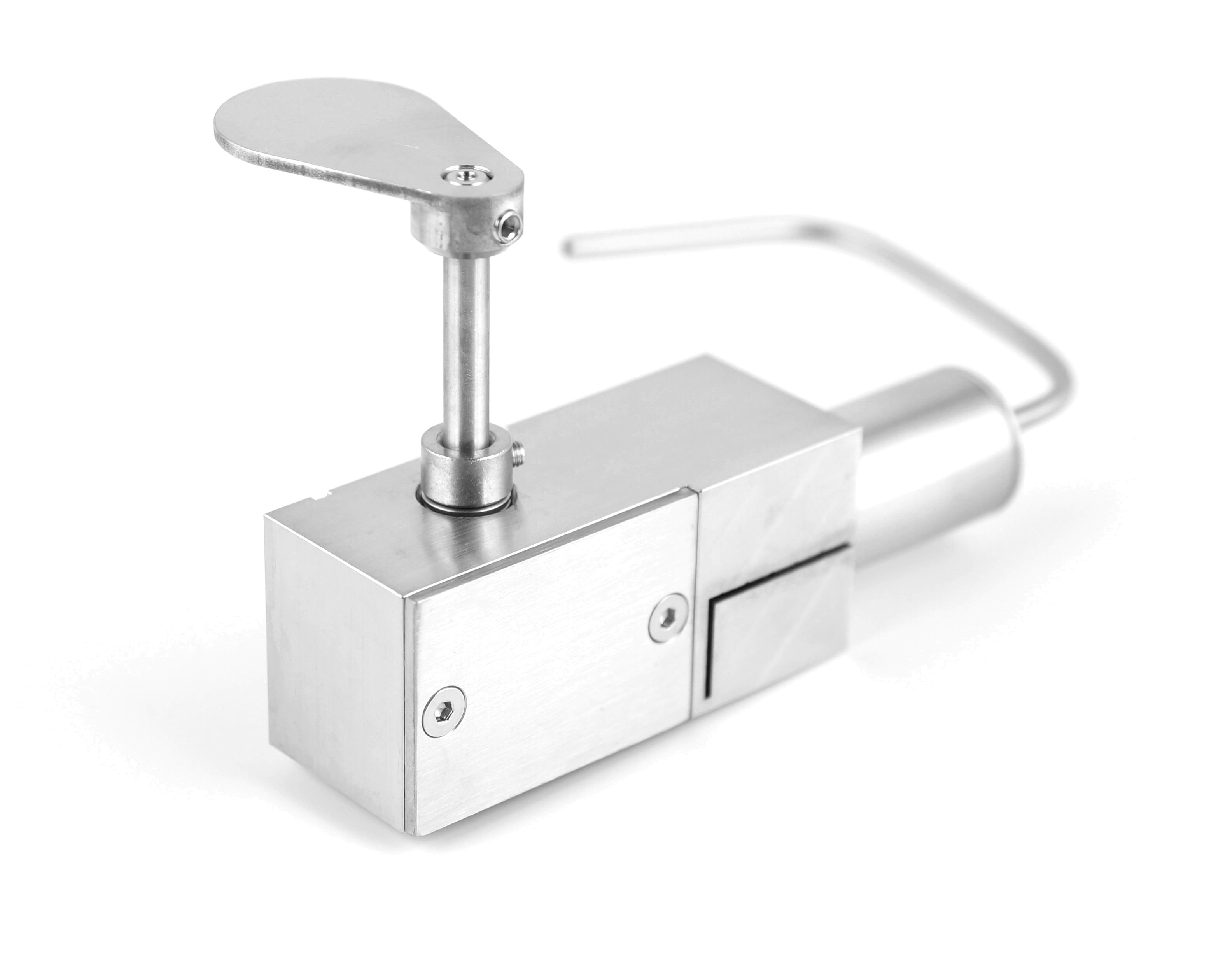

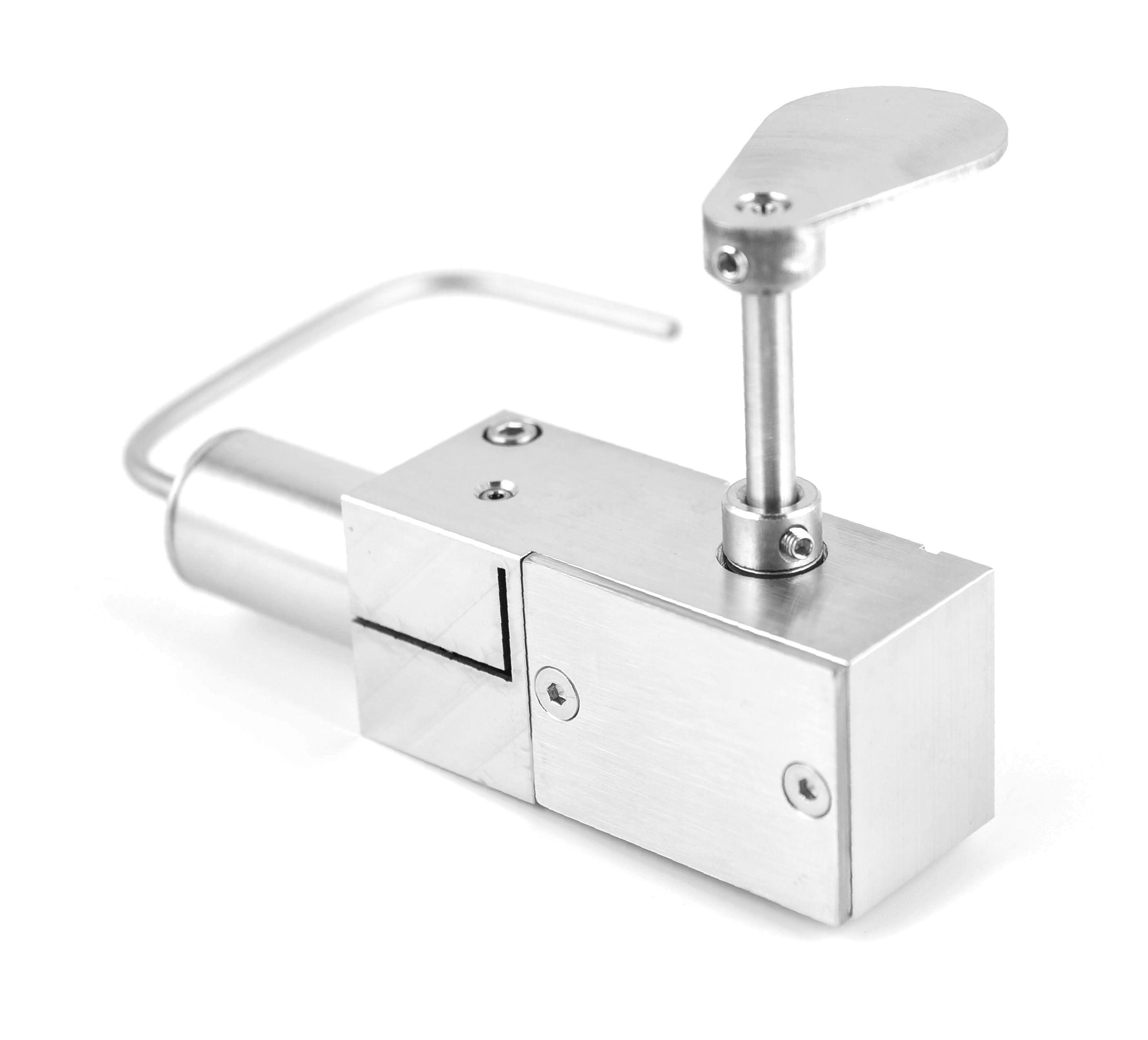

Shutter package for Single Sensor

Shutter package for Single Sensor for single sensor including 1/8" tube

Part number: MV-700-050

€1,995.00

Single Sensor

Single Sensor 2x 3/16" cooling lines Microdot connector

Part number: MV-700-002

€535.00

Single Sensor

Single Sensor 2x 1/4" cooling lines

Part number: MV-700-003

€565.00

Single Sensor

Single Sensor 2x 1/8 in cooling water lines Vacuum: Microdot Atmosphere: BNC

Part number: MV-700-001

€540.00

Single Sensor Head, flat, compact, non-cooled

Part number: MV-700-152

€490.00

Single Sensor on 1 in. Bolt feedthrough

Single Sensor on 1" Bolt feedthrough 2 x Fluid 3/16" dia.; 1x electrical 3/16"

Part number: MV-920-004

€1,450.00

Single sensor with 1/8 in coiled tubes

Single sensor with 1/8 in coiled tubes 2 x fluid 1/8 in diameter - coiled BNC-connector on atmosphere; microdot in vacuum Length flange-sensor: customer specified

Part number: MV-800-024

€1,360.00

Single sensor with 1/8 in. coiled tubes

Single Sensor on a 2x 3/4" CF flange with coiled cooling lines, microdot in vac Length flange-sensor: customer specified

Part number: MV-800-025

€1,360.00

Single Sensor with Shutter

Single Sensor with Shutter 2x 1/8" cooling lines; 1/8" air line

Part number: MV-700-011

€2,585.00

Single Sputter Sensor with Shutter

Single Sputter Sensor with Shutter Sputtering head 2x 1/4" cooling lines with mVCR 1x 1/8" air line Microdot

Part number: MV-700-088-S-250-MVCR-SPR

€2,840.00

Spare Parts Kit Single Sensor

Spare Parts Kit Single Sensor existing of - Crystal holder 700-005 - Spring 700-033 - Clip 700-034 - Crystal Spring 700-035 - Center contact for sensor head, right angle 700-037RA - O-Ring COMP-075-O

Part number: MV-SENSOR-SPK

€395.00

SS Retainer Clip

Part number: MV-700-034

€10.00

Standard Single Sensor - KF40 Flange

Standard Single Sensor - KF40 Flange 2 x Fluid 3/16 in.diameter length (flange-sensor): customized including in-vacuum cable connection: BNC on atmosphere; Microdot in vacuum

Part number: MV-800-086

€1,240.00

Standard Single Sensor with Shutter

Standard Single Sensor with Shutter 2 x ø 3/16 in cooling lines BNC-connector on atmosphere; microdot in vacuum length flange-sensor: customer specified

Part number: MV-800-002

€3,340.00

UHV Dual Sensor Head on CF40 with Shutter

UHV Dual Sensor Head on CF40 with Shutter 2 x Fluid 3/16" dia.;1x air 3/16" 2x BNC-connector on atm; 2x microdot in vac Length flange-sensor: customer specified in-vacuum cable included

Part number: MV-800-008

€3,750.00

UHV Sensor Head on CF40 with Shutter

UHV Sensor Head on CF40 with Shutter 2 x Fluid 3/16" dia.; 1x 3/16" air BNC-connector on atm; microdot in vac Length flange-sensor: customer specified including in-vacuum cable

Part number: MV-800-004

€3,190.00

UHV Single Sensor Head on CF40 (2 3/4 in)

UHV Single Sensor Head on CF40 (2 3/4 in) 2x Fluid 3/16 in tube diameter BNC-connector on atmosphre and Microdot in vacuumincluding in-vacuum cable Microdot-Microdot Length flange-sensor: customer specified

Part number: MV-800-003

€1,290.00

UHV Single Sensor Head on CF63

UHV Single Sensor Head on CF63 with shutter 2 x Fluid 3/16" dia.; 1x electrical 3/16" including embedded in-vacuum cable

Part number: MV-920-003-CF63

€3,715.00
