Rotary Feedthroughs

Here you can find a small selection of our small standard ferrofluid sealed rotary feedthroughs. Please request further models at BeamTec directly.

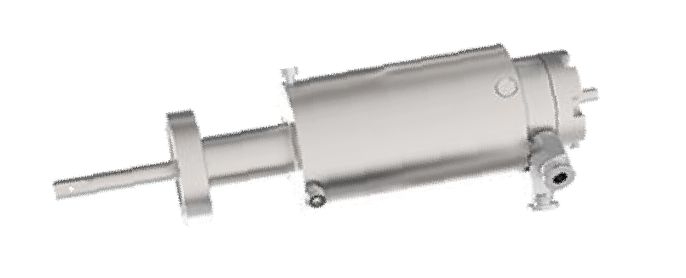

Magnetic Coupled Rotary Feedthrough, CF16, 180 deg

Magnetic Coupled Rotary Feedthrough, CF16, 180 degree, Pneumatic Mounting Flange: NW16CF Max. Bakeout Temperature: 150° (pneumatic actuator removed) Output shaft diameter:φ6.35mm with M3 tapped hole Adjustable angle rotation 0- 180° Position sensors Air pressure: 4-6 Bar Torque @ 6 Bar: 0.14 Nm Breakaway torque: 0.35 Nm

Part number: BT-MR16R180S

From €645.00

Details

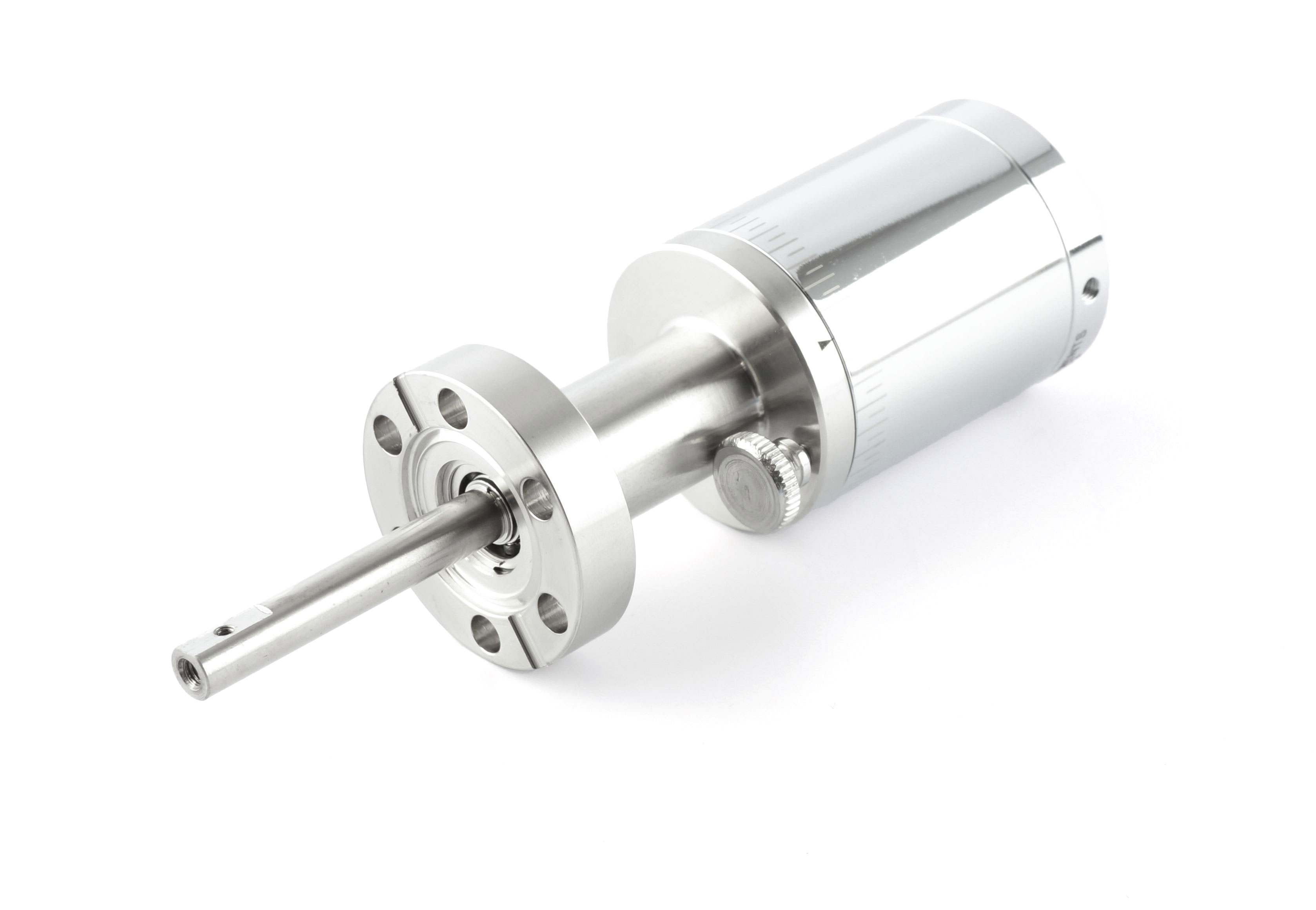

Magnetically Coupled Feedthrough

Magnetically Coupled Feedthrough - Mounting flange DN16 CF - shaft dia. 6 mm - manual operation

Part number: BT-MRD16C

From €440.00

Details

Rotary Feedthrough SFL020 with gear box adapter

Part number: VG-SFL020WN-GP80

€2,100.00

Shutter Drive - pneumatically operated

Shutter Drive - pneumatically operated Ferrofluid sealed; shaft dia 10mm MN: V640109 FESTO DSM-12-270-P-A-B pneumatic drive setting range for swivel angle: 0 - 270°

Part number: BT-SNL010-SB390-PN-DSM12

€1,200.00

Vacuum Rotary Feedthrough SFL010-KF50

Vacuum Rotary Feedthrough SFL010-KF50 Ferrofluid sealed Vacuum shaft length:100 mm Mounting flange: KF50Motor flange: NEMA 24 MN V6602087

Part number: VG-SFL010-KF50-STEP

From €1,020.00

Details

Vacuum Rotary Feedthrough BD124

Vacuum Rotary Feedthrough BD124 Ferrofluid sealed with stop for gearwheel on vacuum-side shaft MN V660155

Part number: VG-SFL015-BD124

From €807.50

Details

Vacuum Rotary Feedthrough BD2xx

Vacuum Rotary Feedthrough BD2xx Ferrofluid sealed MN V6601525

Part number: VG-SFL015-BD2XX

From €799.00

Details

Vacuum Rotary Feedthrough HFL020NN

Rotary Vacuum Feedthrough HFL020NN Ferrofluid sealed MN: V760200

Part number: VG-HFL020-NN

€1,150.00

Vacuum Rotary Feedthrough HFL030NN-KF40C-TURCON

Rotary Vacuum Feedthrough HFL030NN-KF40C-TURCON Ferrofluid sealed with particle protection seal Hollow shaft diameter: 26 mm Mounting flange: ISO40KF Hollow shaft flange: ISO40KF

Part number: VG-HFL030NN-KF40C-TURCON

€1,700.00

Vacuum Rotary Feedthrough HNL006

Vacuum Rotary Feedthrough HNL006 ferrofluid sealed 1 in bolt type hollow shaft feedthroughfor 1/4 in shaft

Part number: VG-HNL006-1-4-1-14

€750.00

Vacuum Rotary Feedthrough HTL012-HS-12

Vacuum Rotary Feedthrough HTL012-HS-12 ferrofluid sealed compatible to RIGAKU RMS-HS-12

Part number: VG-HTL012-HS12

From €255.00

Details

Vacuum Rotary Feedthrough SFL006-KF16

Vacuum Rotary Feedthrough SFL006-KF16 invers stainless steel turn knob with fixation screw Ferrofluid sealed

Part number: VG-SFL006-KF16-INVERSV3

€650.00

Vacuum Rotary Feedthrough SFL008NN

Rotary Vacuum Feedthrough SFL008NN Ferrofluid sealed; max. temperature: 100°C specs like RMS-NW25-08-LC-F MN: V6601093

Part number: VG-SFL008NN-KF25-SCIA

From €360.00

Details

Vacuum Rotary Feedthrough SFL010-KF40-Nema11

Vacuum Rotary Feedthrough SFL010-KF40-Nema11 with stepper motor drive Ferrofluid sealed shaft diameter: 10 mm shaft length: 30 mm mounting flange: KF40vacuum compatible: <1E-8 mBar stepper motor with gear - NEMA11: 1: 100 max. turning speed: 35 U/min current load / phase: 0,6 A max. drive torque: 3,4 Nm angle resolution: 0,018°

Part number: VG-SFL010-KF40-STEP

From €816.00

Details

Vacuum Rotary Feedthrough SFL010NN

Vacuum Rotary Feedthrough SFL010NN Ferrofluid sealed Flange mounted OD 70.0 mm; O-ring S42 vacuum shaft penetration 30mmatm penetration: 32 mm

Part number: VG-SFL010NN-CS

From €410.00

Details

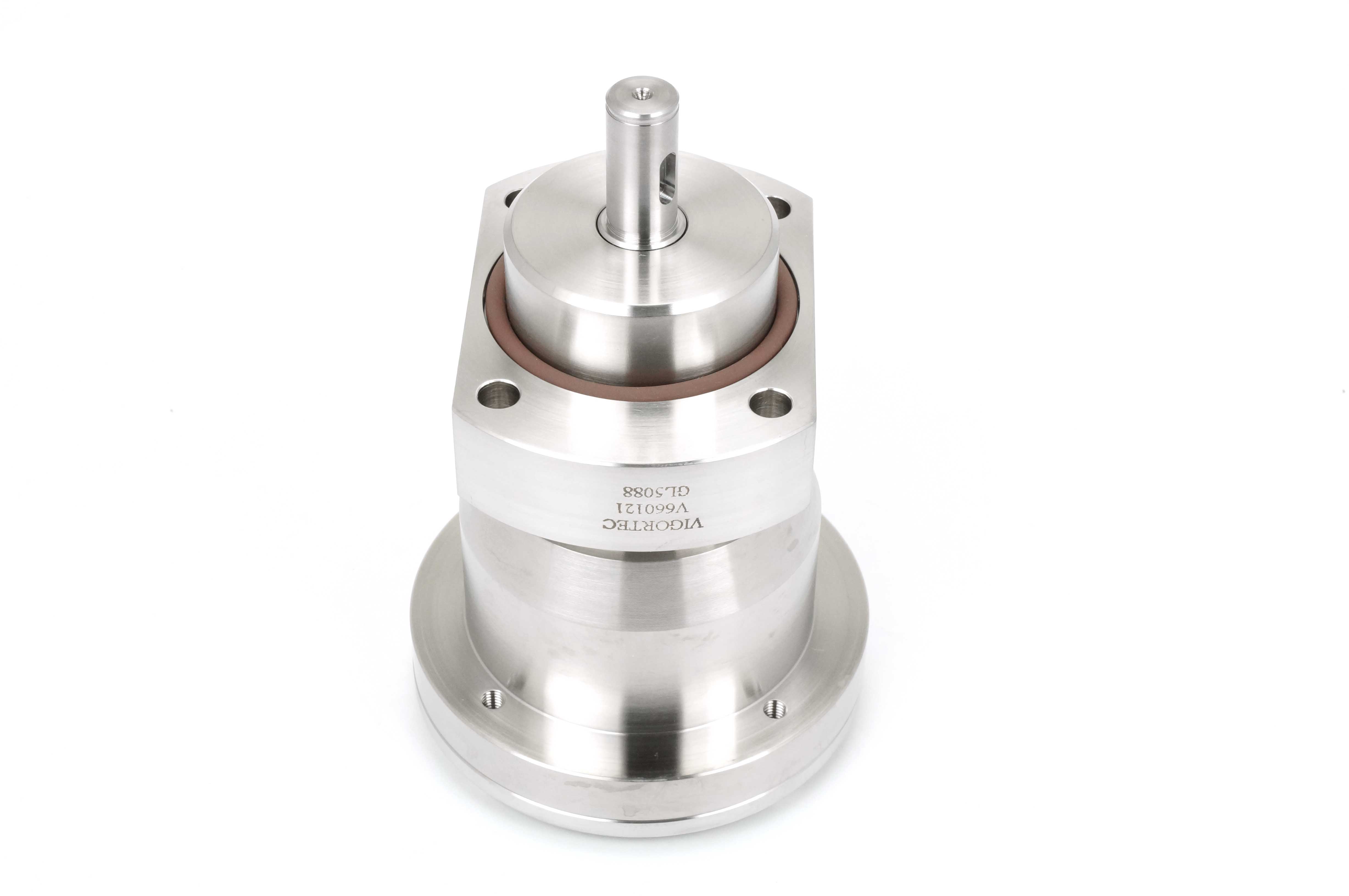

Vacuum Rotary Feedthrough SFL012-BD104

Vacuum Rotary Feedthrough SFL012-BD104 Ferrofluid sealed incl. 5 mm spacer ring MN V660121

Part number: VG-SFL012-BD104

€950.00

Vacuum Rotary Feedthrough SFL025

Rotary Vacuum Feedthrough SFL025 Ferrofluid sealed

Part number: VG-SFL025-310-WN

€400.00

Vacuum Rotary Feedthrough SFL025WN-D9

Rotary Vacuum Feedthrough SFL025WN-D9 Ferrofluid sealed

Part number: VG-SFL025WN-D9

€690.00

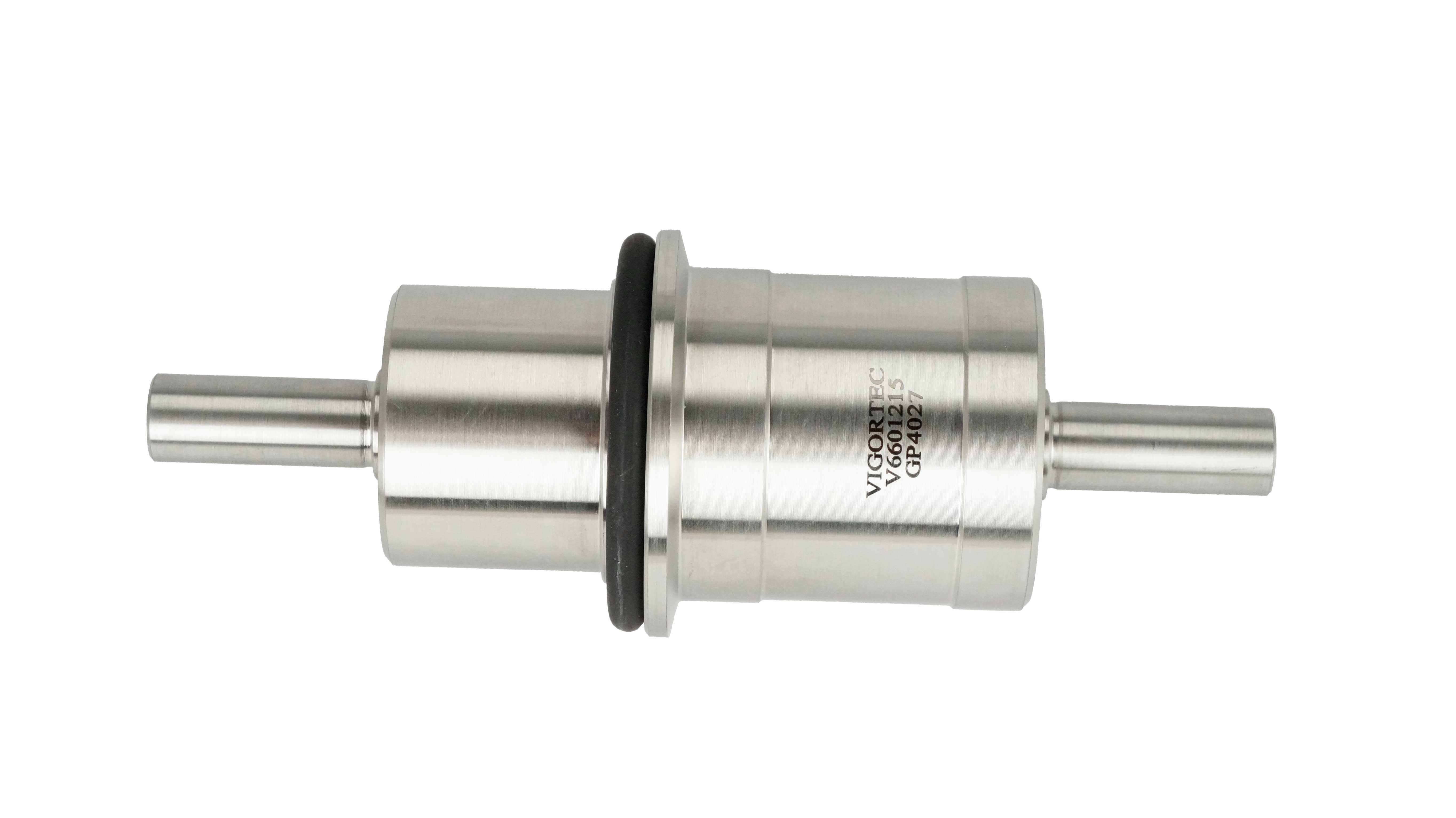

Vacuum Rotary Feedthrough SFV012NN-C

Vacuum Rotary Feedthrough SFV012NN-C Ferrofluid sealed mecanically compatible to Pfeiffer Vacuum model no. DD040A; Ferrotec 43653 shaft diameter: 12 mm flange: DN 40 ISO KF flange sealing: O-Ring Ø 42 mm x 5 mm, FPM MN: V6601215

Part number: VG-SFV012NN-C

From €300.00

Details

Vacuum Rotary Feedthrough SFV012NN-SOM

Vacuum Rotary Feedthrough SFV012NN-SOM Ferrofluid sealed according to drawing dated 20.11.2014 Shaft diameter: 12 mm , front end M5x8 mm thread Mounting: DN 40 ISO KF, Flange Seal: O-Ring Ø 42 mm x 5 mm, FPM Total length: 143 mm Shaft length: VAK: 24 + 7 mm; ATM: 24 + 2 mm MN V6601234

Part number: VG-SFV012NN-SOM

From €300.00

Details

Vacuum Rotary Feedthrough SNL006

Vacuum Rotary Feedthrough SNL006 Ferrofluid sealed, 1/4" shaft compatible to Ferrotec SS-250-SLBE PN 103982 MN: V640060EA-FT

Part number: VG-SNL006-103982

€522.00

Vacuum Rotary Feedthrough SNL008

Vacuum Rotary Feedthrough SNL008NF-KW Drawing No.: CCW15-30.01.02:15-00 Ferrofluid sealed Shaft outer diameter: 8 mm groove 2x16 on base flange side with feather-key DIN6885-A 2x2x16 groove 2x12 on atmosphere side with feather-key DIN6885-A 2x2x12 frontal thread M3 - 6/9 mounting thread M26x1,5, length of thread 30 mm PFPE-based FerroFluid

Part number: VG-SNL008NF-KW

From €360.00

Details
