Solid Shaft

Ferrofluid sealed solid shaft feedthroughs are available in different mounting configurations like threaded, nut or flange mount configurations with shaft diameters from 4 - 50 mm. Please request any feedthrough not listed below directly at BeamTec.

Magnetic Coupled Rotary Feedthrough, CF16, 180 deg

Magnetic Coupled Rotary Feedthrough, CF16, 180 degree, Pneumatic Mounting Flange: NW16CF Max. Bakeout Temperature: 150° (pneumatic actuator removed) Output shaft diameter:φ6.35mm with M3 tapped hole Adjustable angle rotation 0- 180° Position sensors Air pressure: 4-6 Bar Torque @ 6 Bar: 0.14 Nm Breakaway torque: 0.35 Nm

Part number: BT-MR16R180S

From €645.00

Details

Magnetically Coupled Feedthrough

Magnetically Coupled Feedthrough - Mounting flange DN16 CF - shaft dia. 6 mm - manual operation

Part number: BT-MRD16C

From €440.00

Details

Shutter Drive - pneumatically operated

Shutter Drive - pneumatically operated Ferrofluid sealed; shaft dia 10mm MN: V640109 FESTO DSM-12-270-P-A-B pneumatic drive setting range for swivel angle: 0 - 270°

Part number: BT-SNL010-SB390-PN-DSM12

€1,200.00

Vacuum Rotary Feedthrough SFL006-KF16

Vacuum Rotary Feedthrough SFL006-KF16 Ferrofluid sealed MN

Part number: VG-SFL006-KF16-INVERSV2

€550.00

Vacuum Rotary Feedthrough SFL012-BD104

Vacuum Rotary Feedthrough SFL012-BD104 Ferrofluid sealed incl. 5 mm spacer ring MN V660121

Part number: VG-SFL012-BD104

€950.00

Vacuum Rotary Feedthrough SNL006

Vacuum Rotary Feedthrough SNL006 Ferrofluid sealed, 1/4 in shaft compatible to Ferrotec SS-250-SLBE PN 103237

Part number: VG-SNL006-103237

€390.00

Vacuum Rotary Feedthrough SNL009-SB390

Vacuum Rotary Feedthrough SNL009-SB390 Ferrofluid sealed Shaft diameter: 9mm Mounting thread: M25x1,5

Part number: VG-SNL009-SB390

From €442.00

Details

Vakuum-Drehdurchführung BD124

Vacuum Rotary Feedthrough BD124 Ferrofluid sealed with stop for gearwheel on vacuum-side shaft

Part number: VG-SFL015-BD124

From €807.50

Details

Vakuum-Drehdurchführung BD2xx f. BAK1350

Vacuum Rotary Feedthrough BD2xx Ferrofluid sealed MN V6601525

Part number: VG-SFL015-BD2XX

From €799.00

Details

Vakuum-Drehdurchführung SFL006 auf KF16

Vacuum Rotary Feedthrough SFL006-KF16 invers stainless steel turn knob with fixation screw Ferrofluid sealed

Part number: VG-SFL006-KF16-INVERSV3

€650.00

Vakuum-Drehdurchführung SFL008NN

Rotary Vacuum Feedthrough SFL008NN Ferrofluid sealed; max. temperature: 100°C specs like RMS-NW25-08-LC-F

Part number: VG-SFL008NN-KF25-SCIA

From €360.00

Details

Vakuum-Drehdurchführung SFL010-KF40-Nema11

Vacuum Rotary Feedthrough SFL010-KF40-Nema11 with stepper motor drive Ferrofluid sealed shaft diameter: 10 mm shaft length: 30 mm mounting flange: KF40vacuum compatible: <1E-8 mBar stepper motor with gear - NEMA11: 1: 100 max. turning speed: 35 U/min current load / phase: 0,6 A max. drive torque: 3,4 Nm angle resolution: 0,018°

Part number: VG-SFL010-KF40-STEP

From €816.00

Details

Vakuum-Drehdurchführung SFL010-KF50

Vacuum Rotary Feedthrough SFL010-KF50 incl. stepper motor Ferrofluid sealed Vacuum shaft length:100 mm Mounting flange: KF50Motor flange: NEMA 24 Incl. Nema24 stepper motor ST6018L3008-A (holding torque > 2,5 Nm)

Part number: VG-SFL010-KF50-STEP

From €1,402.50

Details

Vakuum-Drehdurchführung SFV012NN-C

Vacuum Rotary Feedthrough SFV012NN-C Ferrofluid sealed mecanically compatible to Pfeiffer Vacuum model no. DD040A; Ferrotec 43653 shaft diameter: 12 mm flange: DN 40 ISO KF flange sealing: O-Ring Ø 42 mm x 5 mm, FPM MN: V6601215

Part number: VG-SFV012NN-C

From €460.00

Details

Vakuum-Drehdurchführung SFV012NN-SOM

Vacuum Rotary Feedthrough SFV012NN-SOM Ferrofluid sealed according to drawing dated 20.11.2014 Shaft diameter: 12 mm , front end M5x8 mm thread Mounting: DN 40 ISO KF, Flange Seal: O-Ring Ø 42 mm x 5 mm, FPM Total length: 143 mm Shaft length: VAK: 24 + 7 mm; ATM: 24 + 2 mm MN V6601234

Part number: VG-SFV012NN-SOM

€850.00

Vakuum-Drehdurchführung SNL010-SB390

Vacuum Rotary Feedthrough SNL010-SB390 Ferrofluid sealed

Part number: VG-SNL010-SB390

From €442.00

Details

Vakuum-Drehdurchführung STL006

Vacuum Rotary Feedthrough STL006 Ferrofluid sealed MN: V640061

Part number: VG-STL006-NN

From €390.00

Details

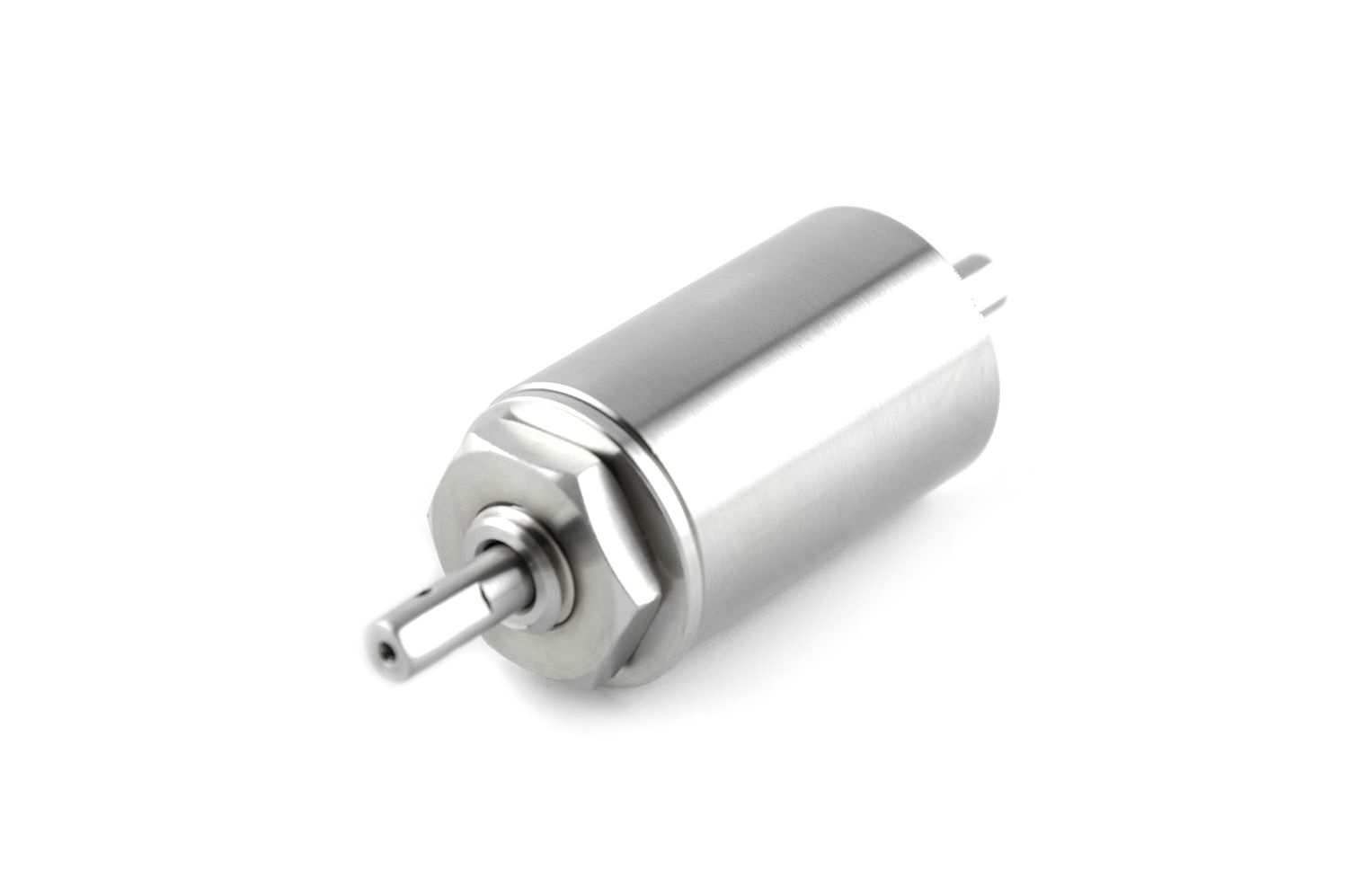

Vakuum-Drehdurchführung STL006-BS6A

Vacuum Rotary Feedthrough STL006-BS6A Ferrofluid-sealed; 1x 2 mm cross hole in shaft compatible to RIGAKU RMS-BS-6

Part number: VG-STL006-BS6A

From €468.35

Details

Vakuumdrehdurchführung SNL008NF-KW

Vacuum Rotary Feedthrough SNL008NF-KW Drawing No.: CCW15-30.01.02:15-00 Ferrofluid sealed Shaft outer diameter: 8 mm groove 2x16 on base flange side with feather-key DIN6885-A 2x2x16 groove 2x12 on atmosphere side with feather-key DIN6885-A 2x2x12 frontal thread M3 - 6/9 mounting thread M26x1,5, length of thread 30 mm PFPE-based FerroFluid

Part number: VG-SNL008NF-KW

From €360.00

Details
