Liners
BeamTec provides a wide selection of crucible liners for electron beam
sources. Crucible liners are used to increase evaporation rates by
reducing heat transfer between the evaporant material and the
water-cooled crucible. They also allow particulate free pocket
replenishment and eliminate the risk of contamination when one material
replaces another in a given pocket. The liners are available for most
typical evaporators and hearth configurations. Please ask for details if you do not find your liner in our list. We certainly can supply you with the right product.

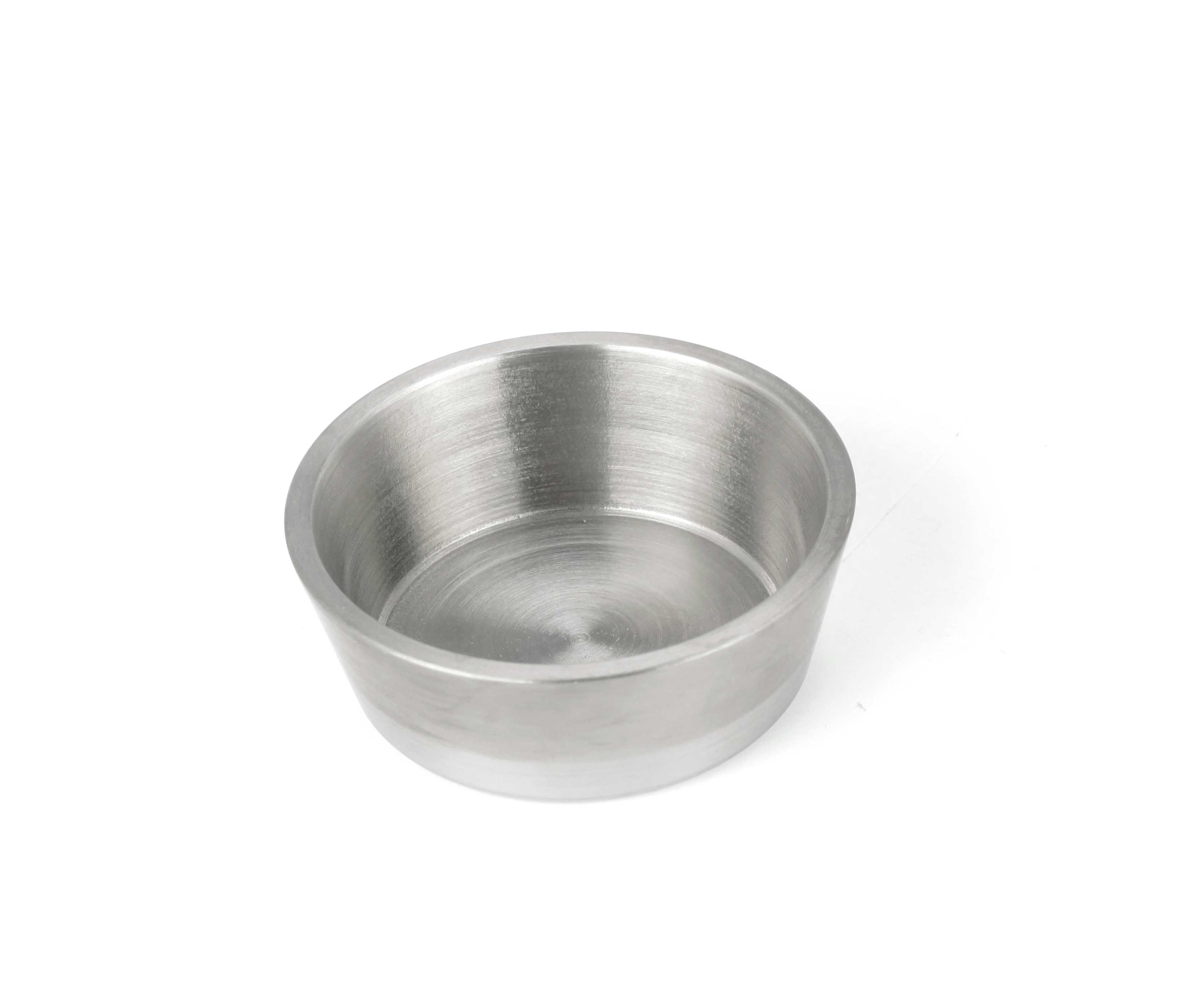

Liner Molybdenum, 7 cm³
Regular price:
From
€69.00
Liner Molybdenum, 7 cm³
Top Diameter A: 29,6 mm (1.167")
Height B: 14,3 mm (0.563")
Wall Thickness C: 2,36 mm (0.093")
Angle: 15°
Part number:
21007-MO

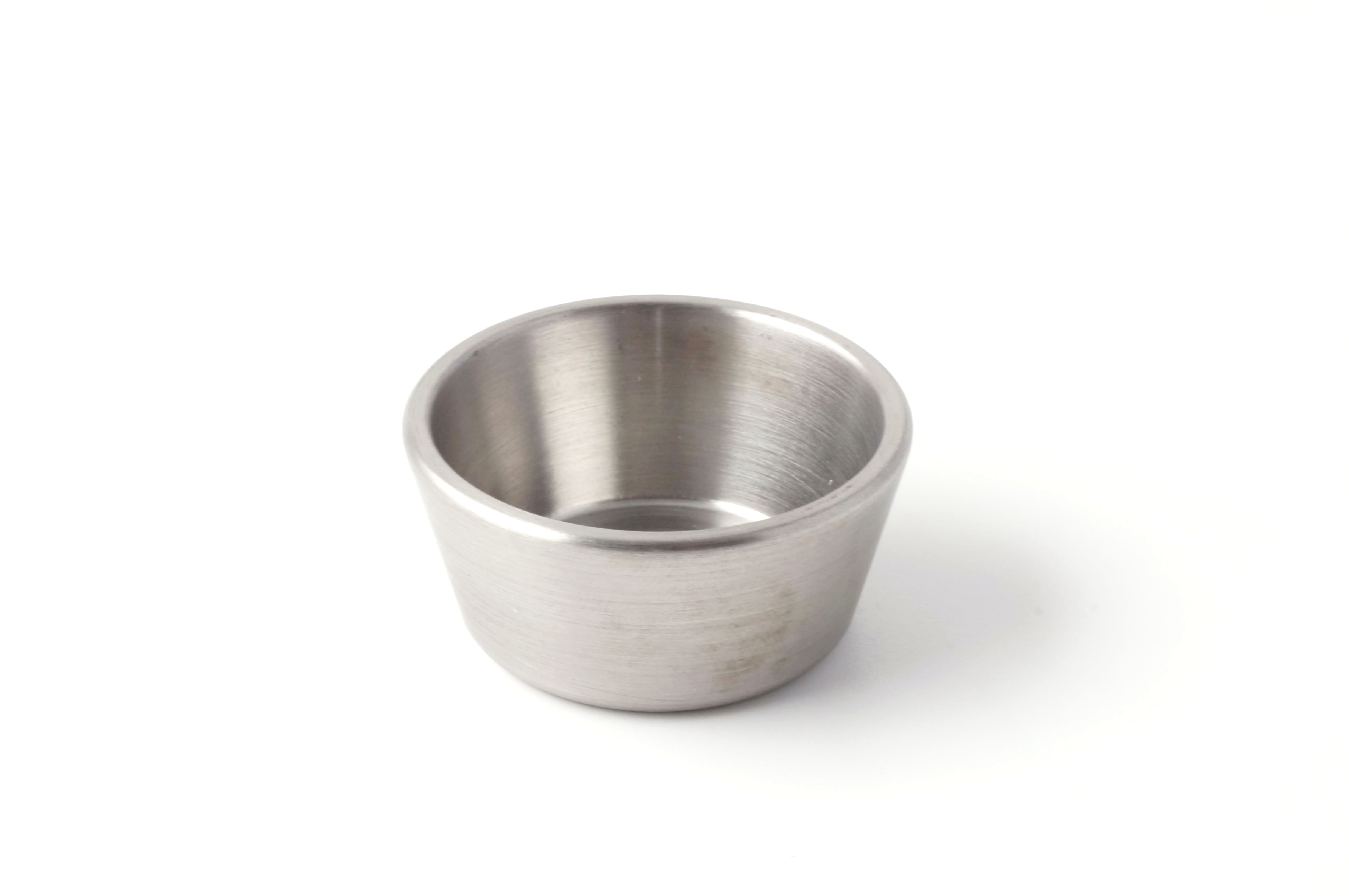

Liner Molybdenum, 8 cm³
Regular price:
From
€69.00
Liner Molybdenum, 8 cm³version 2: 43° rim
Part number:
21008-MO-2

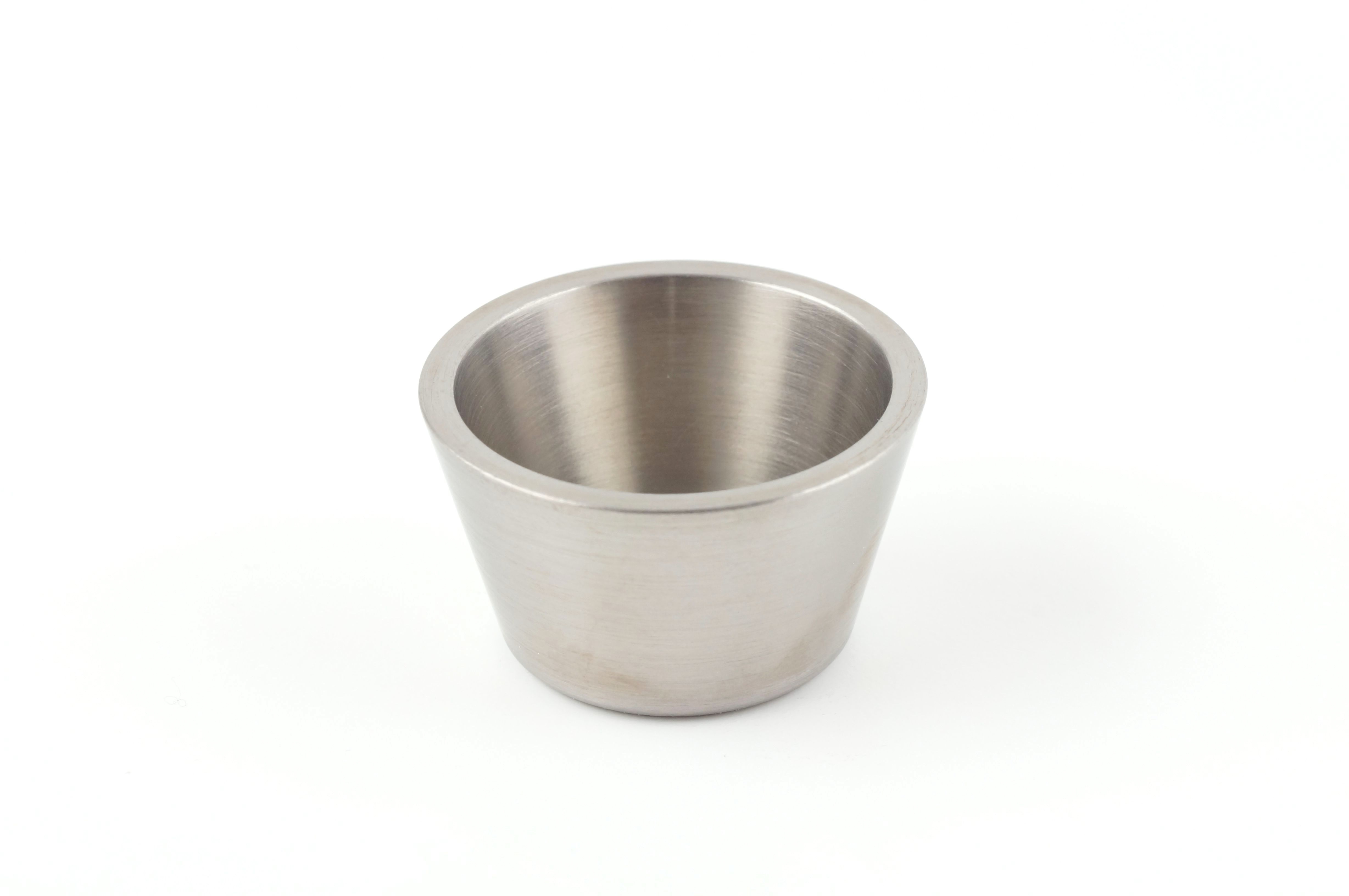

Liner Molybdenum, 8 cm³
Regular price:
From
€69.00
Liner Molybdenum, 8 cm³
Top Diameter: 30.0 mm
Height: 15 mm
Wall Thickness: 2,4 mm
Angle: 15°
Part number:
21008-MO

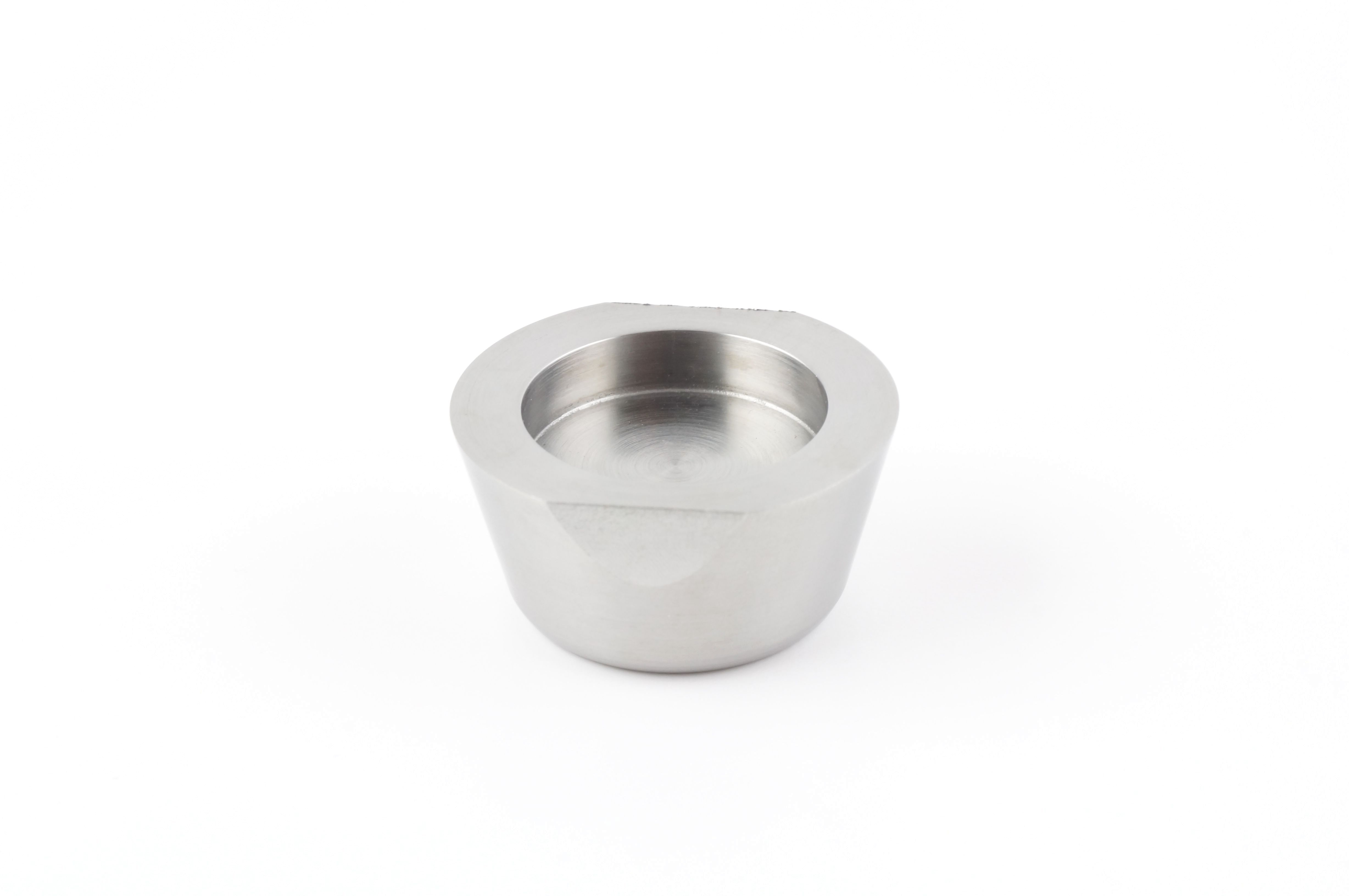

Liner Molybdenum, 8 cm³ - RevB
Regular price:
€101.00
Liner Molybdenum, 8 cm³ - RevB
reduced to 1,3 cm³
upper diameter: 30 mm
height: 15 mm
inner diameter: 20,5 mm
depth: 4,85 mm
Part number:
21008-02B-MO

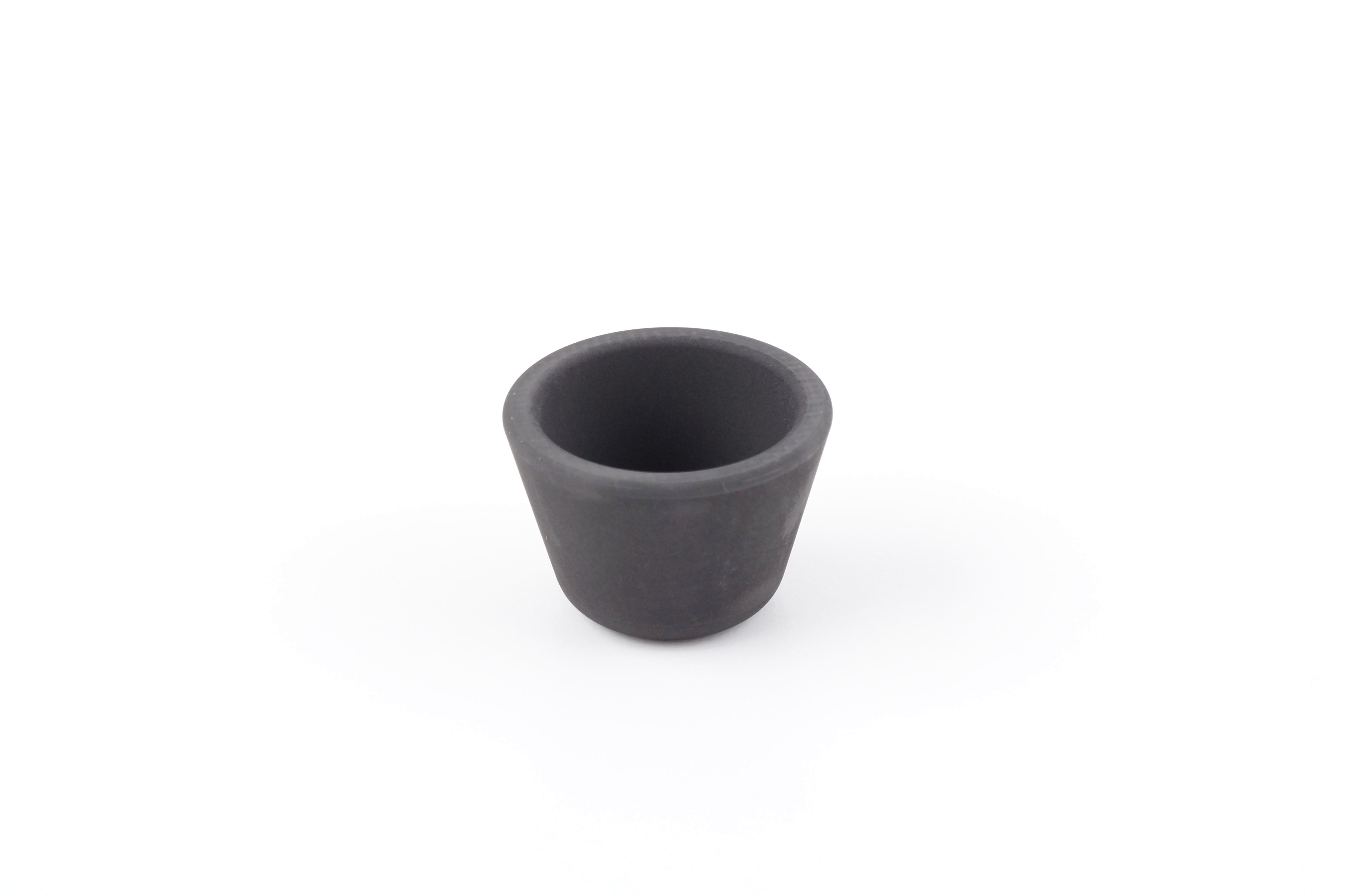

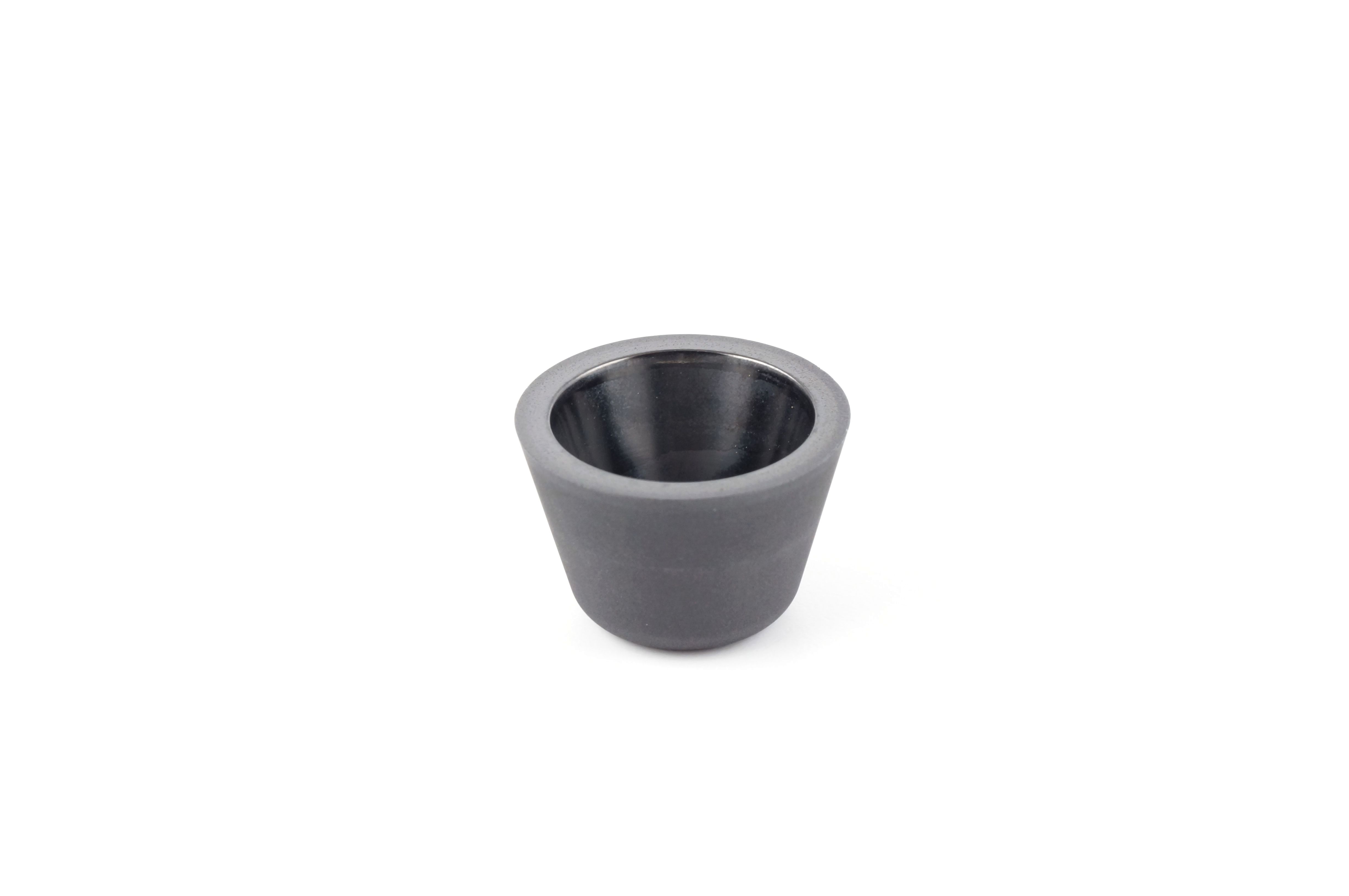

Liner POCO Graphite 4 cm³
Regular price:
€73.75
Liner POCO Graphite 4 cm³
Top diameter A: 22,5 mm
Height B: 15 mm
Wall thickness C: 2,36 mm
Cone: 15°
Part number:
21004-PC

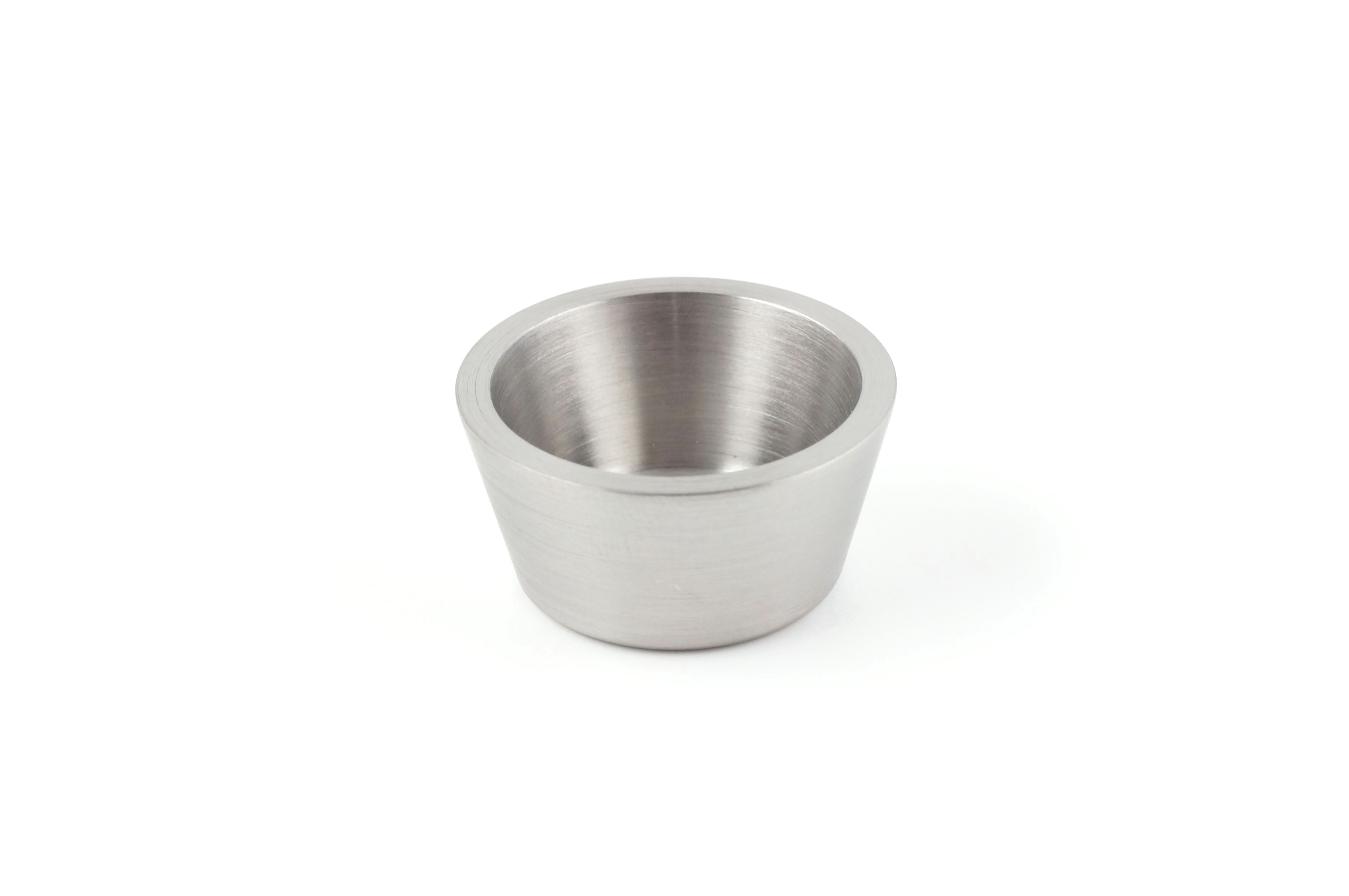

Liner Tungsten, 12 cm³
Regular price:
€175.00
Liner Tungsten, 12 cm³
EB M-8, 8-crucible-configuration
Top Diameter: 34,0 mm
Height: 19,5 mm
Wall Thickness: 2,4 mm
Cone: 15°
Part number:
21012-W

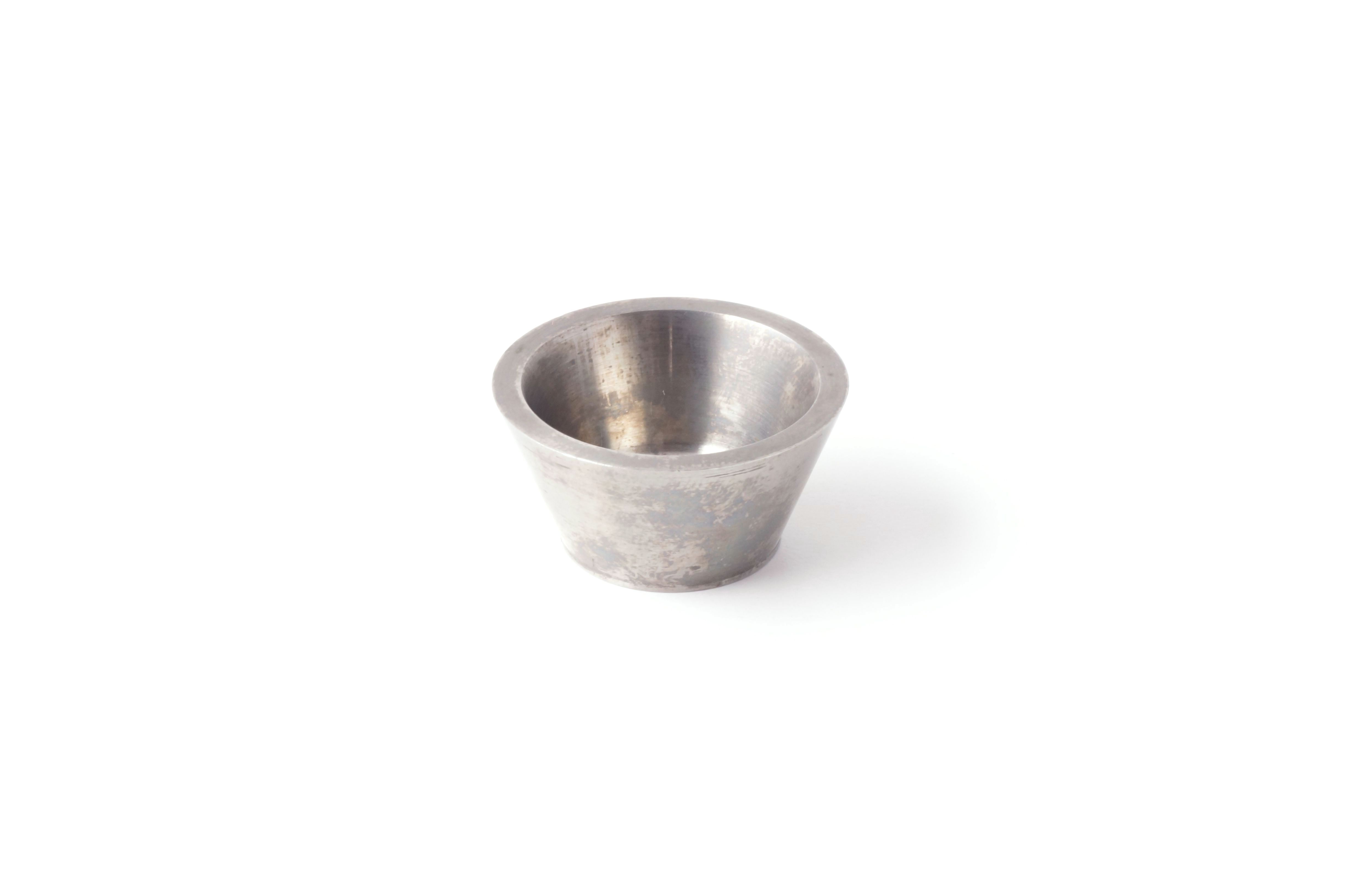

Liner Tungsten, 15 cm³
Regular price:
€175.00
Liner Tungsten 15 cm³
Top Diameter A: 37,6 mm (1.480 in)
Height B: 17,0 mm (0.670 in)
Wall Thickness C: 2,36 mm (0.093 in)
Half Cone Angle: 15°
Part number:
21015-W

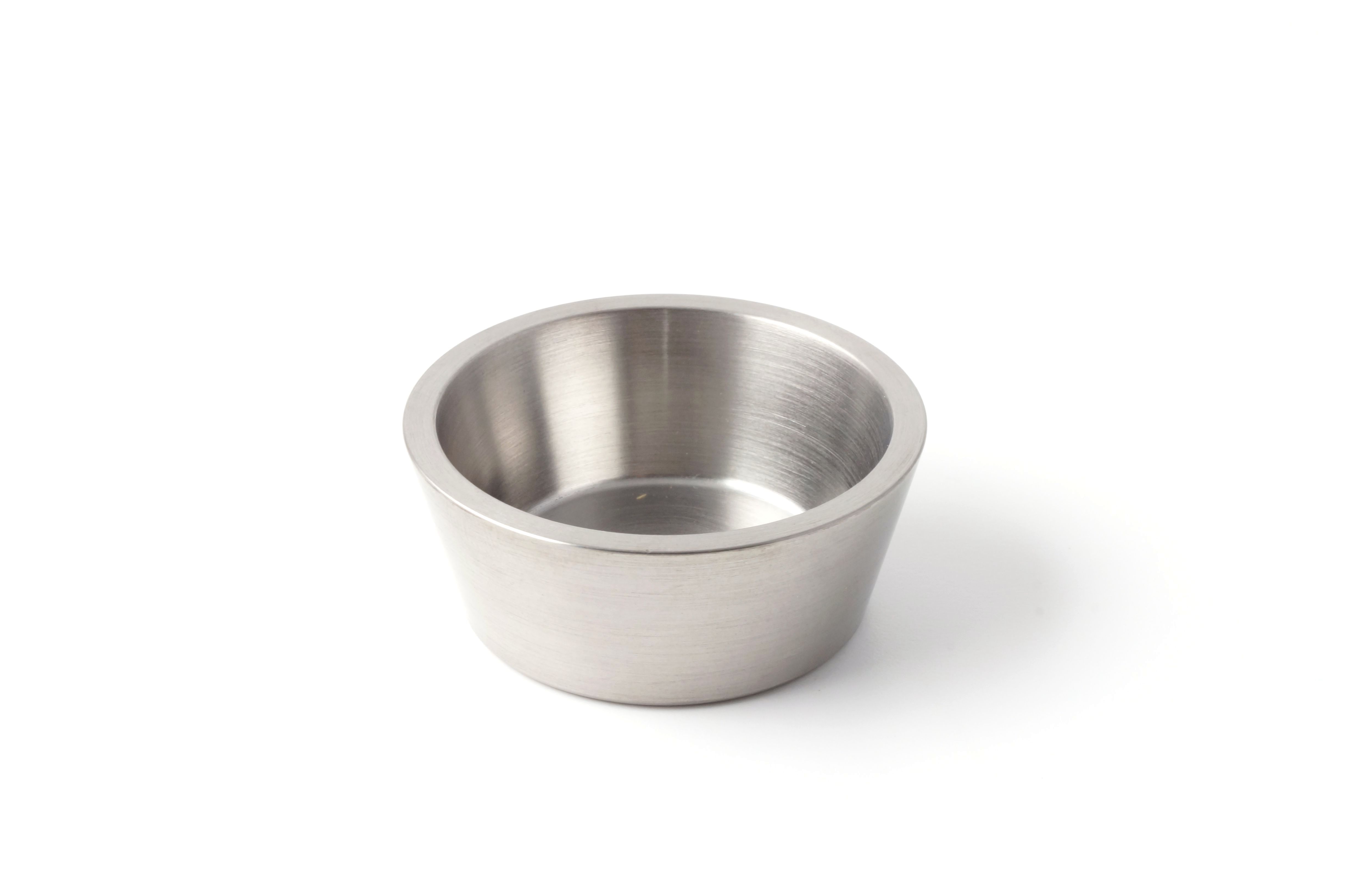

Liner Tungsten, 20 cm³
Regular price:
€195.00
Liner Tungsten, 20 cm³
Top Diameter: 42.5 mm
Height: 19.5 mm
Wall Thickness: 3,2 mm
Cone: 15°
Part number:
21020-W

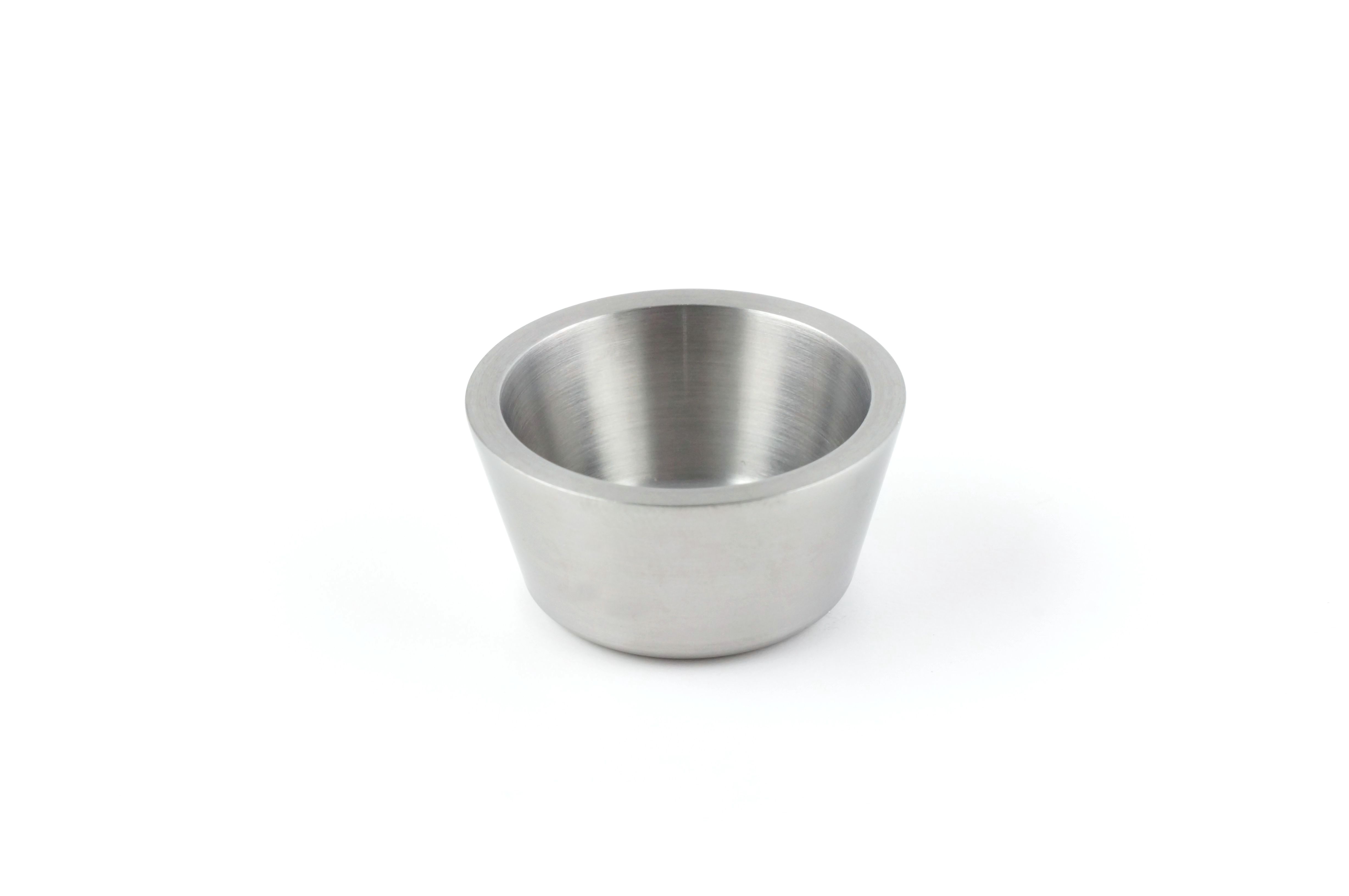

Liner Tungsten, 30 cm³
Regular price:
€250.00
Liner Tungsten, 30 cm³
Top diameter: 1.920"
Height: 0.790"
Wall thickness: 0.125"
Angle: 15°
Fil-Tech PN: EC0030-2
Part number:
21030-T-W

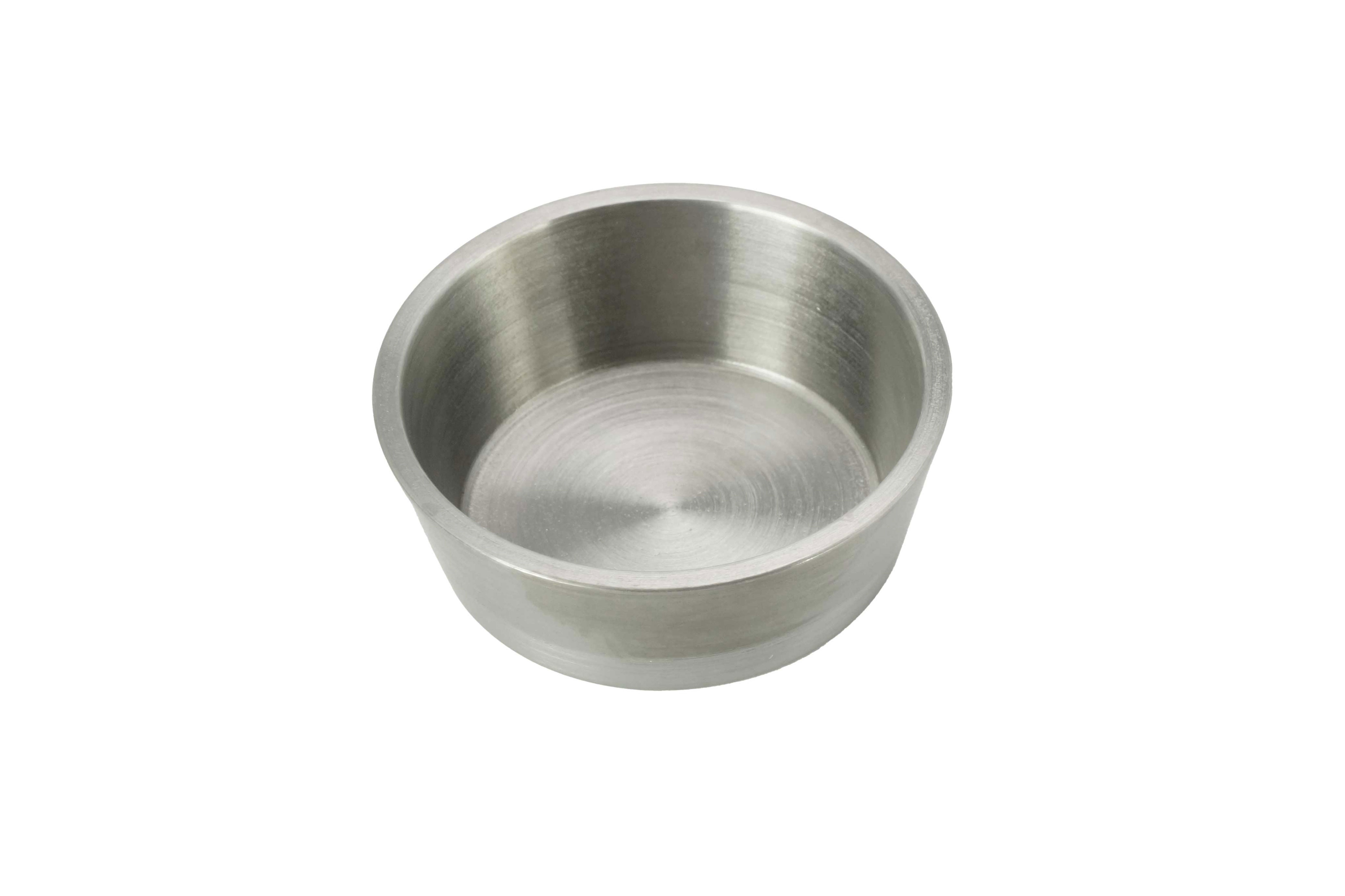

Liner Tungsten, 35 cm³
Regular price:
€320.00
Liner Tungsten 35 cm³
for Ferrotec / SmartBeam EV/EB M-8 Evaporator
Top diameter A: 53,0 mm
Height B: 19,5 mm
Wall Thickness C: 2,5 mm
Angle: 15°
Part number:
21035-W

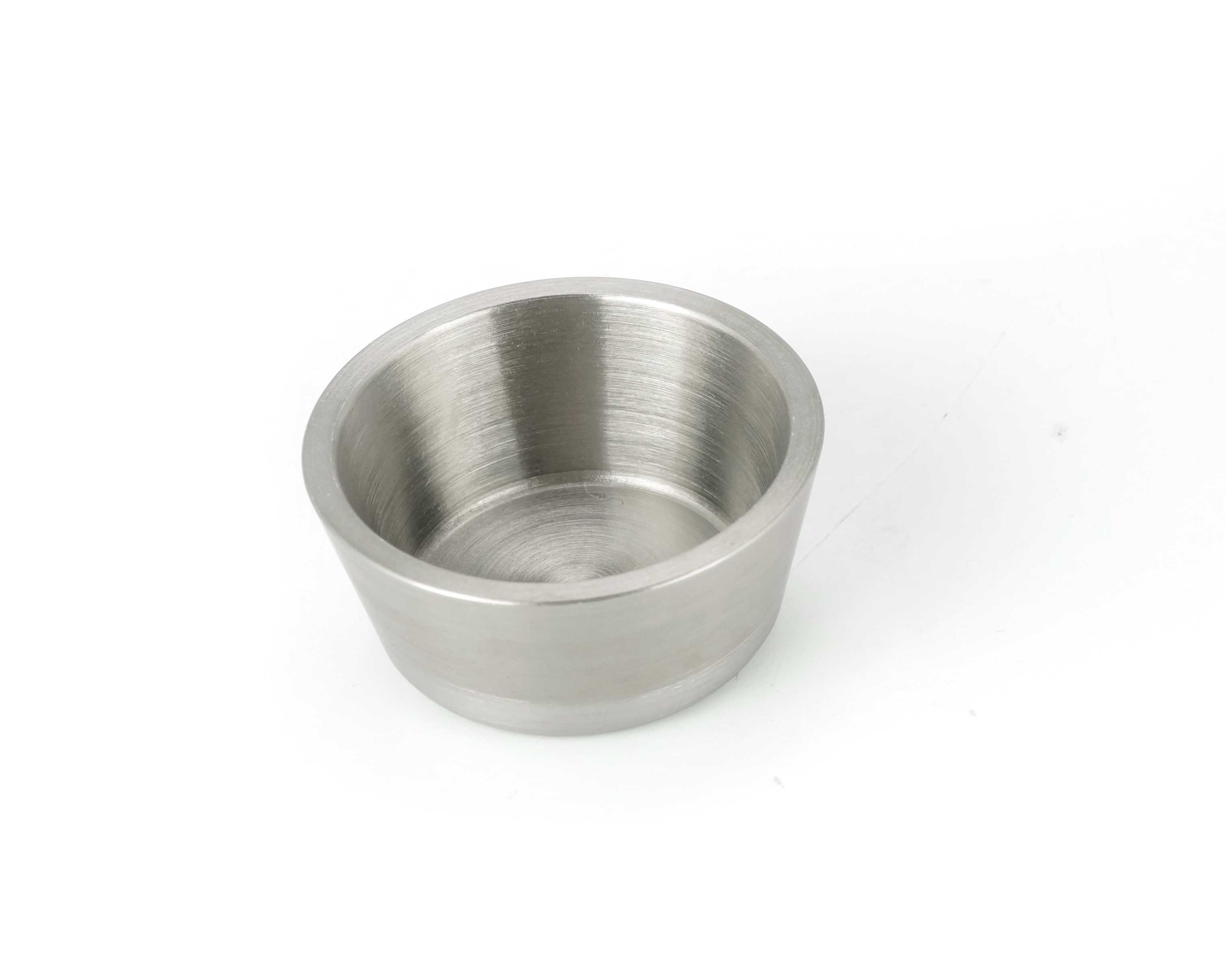

Liner Tungsten, 40 cm³
Regular price:
€290.00
Liner Tungsten, 40 cm³
for Telemark/Temescal evaporators
Top diameter:2.030 in (51,5 mm)
Height:1.020 in (25,9 mm)
Wall thickness:0.125 (3,1 mm)
Angle:15°
Part number:
21040-W

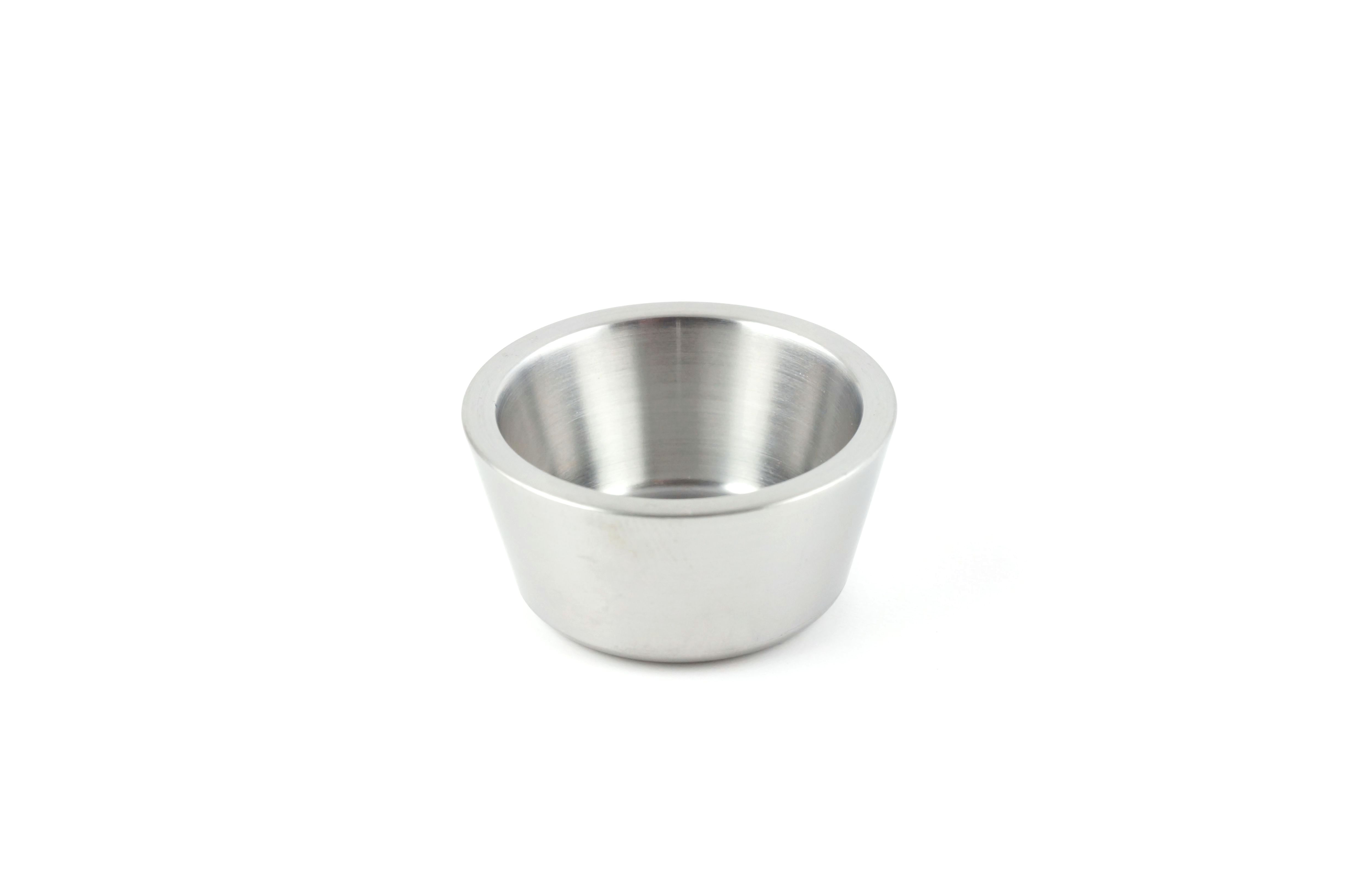

Liner Tungsten, 8 cm³
Regular price:
From
€150.00
Liner Tungsten, 8 cm³
Top diameter: 30.0 mm
Height: 15.0 mm
Wall thickness: 2.4 mm
Cone: 15°
Part number:
21008-W

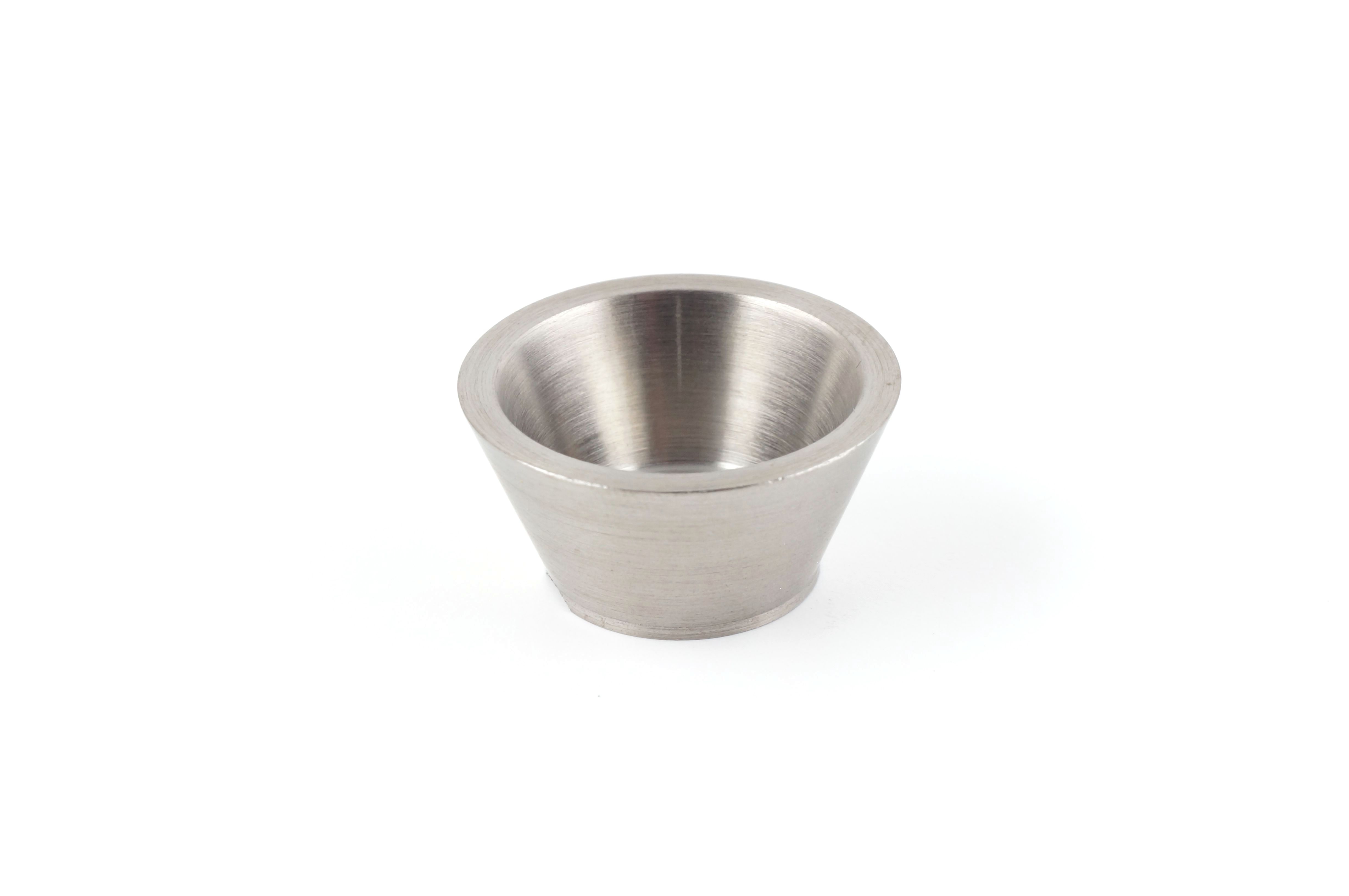

Liner Tungsten, 8 cm³
Regular price:
€165.00
Liner Tungsten, 8 cm³
Top diameter: 30.0 mm
Height: 15.0 mm
Wall thickness: 2.4 mm
Version 2: 43° with rim
Part number:
21008-W-2

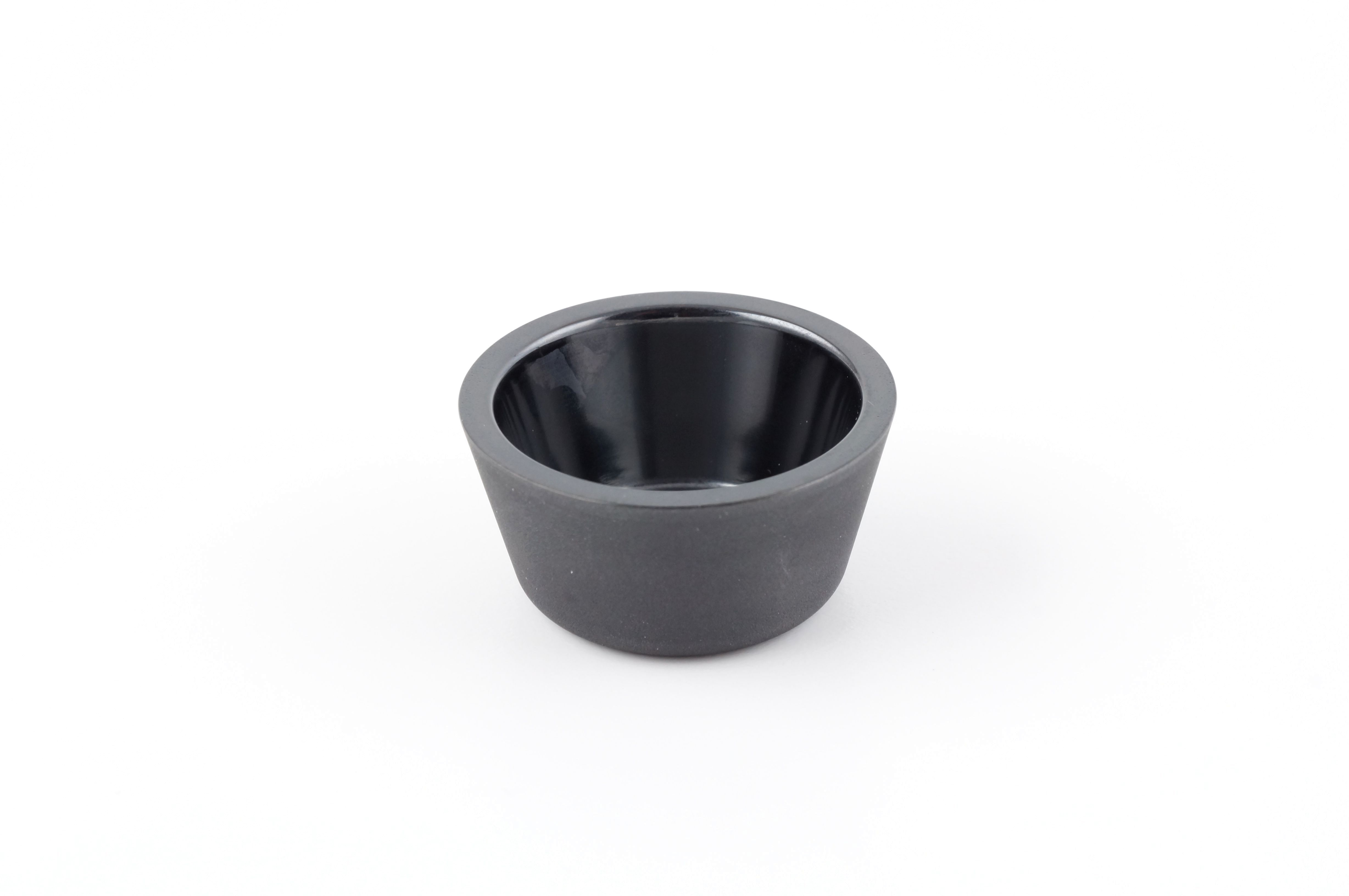

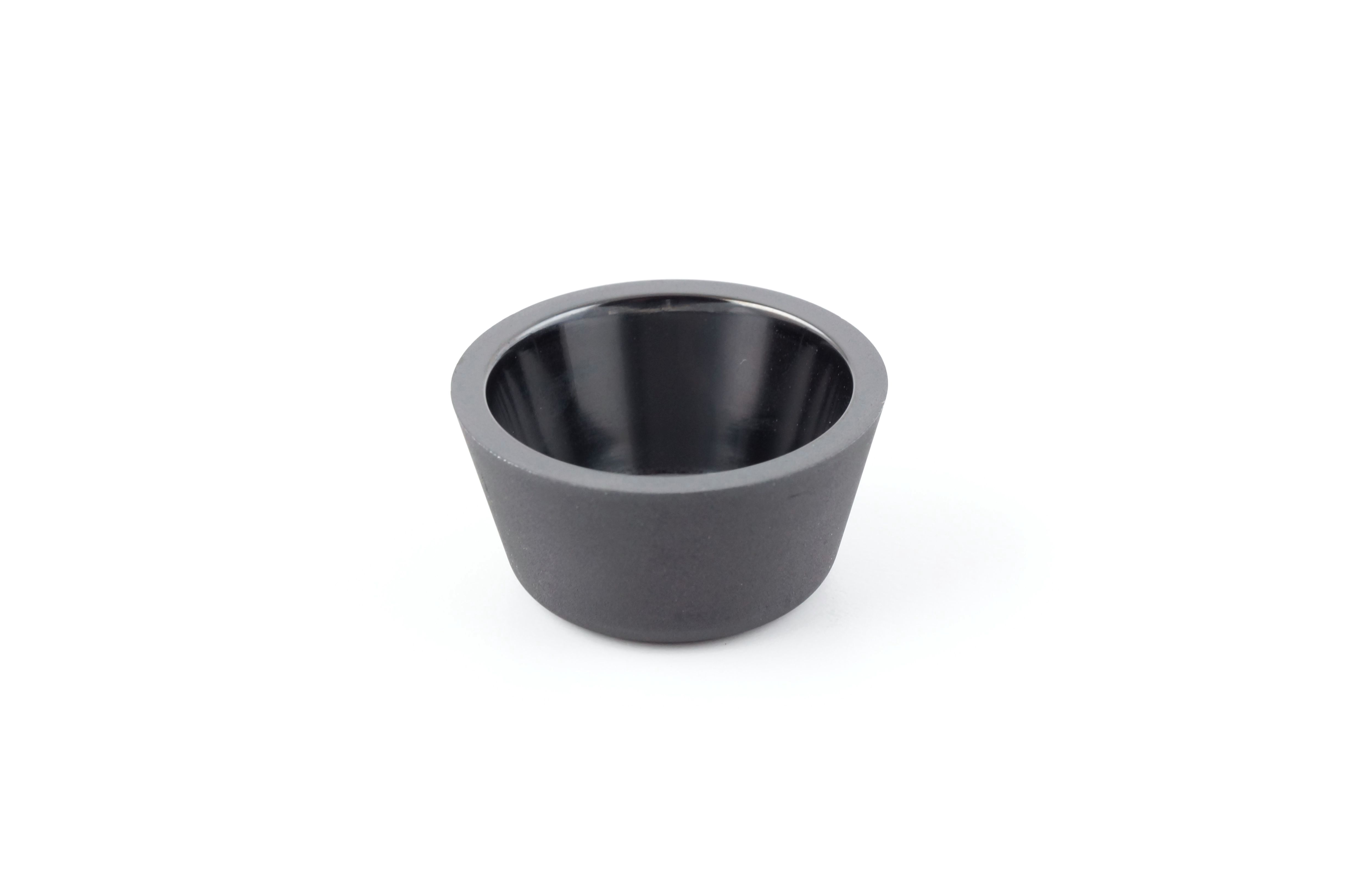

Liner vitreous carbon, 8 cm³
Regular price:
€290.00
Liner Vitreous Carbon, 8 cm³
Top diameter: 29.6 mm
Height: 14.3 mm
Wall Thickness: 2.36 mm
Half Cone Angle: 15°
Part number:
21008-VC
Reducing Liner Copper 40 cm³ to 20 cm³
Regular price:
€250.00
Reducing Liner Copper 40 cm³ to 20 cm³
fitting for Ferrotec 40 cm³ crucible
for liner of 20 cm³ (ø 42,5 x 19,5 mm)
Part number:
21040-20-F-CU
Reducing Liner Copper 40 cm³ to 4 cm³
Regular price:
€250.00
Reducing Liner Copper 40 cm³ to 4 cm³suitable for Ferrotec 40 cm³ crucible
for insert of 4 cm³ liner (ø 22,5 x 15)
Part number:
21040-04-F-CU
Reducing Liner Copper 6 cm³ to 4 cm³
Regular price:
€140.00
Reducing Liner Copper 6 cm³ to 4 cm³
for use of standard 4 cm³ liners
Part number:
21006-04-CU
Reducing Liner, Copper 20 cm³ --> 8 cm³
Regular price:
€145.00
Reducing Liner, Copper 20 cm³ --> 8 cm³
for Ferrotec EB M-8, 6 hearths configuration
inner volume: 8 cm³
top diameter: 30 mm
height: 15 mm
outer geometry for 6x 20 cc EVM8 crucible (OD 42 depth 19.5 mm angle 15°)
inner geometry for standard 8 cc (ID 30.0mm depth 15.0 mm: angle 15°)
Part number:
21020-08-CU
Reducing Liner, Copper, 20 cm³ --> 4 cm³
Regular price:
€140.00
Reducing Liner, Copper, 20 cm³ --> 4 cm³
Inner volume: 4 cm³
Upper outer diameter: 22,5 mm
Height: 15 mm
Part number:
21020-04-CU
