Liners
BeamTec provides a wide selection of crucible liners for electron beam
sources. Crucible liners are used to increase evaporation rates by
reducing heat transfer between the evaporant material and the
water-cooled crucible. They also allow particulate free pocket
replenishment and eliminate the risk of contamination when one material
replaces another in a given pocket. The liners are available for most
typical evaporators and hearth configurations. Please ask for details if you do not find your liner in our list. We certainly can supply you with the right product.
Liner Molybdenum, 100 cm³
Regular price:
From
€216.90

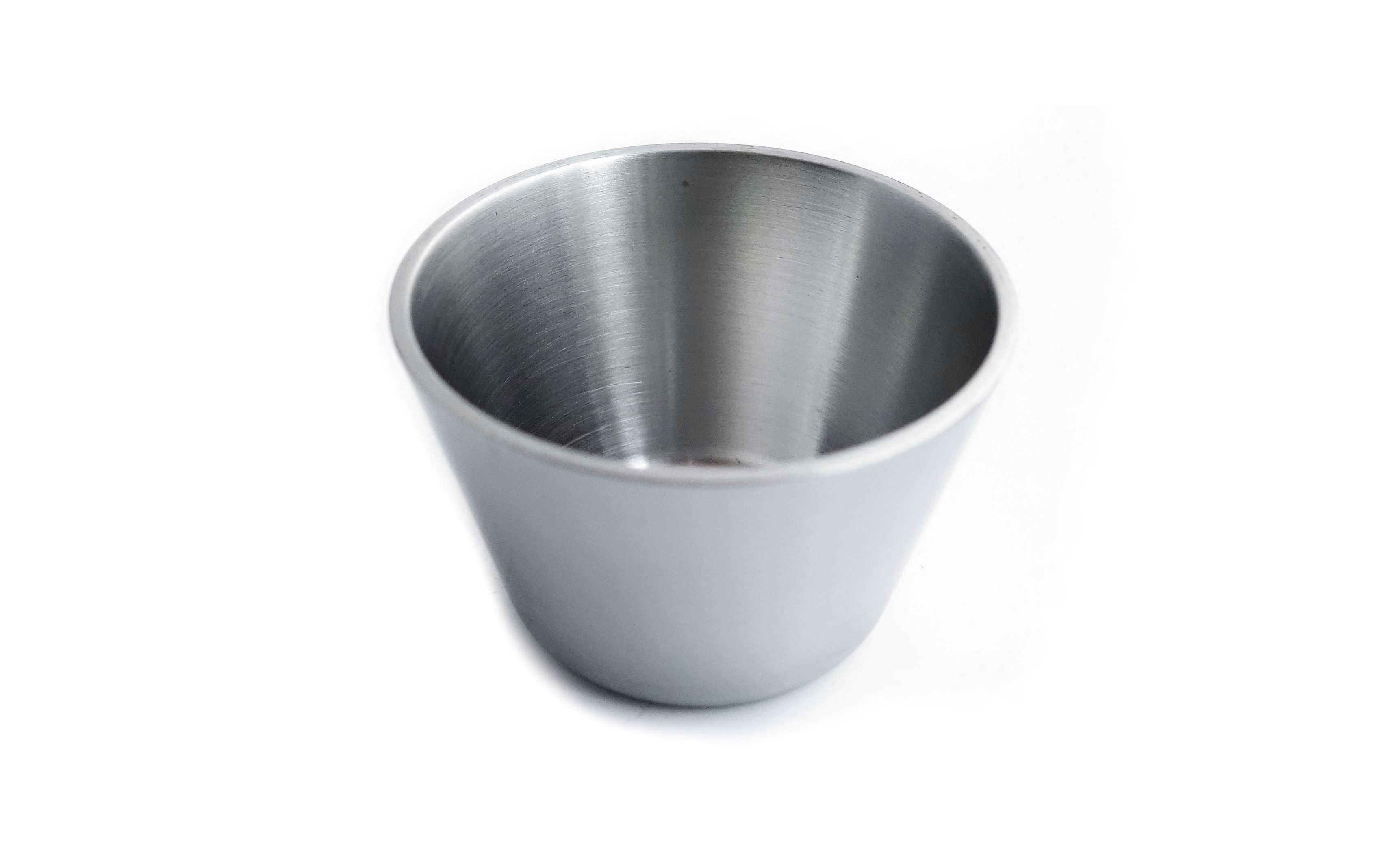

Liner Molybdenum, 100 cm³
for Telemark Evaporator, Ferrotec EV 1-100
Top diameter: 68,6 mm
Height: 37,3 mm
Cone: 15°
Wall thickness: 5 mm
Part number:
21100T5-MO

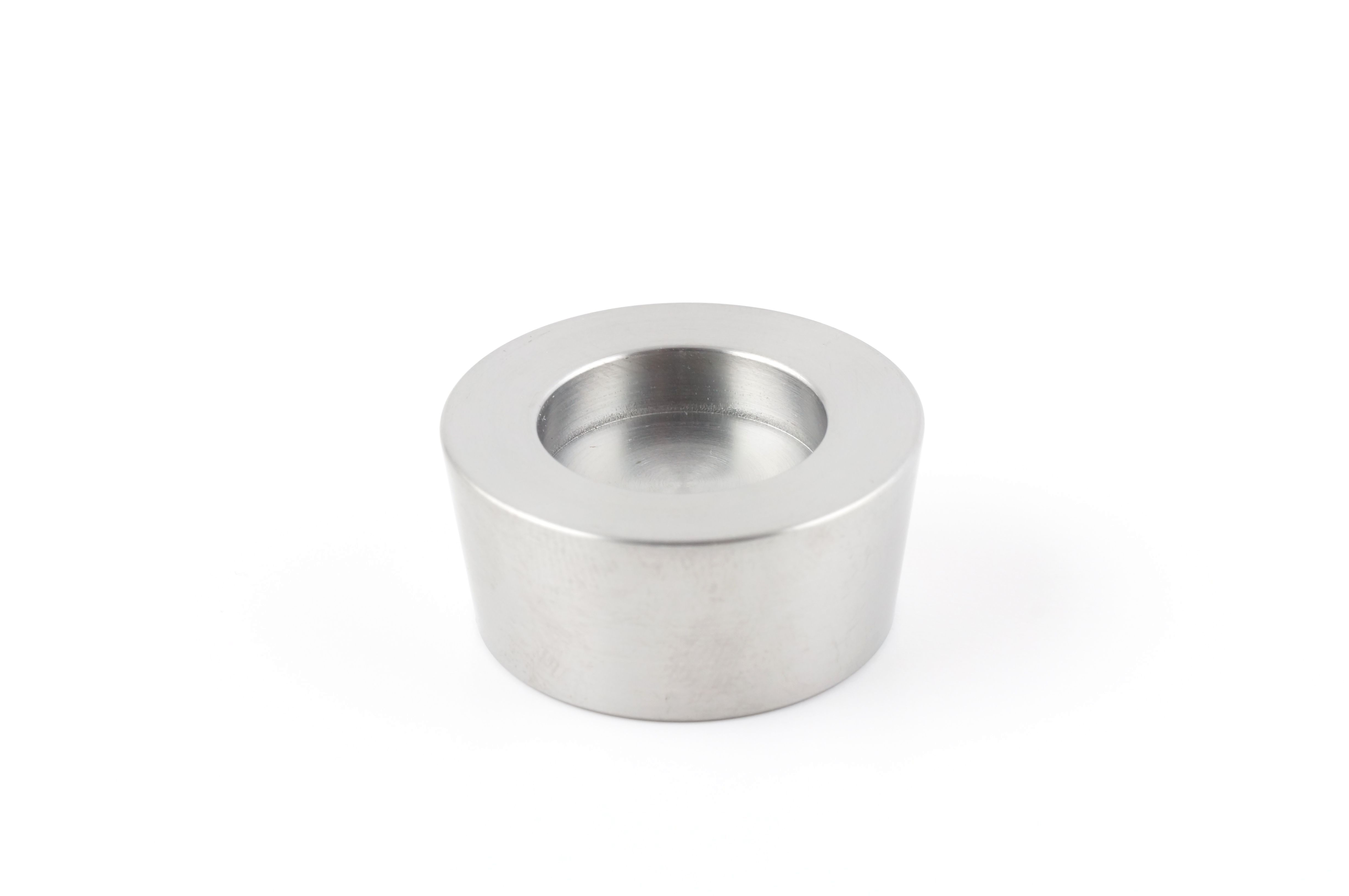

Liner Molybdenum, 11 cm³ - cyl. cut out
Regular price:
€103.00
Liner Molybdenum,11 cm³ - cyl. cutout
top diameter:32.5 mm
bottom diameter:28.5 mm
height:15.1 mm
inner diameter:19.1 mm
depth:5 mm
Part number:
21011-C19-MO
Liner Molybdenum, 12 cm³
Regular price:
€113.00
Liner Molybdenum, 12 cm³
Top diameter A: 33,5 mm
Inner diameter: 11,5 mm
Height B: 19,4 mm
Part number:
21012-Z11-MO
Liner Molybdenum, 12 cm³
Regular price:
From
€65.00

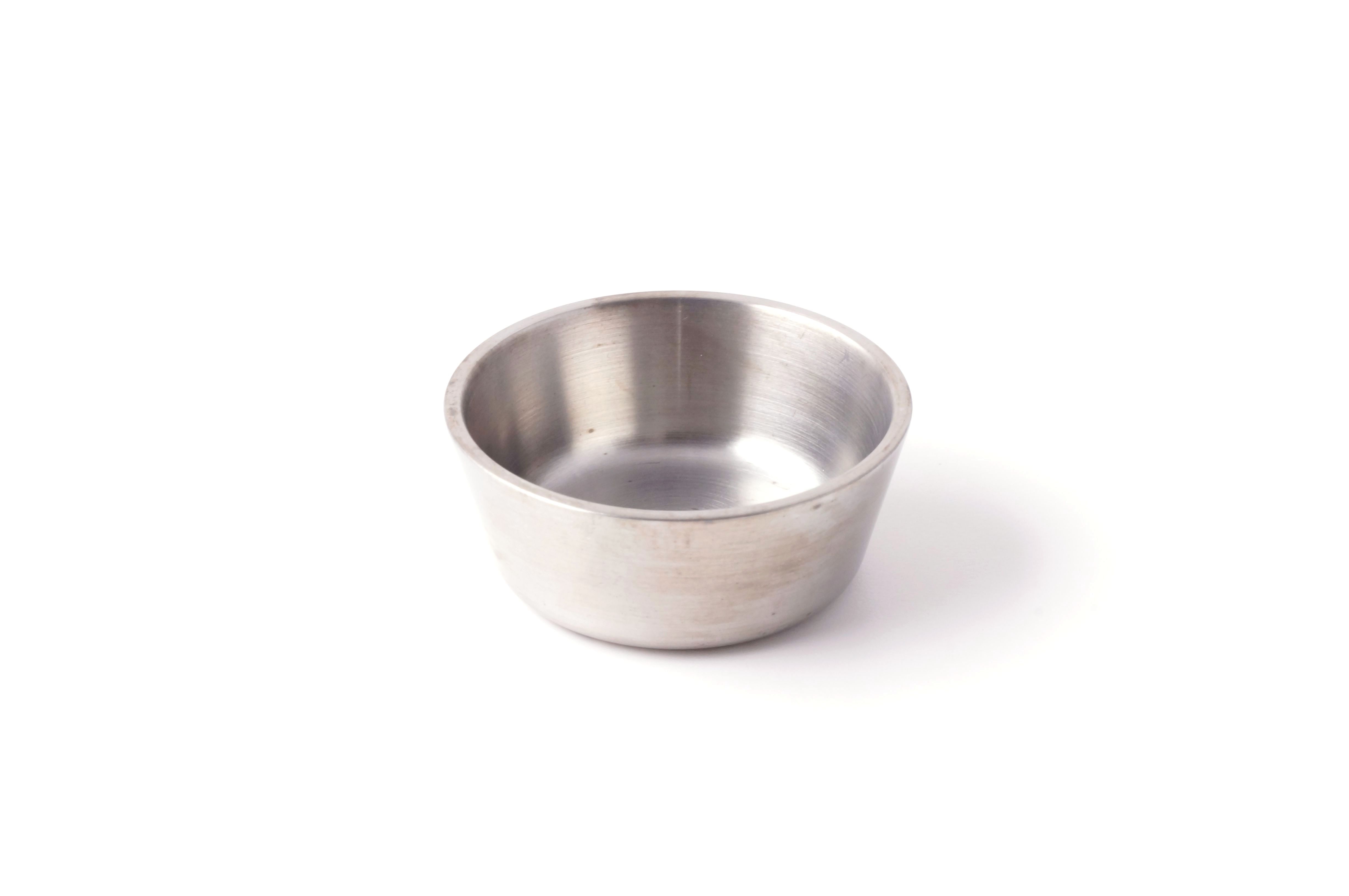

Liner Molybdenum, 12 cm³
Top diameter: 34 mm (1.340 in)
Height: 19,5 mm (0.768 in)
Wall thickness: 2,36 mm (0.093 in)
Part number:
21012-MO
Liner Molybdenum, 15 cm³
Regular price:
From
€101.70
Liner Molybdenum, 15 cm³
Top Diameter A: 37,6 mm
Height B: 17,0 mm
Wall Thickness C: 2,36 mm
Angle: 15°
Part number:
21015-MO
Liner Molybdenum, 15 cm³
Regular price:
€113.00
Liner Molybdenum, 15 cm³ - Thin Wall
for Telemark / Temescal evaporators
TD: 1.537" / 3,9 cm
H: 0.670" / 1,7 cm
Wall thickness: 0.070" / 0,18 cm
Bottom thickness: 0.100" / 0,254 cm
Part number:
21015-T2-MO
Liner Molybdenum, 15 cm³
Regular price:
€109.00
Liner Molybdenum, 15 cm³ - Thin Wall
for Telemark / Temescal evaporators
TOD: 1.537"
TID: 1.337"
H: 0.630"
Bottom thickness: 0.100"
Outer / Inner Angle: 15° / 12°
Part number:
21015-T3-MO
Liner Molybdenum, 2 cm³
Regular price:
From
€62.10
Liner Molybdenum, 2 cm³
Top diameter: 22,4 mm
Height: 9.2 mm
Wall Thickness: 2,4 mm
Angle: 15°
Part number:
21002-MO-1
Liner Molybdenum, 20 cm³
Regular price:
From
€132.00
Liner Molybdenum, 20 cm³
for Ferrotec EB M-8, 6 crucibles configuration
Top Diameter: 42,5 mm (1.673 in.)
Heigt: 19,5 mm (0.768 in.)
Wall Thickness: 2,36 mm (0.093 in.)
Cone: 15°
Part number:
21020-MO

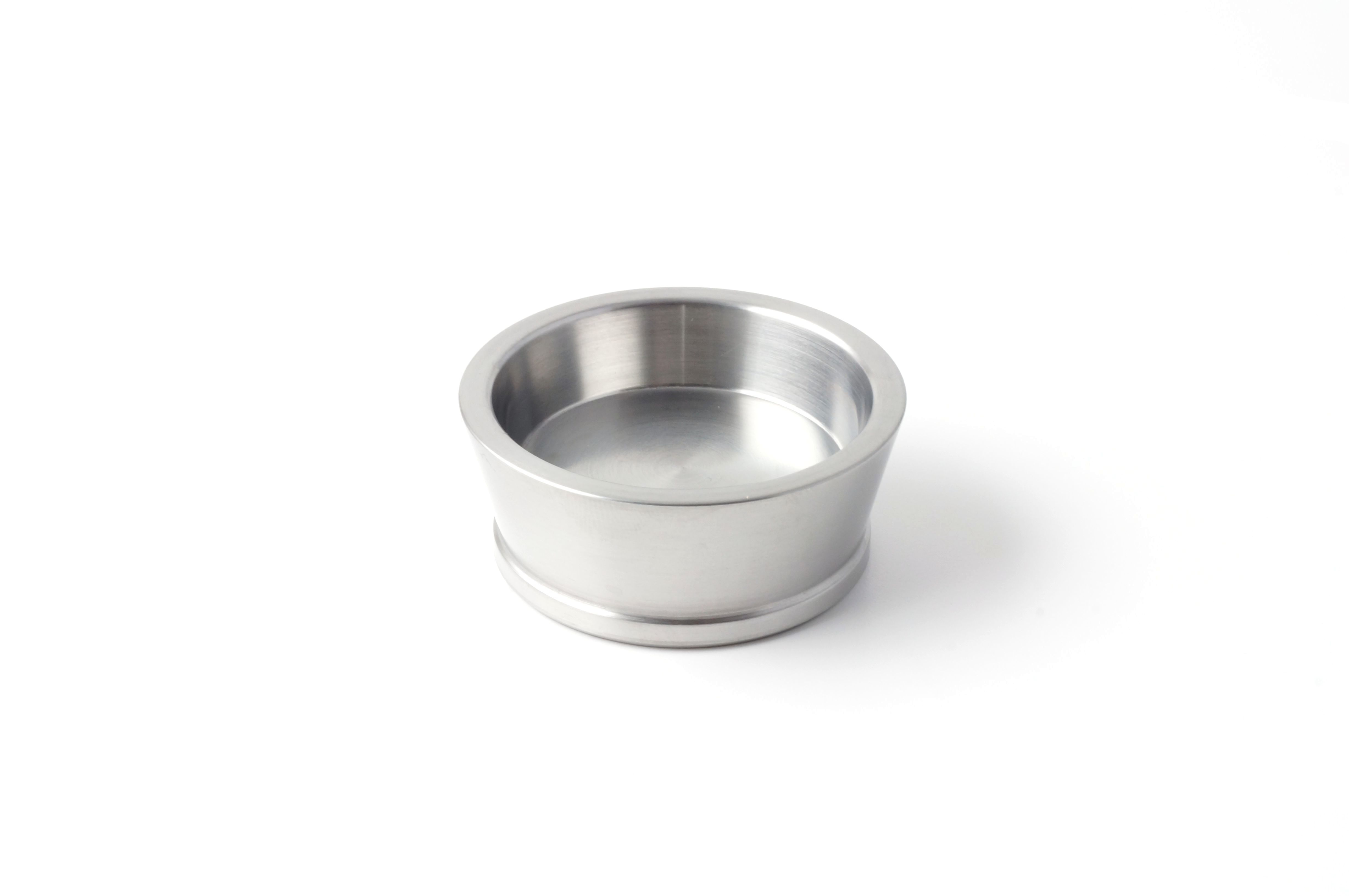

Liner Molybdenum, 25 cm³
Regular price:
From
€155.70
Liner Molybdenum 25cm³
for Leybold ESV
Top Diameter: 39.5 mm (+0, -0.2mm)
Height: 25.0 mm
Wall thickness: 1 mm
Angle: 15°
Outer Radius: 3 mm
Inner Radius: 1 mm
All other corners: radius 0.030"
Part number:
21025L-MO
Liner Molybdenum, 25 cm³
Regular price:
From
€155.70
Liner Molybdenum, 25 cm³
for Temescal Evaporators
top diameter A: 44,1 mm (1.74")
(bottom diameter: 35,0 mm - 1.38")
Height B: 17,0 mm (0.67")
Wall thickness C: 2,4 mm (0.093")
Cone: 15°
Part number:
21025-MO
Liner Molybdenum, 25 cm³
Regular price:
From
€155.70
Liner Molybdenum, 25 cm³
for Telemark Evaporator 6 x 25 cm³
Top diameter A: 41,5 mm (1.633")
Height B: 23,9 mm (0.940")
Wall Thickness C: 2,36 mm (0.093")
Cone: 15°
Fil-Tech part no.: EC6025-32
Part number:
21025-MO-2
Liner Molybdenum, 35 cm³
Regular price:
From
€129.60
Liner Molybdenum, 35 cm³
or Ferrotec EV M-8 Evaporator
Balzers configuration
ø 53,5 mm x 20 mm (inner height 17 mm)
Part number:
21035-MO-2
Liner Molybdenum, 35 cm³
Regular price:
From
€129.60
Liner Molybdenum, 35 cm³
Top diameter A: 53,0 mm
Height B: 19,5 mm
Wall Thickness C: 2,5 mm
Angle: 15°
Part number:
21035-MO
Liner Molybdenum, 35 cm³ - thermically decoupled
Regular price:
€167.00
Liner Molybdenum, 35 cm³ - thermically decoupled
ø 51,0 mm x 20,5 mm
Part number:
21035-5-MO
Liner Molybdenum, 35 cm³ reduced
Regular price:
From
€139.50
Liner Molybdenum, 35 cm³ reduced
according to drawing 21035-Sill
Part number:
21035-MO-SILL

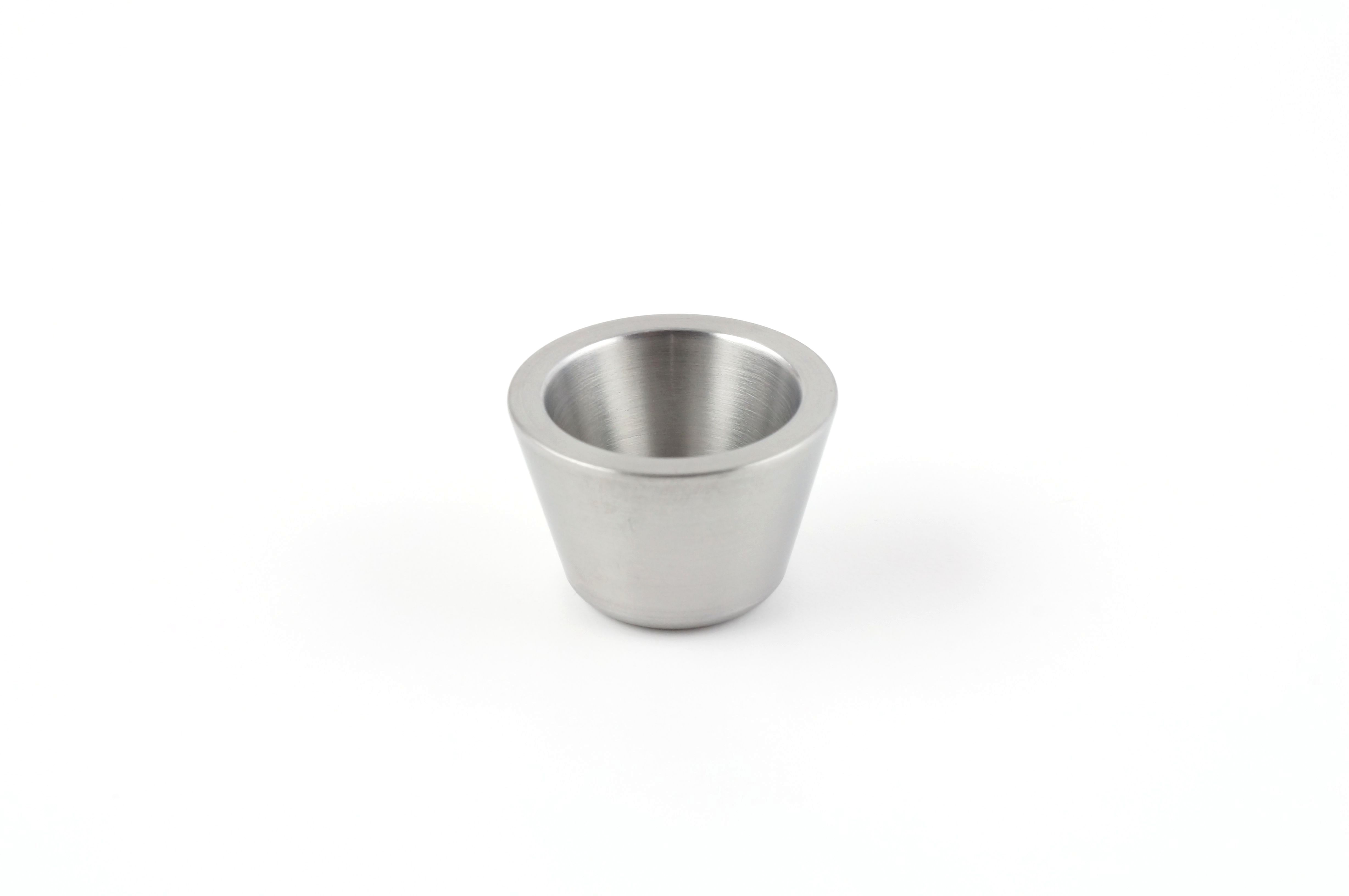

Liner Molybdenum, 4 cm³
Regular price:
From
€56.70
Liner Molybdenum, 4 cm³
Top diameter: 22.5 mm
Height: 15 mm
Wall thickness: 2.4 mm
Part number:
21004-MO

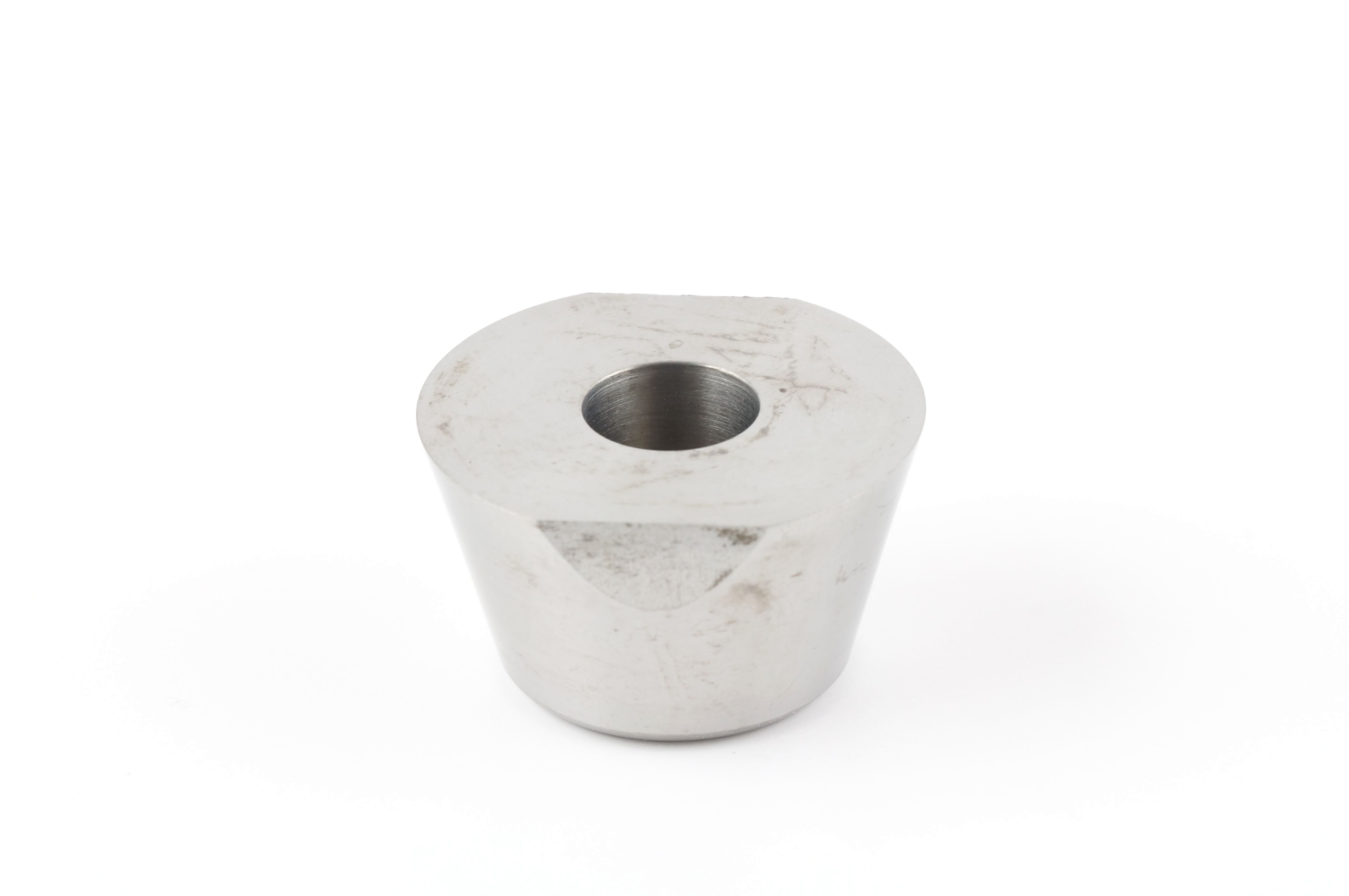

Liner Molybdenum, 4 cm³ - cyl. cut out
Regular price:
€63.00
Liner Molybdenum, 4 cm³ - cyl. cutout
reduced to 1,5 cm³
upper diameter:23.5 mm
height:10 mm
inner diameter:19 mm
depth:5 mm
Part number:
21004-02-MO
Liner Molybdenum, 40 cm³
Regular price:
€207.00
Liner Molybdenum, 40 cm³
for Ferrotec/Smartbeam
Outer diameter: 51,0 mm
Height: 20,5 mm with ledge
Wall thickness: 2,5 mm
Cone: 30°
Inner volume: 23 cm³
Part number:
21040-F-MO

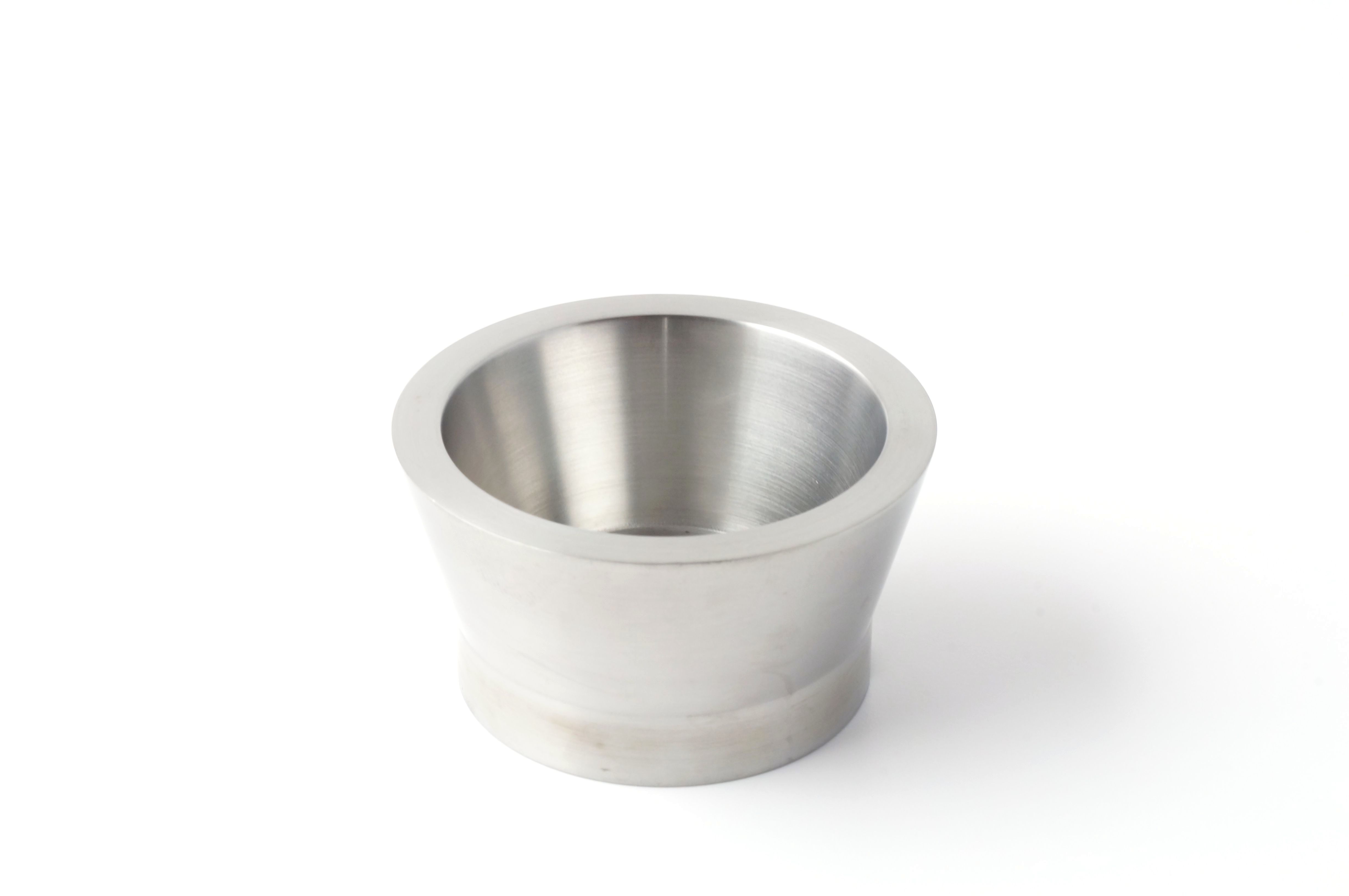

Liner Molybdenum, 40 cm³
Regular price:
€207.00
Liner Molybdenum, 40 cm³
for Telemark/Temescal evaporators
Top diameter: 51,5 mm (2.030 in)
Height: 25,9 mm (1.020 in)
Wall thickness: 3,1 mm (0.125 in)
Part number:
21040-T2-MO
Liner Molybdenum, 50 cm³
Regular price:
€207.00
Liner Molybdenum, 50 cm³
with ledge for ESQ212
Top diameter: 59,0 mm
Height: 23,0 mm
Wall thickness: 3 mm
Inner volume: 30 cm³
Part number:
21050-MO-1
Liner Molybdenum, 6 cm³
Regular price:
From
€98.10
Liner Molybdenum, 6 cm³
Top Diameter: 26,5 mm
Height: 15 mm
Wall Thickness: 2,4 mm
Angle: 15°
Part number:
21006-MO
Liner Molybdenum, 6 cm³ - RevB
Regular price:
From
€92.70
Liner Molybdenum, 6 cm³ - RevB
reduced to 1,3 cm³
upper diameter: 26.5 mm
height: 15 mm
inner diameter: 20,5 mm
depth: 4,85 mm
Part number:
21006-02B-MO
Liner Molybdenum, 60 cm³
Regular price:
€207.00
Liner Molybdenum, 60 cm³
with ledge
Top diameter: 55,0 mm
Height: 30,0 mm
Wall thickness: 5 mm
Part number:
21060-MO-3
